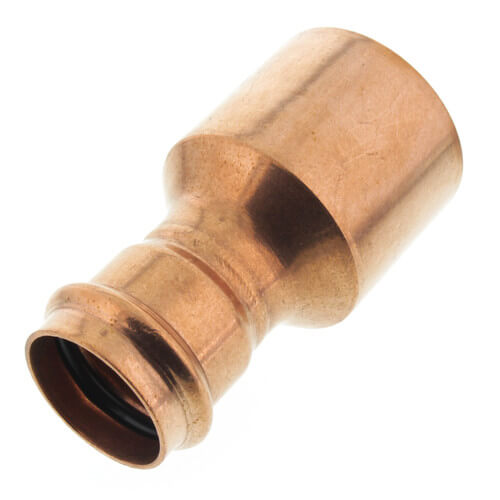

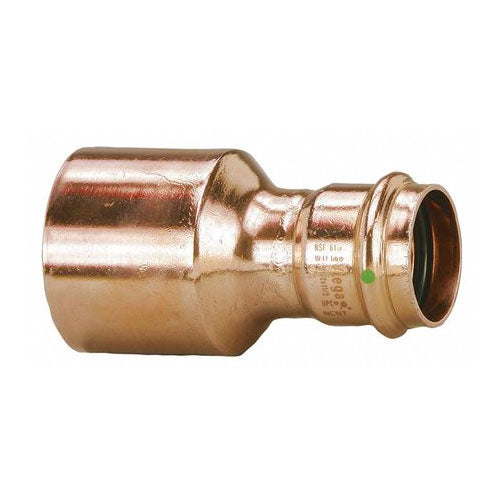

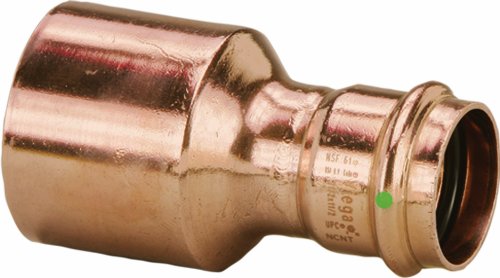

Viega 20813 ProPress XL-C Copper Reducer 2-1/2-Inch x 1-1/2-Inch FTG x Press

Product Description

The Viega 20813 ProPress XL-C Copper Reducer features a durable copper construction for reliable performance. It connects 2-1/2-inch copper tubing to 1-1/2-inch tubing using a ProPress connection, ensuring easy and quick installation.

• Quick and secure ProPress connection
• Compatible with ASTM B88 tubing
• Rated for 200 PSI and temperatures up to 250 degrees Fahrenheit

Product Highlights

This copper reducer is ideal for connecting different sizes of copper tubing in plumbing systems. It features the patented Viega Smart Connect technology, allowing for wet connections and reducing installation time.

Product Information

Standard Information

• Application: Fire Sprinkler, Chilled Water, Hydronic Heating, Low Pressure Steam, Compressed Air, Potable Water, Non-medical Gas, Vacuum
• Material: Copper

Technical Specifications

• MPN: 20813
• Size: 2-1/2 Inch x 1-1/2 Inch
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 degrees Fahrenheit
• End Connection: Male Soldered x ProPress XL-C
• Standards: UL, CSA MSE-13, ABS, CRN 0A14541.5 A/B/C, FM 1920, IAPMO PS117, ICC-ES PMG-1037, NSF/ANSI 61/372, PHCC, ULC/ORD 213, NFPA 13/13D/13R, ICC LC 1002, ASME B16.51
• Includes EPDM Sealing Element: Yes
