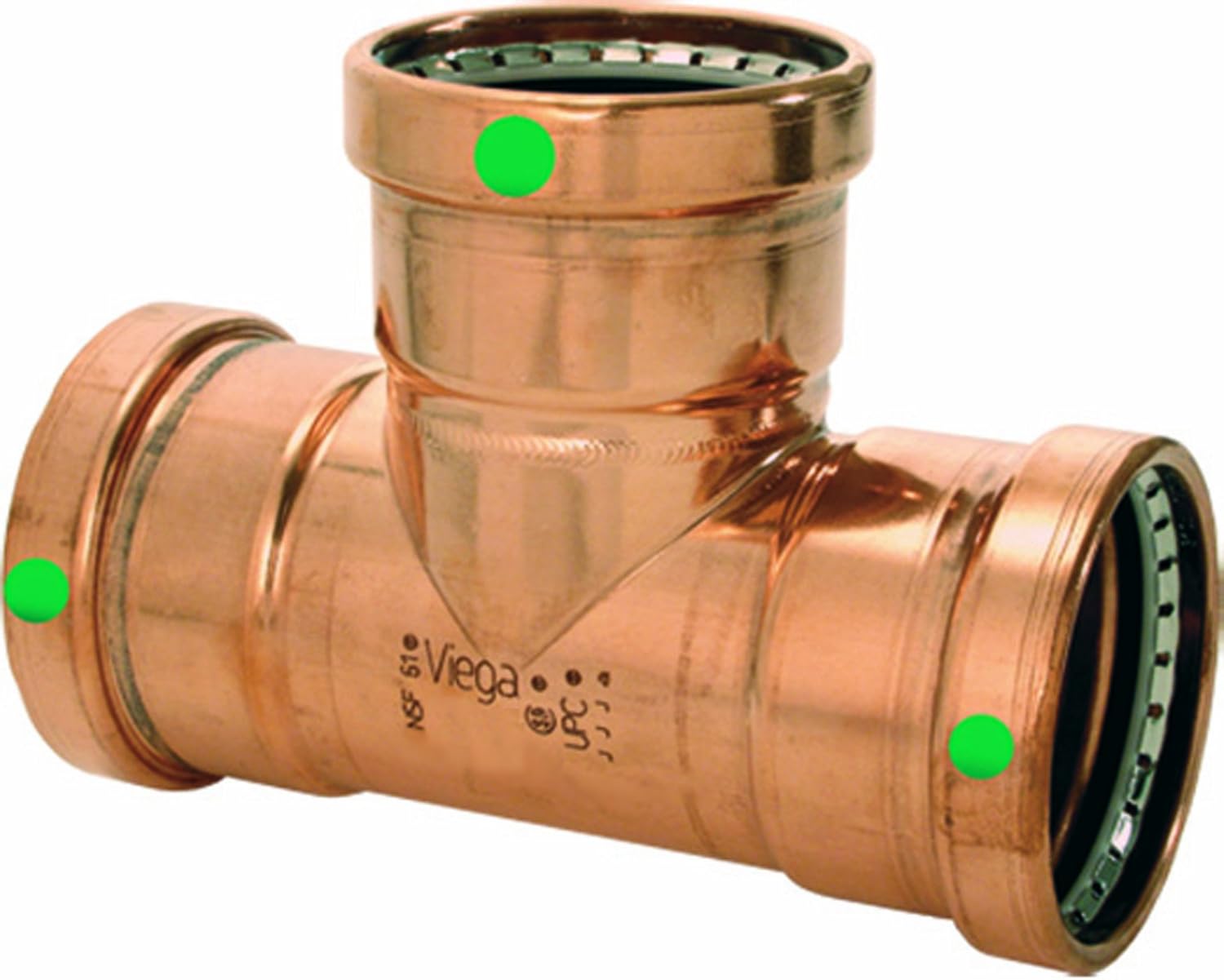

Viega 20803 ProPress XL-C Copper Tee 2-1/2 inch x 2-1/2 inch x 1-1/2 inch P x P x P Replacement 20803

Product Description

The Viega 20803 ProPress XL-C Copper Tee is designed for reliable and efficient handling of connections within plumbing systems, especially suitable for applications involving potable water, chilled water, compressed air, and fire sprinkler systems. This product is crafted from robust copper and features the innovative ProPress XL-C technology for seamless connections.

• Engineered for easy installation without the need for flame, solder, or flux.
• Features the Smart Connect technology to help identify unpressed connections during pressure testing.
• Capable of handling pressures up to 200 PSI and temperatures from zero to 250 degrees Fahrenheit.

Product Highlights

This tee fitting integrates three ProPress XL-C ends, suitable for pipes measuring 2-1/2 inches x 2-1/2 inches x 1-1/2 inches. It includes an EPDM sealing element for enhanced durability and leak resistance.

Product Information

Standard Information

• Material: Copper
• Connection Type: Press x Press x Press

Technical Specifications

• Nominal Size: 2-1/2 inch x 2-1/2 inch x 1-1/2 inch
• Pressure Rating: 200 PSI
• Temperature Range: 0 to 250 degrees Fahrenheit
• Compliance: Meets standards including ASME B16.51, CRN OA14541.5 A/B/C, CSA MSE 13, FM Class 1920, IAPMO Listed
• Recommended Tubing: Compliant with ASTM B88
• Installation: ProPress XL-C rings and V2 actuator required
