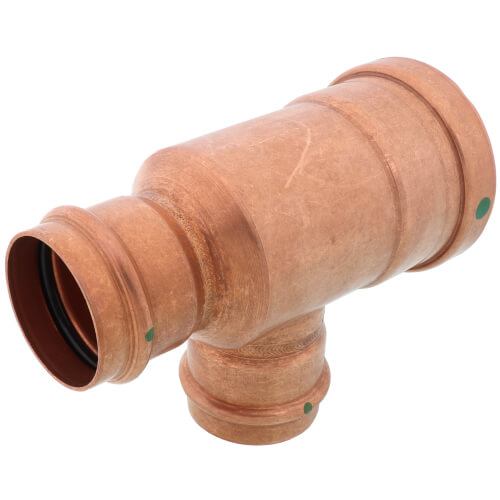

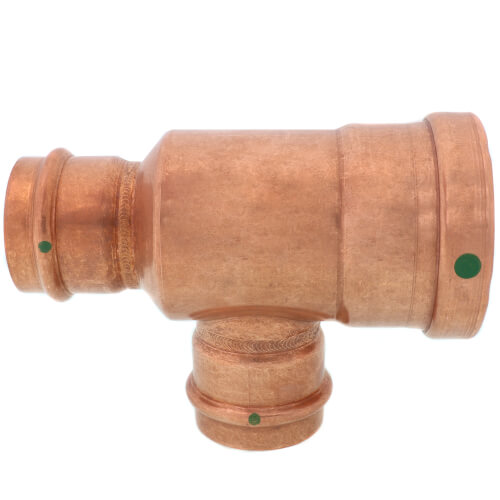

Viega 20732 ProPress XL-C 3 x 2 x 2 in. Copper Reducing Tee

Product Description

The Viega 20732 ProPress XL-C 3 x 2 x 2 in. Copper Reducing Tee is a versatile fitting for connecting different sizes of copper tubing. It utilizes modern cold press technology and is compatible with ASTM B88 tubing. Suitable for both above and below ground installations.

• Smart Connect Feature
• Press-Fit Connections
• EPDM Sealing Element

Product Highlights

The Viega 20732 ProPress XL-C Copper Reducing Tee is designed with Smart Connect technology and press-fit connections. It is intended for use with Viega ProPress XL-C rings and a V2 actuator. The fitting can be used with ASTM B88 tubing.

Product Information

Standard Information

• Brand: Viega
• MPN: 20732
• UPC: 691514207322

Technical Specifications

• Material: Copper
• Connection Type: Press x Press x Press
• Size: 3 x 2 x 2 inches
• Maximum Pressure: 200 PSI
• Maximum Temperature: 250 degrees F
• Minimum Temperature: 0 degrees F
• Compliance: ASME B16.51, CRN OA14541.5 A/B/C, CSA MSE 13, FM Class 1920, Florida Building Code, IAPMO Listed
• Application: Commercial and Residential
• Length: 7.441 inches
• Width: 5.453 inches
• Height: 3.681 inches
