Product Description

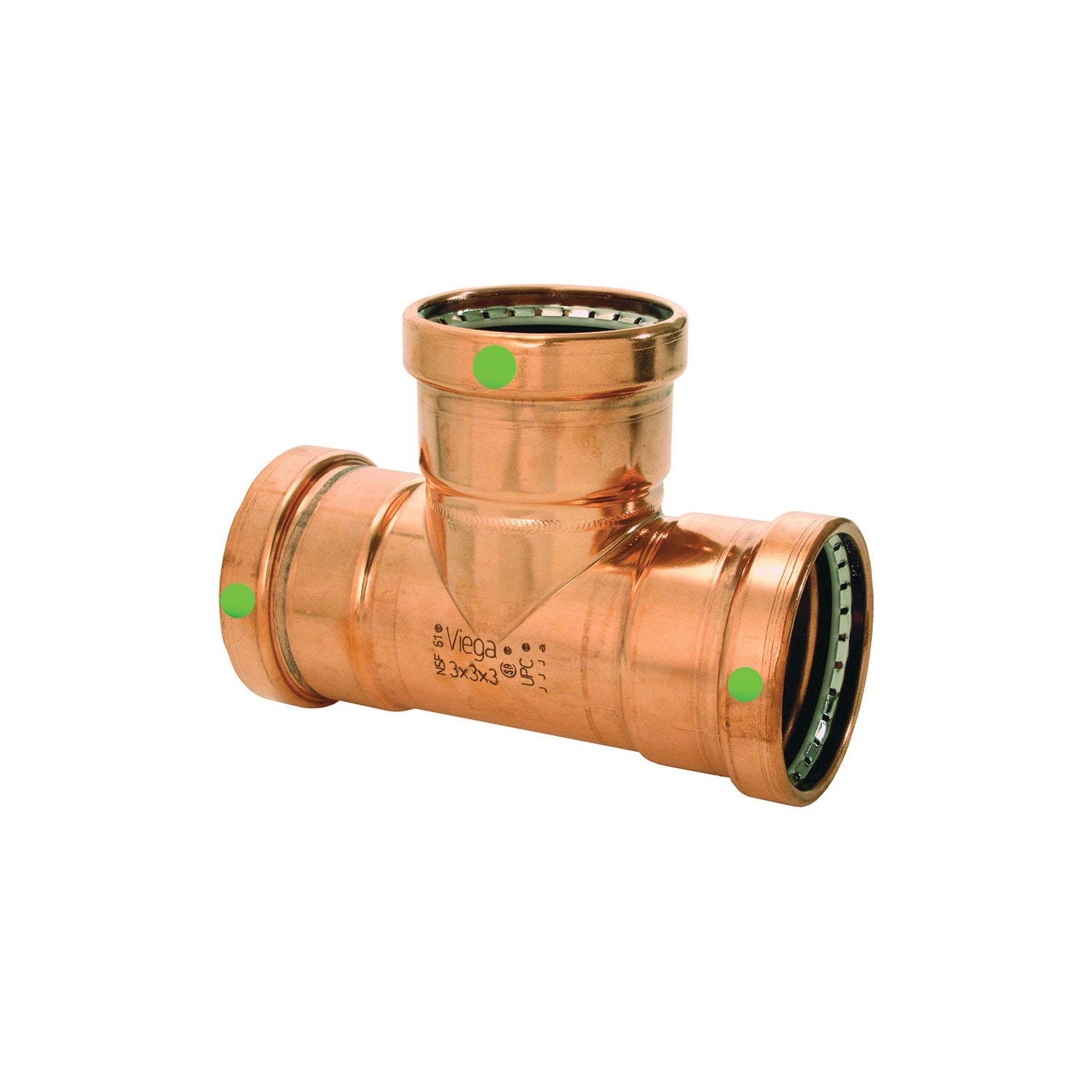

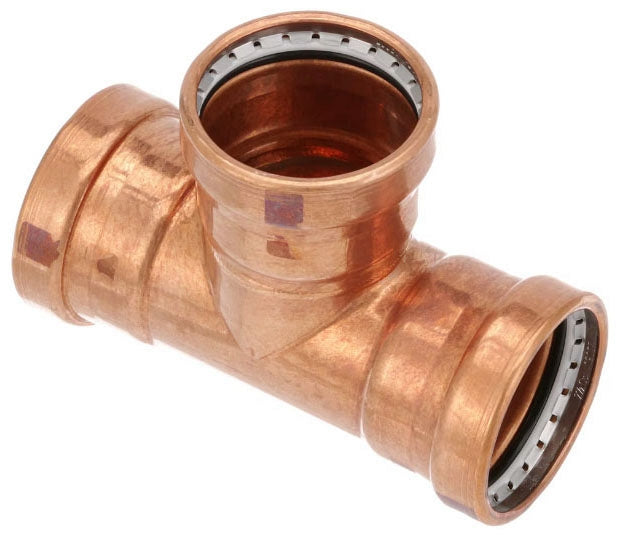

The VIEGA 20694 ProPress 0918XL Copper Tee features Smart Connect and EPDM sealing. This PxPxP tee is designed for connecting copper tubing with press end connections. It is suitable for use with ASTM B88 tubing. The Smart Connect feature helps identify unpressed connections during pressure testing.
- Features Smart Connect for identifying unpressed connections.
- Designed for copper tubing with press end connections.
- Suitable for commercial, industrial, and residential applications.
Product Highlights
The VIEGA ProPress tee provides a reliable, watertight seal and is guaranteed for 50 years when properly installed.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 20694
-
Country of Origin: Germany
Technical Specifications
-
End Style: Press
-
Fitting/Connector Type: Tee
-
Material: Copper
-
Nominal Size: 2-1/2 Inch x 1-1/4 Inch x 2-1/2 Inch
-
Pressure Rating: 300 psi
-
Temperature Rating: 0 to 250 deg F
-
Size: 2-1/2 X 1-1/4 X 2-1/2 in
-
Domestic/Import: Import
-
Tube Size: 2-1/2 in x 1-1/4 in x 2-1/2 in
-
Compliance: ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
-
Application: Potable Water
-
Fitting Shape: Tee
-
Max. Pressure: 200 psi
-
Overall Length: 7 3/4 in
-
Connection Type: Press-Fit x Press-Fit x Press-Fit
-
O-Ring Material: EPDM
-
Copper Tube Size: 2 1/2 in x 1 1/4 in x 2 1/2 in
-
Fitting Material: Copper
-
End Connection Type: Press
-
Pipe Size (Fittings): 2-1/2" x 1-1/4" x 2-1/2"
-
Compatible Tool Brand: Viega ProPress V2-Actuator, Viega ProPress XL-C Rings
-
Tube Fitting Material: Copper
-
Specific Fitting Shape: Reducing Tee
-
Fitting Connection Type: Press x Press x Press
-
Basic Pipe Fitting Shape: Tee
-
Fitting Copper Tube Size: 1 1/4 in, 2 1/2 in
-
Pipe Size - Pipe Fitting: 2-1/2 in x 1-1/4 in x 2-1/2 in
-
Maximum Operating Pressure: 200 psi
-
Basic Pipe Fitting Material: Metal
-
Specific Pipe Fitting Shape: Tee
-
Pipe Fitting Connection Type: Press x Press x Press
-
Maximum Operating Temperature: 250 Degrees F
-
Minimum Operating Temperature: 0 Degrees F
-
Fitting Side A Connection Type: Press-Fit
-
Fitting Side B Connection Type: Press-Fit
-
Fitting Side C Connection Type: Press-Fit
-
Fitting Side A Copper Tube Size: 2 1/2 in
-
Fitting Side B Copper Tube Size: 1 1/4 in
-
Fitting Side C Copper Tube Size: 2 1/2 in
-
Connector Type: Tee
-
Part Number: 20694
-
Item Package Quantity: 1
-
Measurement System: inch
-
Series: 0918XL Series
-
Connection Size 1: 2-1/2 in
-
Connection Size 2: 1-1/4 in
-
Connection Size 3: 2-1/2 in
-
Connection Type 1: Press
-
Connection Type 2: Press
-
Connection Type 3: Press
-
For Use With: Viega ProPress® ASTM B88 and ASTM B75 Tubes
-
Material Construction: Copper
-
Applicable Standard: CRN 0A14541.5 A/B/C, ULC/ORD 213, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037
-
End Connection: ProPress XL-C x ProPress XL-C x ProPress XL-C
-
Service: Chilled Water, Low Pressure Steam, Potable Water
-
Type: Reducing
