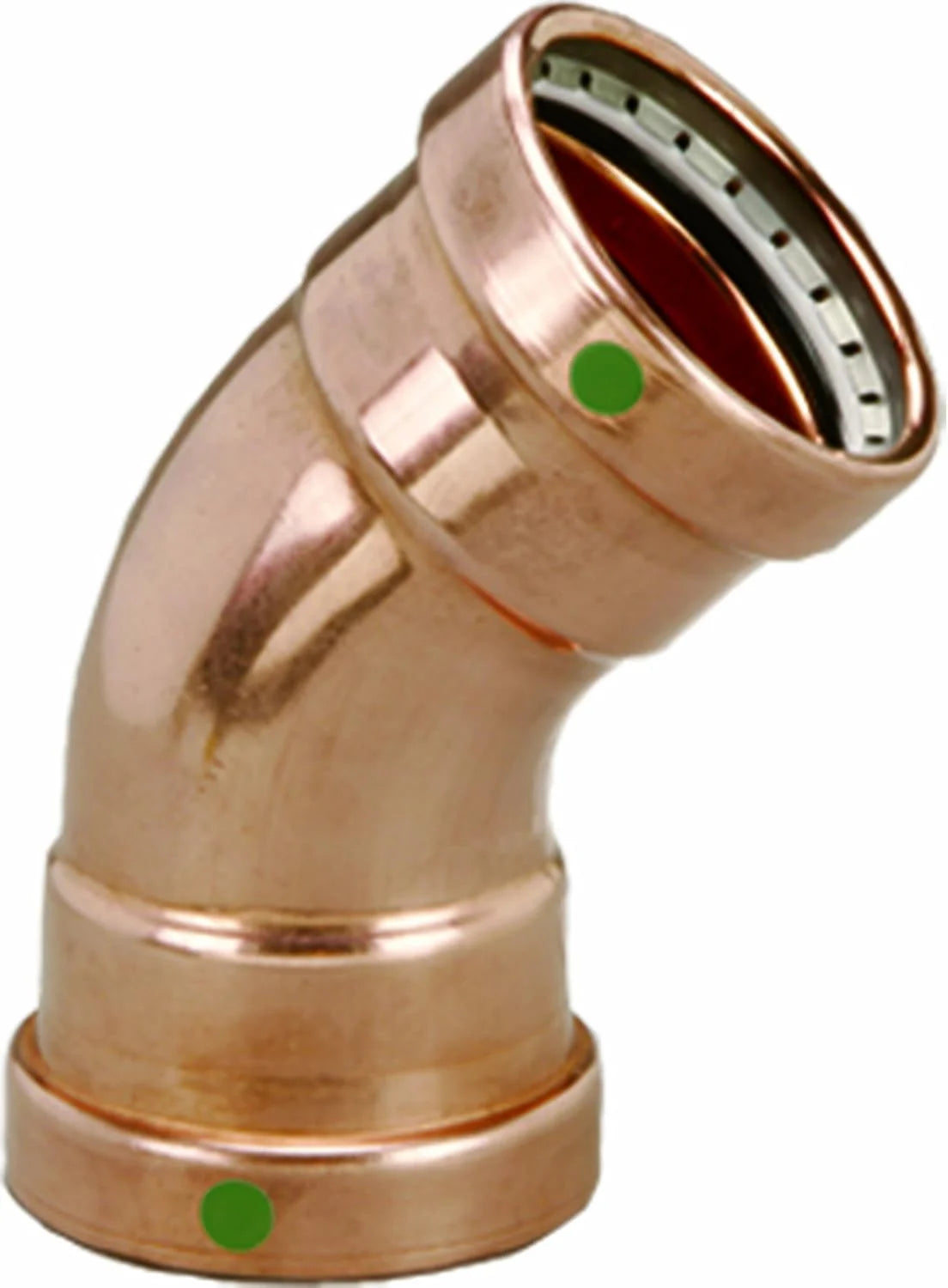

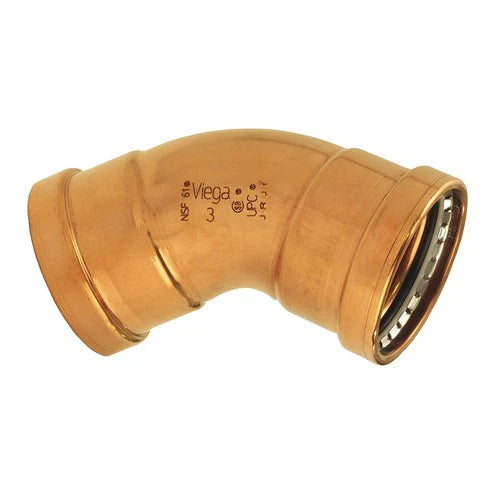

Viega 20658 ProPress Zero Lead Copper XL-C 45-Degree Elbow with 3-Inch P x P

Product Description

The Viega 20658 ProPress XL-C 45-Degree Elbow with 3-Inch P x P is designed for reliable and efficient pipe connections. Suitable for both commercial and residential plumbing applications, this elbow features Viega's exclusive Smart Connect technology which identifies unpressed connections during testing, ensuring a secure and leak-proof installation.

• Constructed of heavy-duty copper and lead-free materials for durability.
• Capable of withstanding pressures up to 200 PSI and temperatures from 0 to 250 degrees Fahrenheit.
• Compatible with ASTM B88 tubing and suitable for a wide range of applications including potable water and hydronic heating systems.

Product Highlights

Constructed of heavy-duty copper and lead-free materials for durability.

Product Information

Standard Information

• Manufacturer: Viega
• MPN: 20658

Technical Specifications

• Material: Copper, Lead-Free
• Size: 3 Inch P x P
• Angle: 45 Degree
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 Degrees Fahrenheit
• Connection Type: ProPress XL-C x ProPress XL-C
• Standards: ABS, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC LC 1002, UL 213, PHCC, NFPA 13/13D/13R, ASME B16.51
