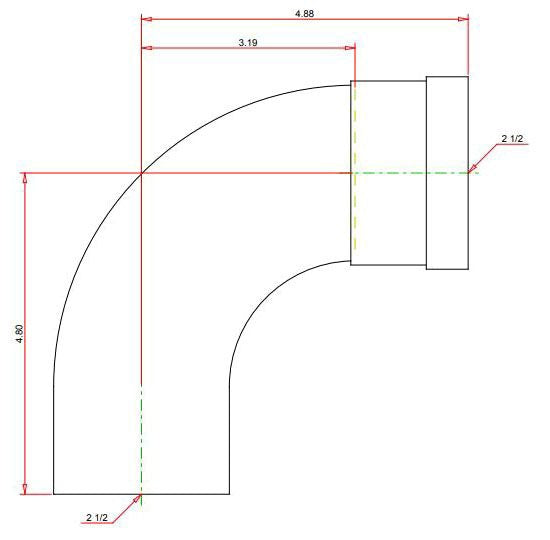

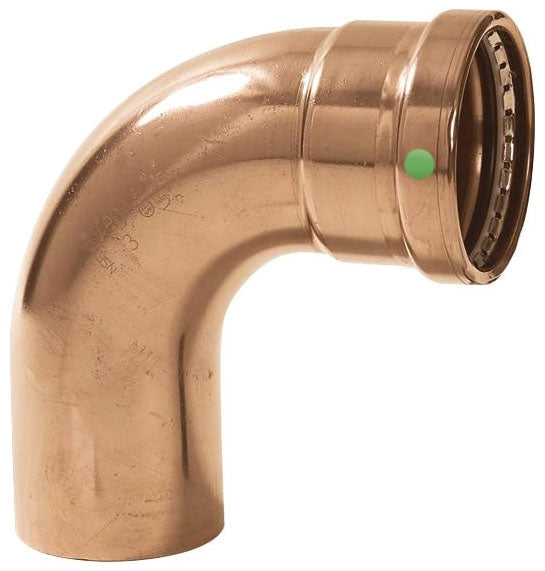

Viega 20638 ProPress XL-C 2-1/2 in. Copper 90 Street Elbow

Product Description

The Viega ProPress XL-C 20638 is a 2-1/2 inch copper 90 degree street elbow fitting. It is designed for use in plumbing applications that require robust and reliable connections. This fitting connects to ProPress XL-C systems, providing a secure and durable joint for potable water, hydronic heating, and other applications.

• Type: Street
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 degrees Fahrenheit

Product Highlights

Designed for quick and easy installation, this elbow fitting minimizes system downtime and allows for wet connections. The patented Viega Smart Connect technology ensures a strong connection in under seven seconds.

Product Information

Standard Information

• Brand: Viega
• MPN: 20638

Technical Specifications

• Material: Copper
• Size A: 2-1/2 inches
• Size B: 2-1/2 inches
• End Connection: ProPress XL-C x Male Soldered
• Applicable Standards: ABS, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC LC 1002, UL 213, PHCC, NFPA 13/13D/13R, ASME B16.51
• Application: Potable water, hydronic heating, chilled water, compressed air, non-medical gas, fire sprinkler, low pressure steam, vacuum
• Includes: EPDM sealing element
