Product Description

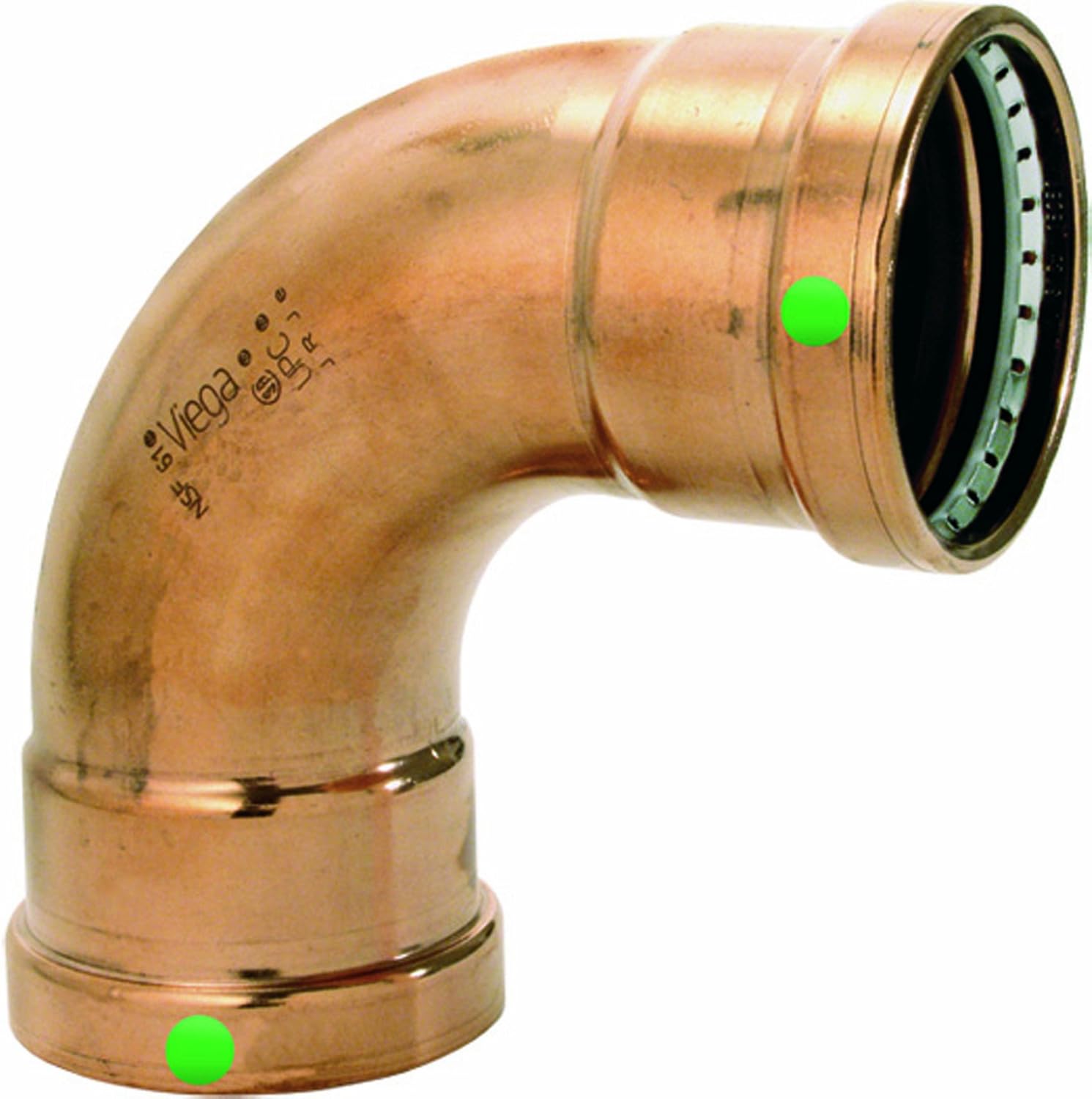

The Viega 20633 ProPress Copper 90-Degree Elbow is designed for efficient and reliable pipe connections. Ideal for both commercial and residential plumbing systems, this fitting facilitates a 90-degree connection with a press fit technology, eliminating the need for soldering.
- Lead-free copper construction ensures top-grade durability.
- Smart Connect feature detects unpressed connections during testing.
- Compatible with type K, L, M hard and soft copper tubing.
Product Highlights
Made from high-quality copper, the Viega ProPress 20633 elbow is engineered for longevity and optimum performance. Its 90-degree angle suits a wide range of plumbing layouts, supporting press connections that simplify installation and maintenance.
Product Information
Standard Information
-
Material: Copper
-
Connection Type: ProPress XL-C x ProPress XL-C
-
Color: Copper
Technical Specifications
-
Thread Size: 4 inch
-
Pressure Rating: 200 PSI
-
Temperature Rating: 0 to 250 Degrees Fahrenheit
-
External Finish: Copper
-
Size: 4 inch x 4 inch
-
Weight: 5.7 Pounds
-
Standards Met: ASTM B88, ABS, CSA MSE-13, FM Class 1920, ICC LC 1002
