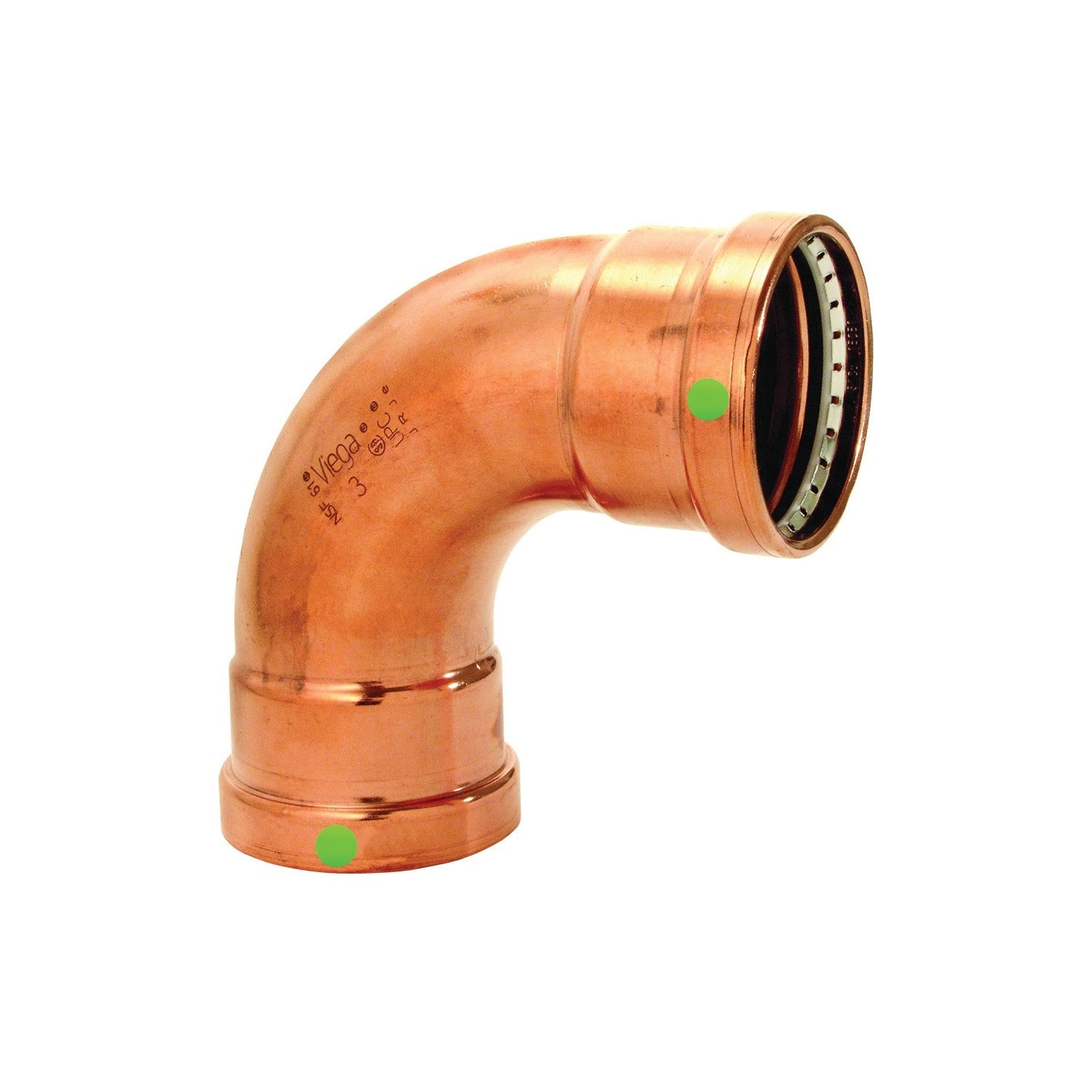

Viega 20628 90 Degree Press Elbow 3 Inch Copper

Product Description

The VIEGA 20628 is a 90-degree press-style pipe elbow designed for use in copper piping systems. It features a ProPress XL-C end style, allowing licensed plumbers and pipefitters to make secure, flame-free connections using a compatible press tool. The 3-inch nominal size makes it well suited for larger-diameter distribution lines in commercial and residential applications. Press fittings eliminate open-flame soldering, reducing fire risk and installation time on the job.

This elbow is used in copper pipe systems where a 90-degree directional change is required. Typical installations include domestic hot and cold water distribution, hydronic heating systems, and commercial plumbing rough-in work. The ProPress XL-C end style is engineered for larger-diameter press connections and is compatible with press tooling rated for XL-C jaws in the 3-inch range. It is commonly installed by licensed plumbers and mechanical contractors working on mid- to large-scale projects.

Key Features

• 90-degree elbow geometry for directional pipe routing
• 3-inch nominal size suits larger-diameter copper distribution systems
• ProPress XL-C press end style enables flame-free, tool-press connections
• Copper construction provides corrosion resistance and long service life in water systems
• Eliminates soldering, reducing fire risk and labor time on job sites

Compatibility

Designed as an OEM-style press fitting for use in 3-inch nominal copper piping systems utilizing the ProPress XL-C press end connection standard.

Installation Notes

Installation requires a press tool equipped with XL-C jaws rated for 3-inch fittings. Shut off and depressurize the water system before beginning work. Follow local plumbing codes and the International Plumbing Code (IPC) for fitting installation and system pressure testing. Inspect the pipe end for squareness and debris before pressing to ensure a leak-free connection.

Technical Specifications

• Nominal Size: 3 inches
• End Style: Press (ProPress XL-C)
• Angle: 90 degrees
• Material: Copper

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 20628
