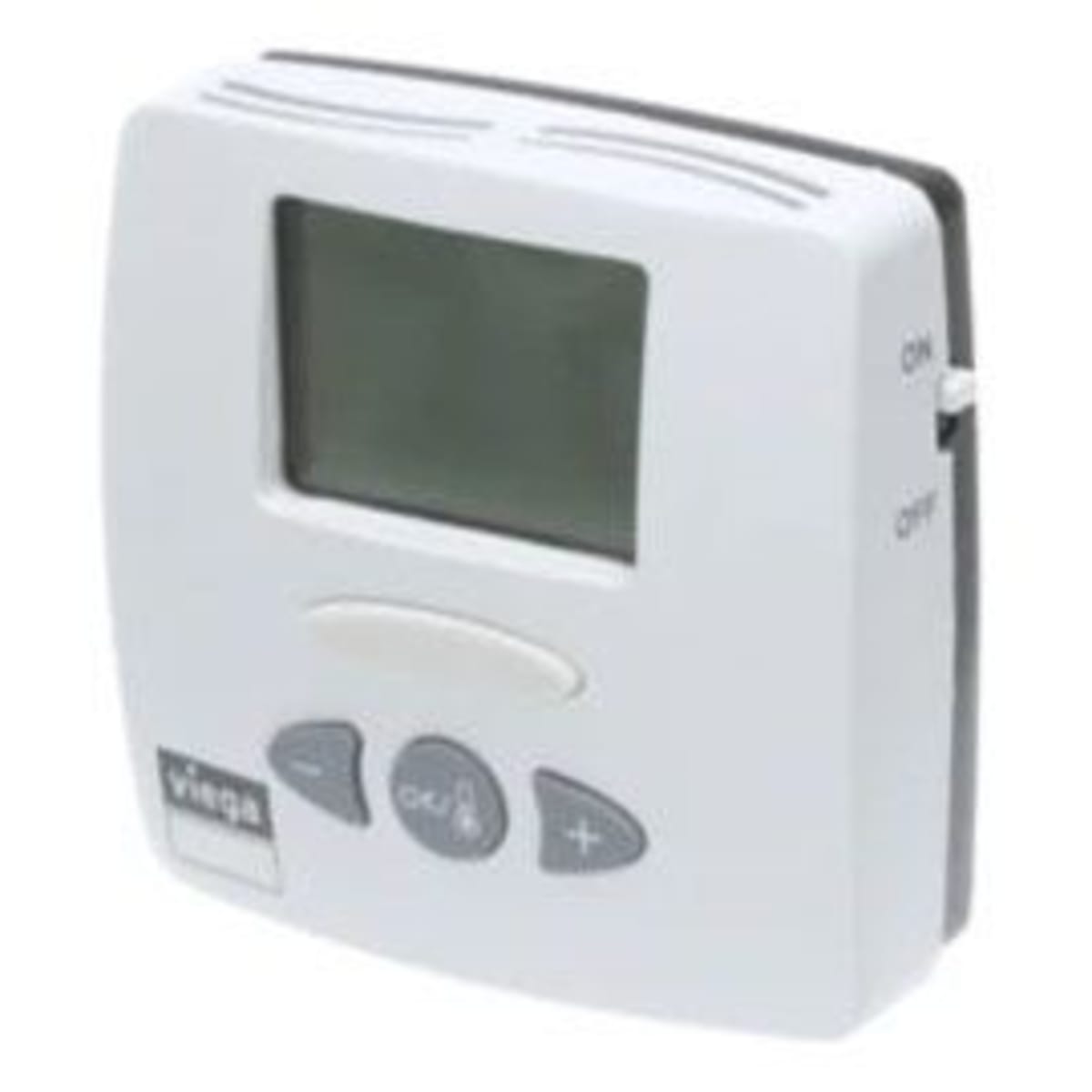

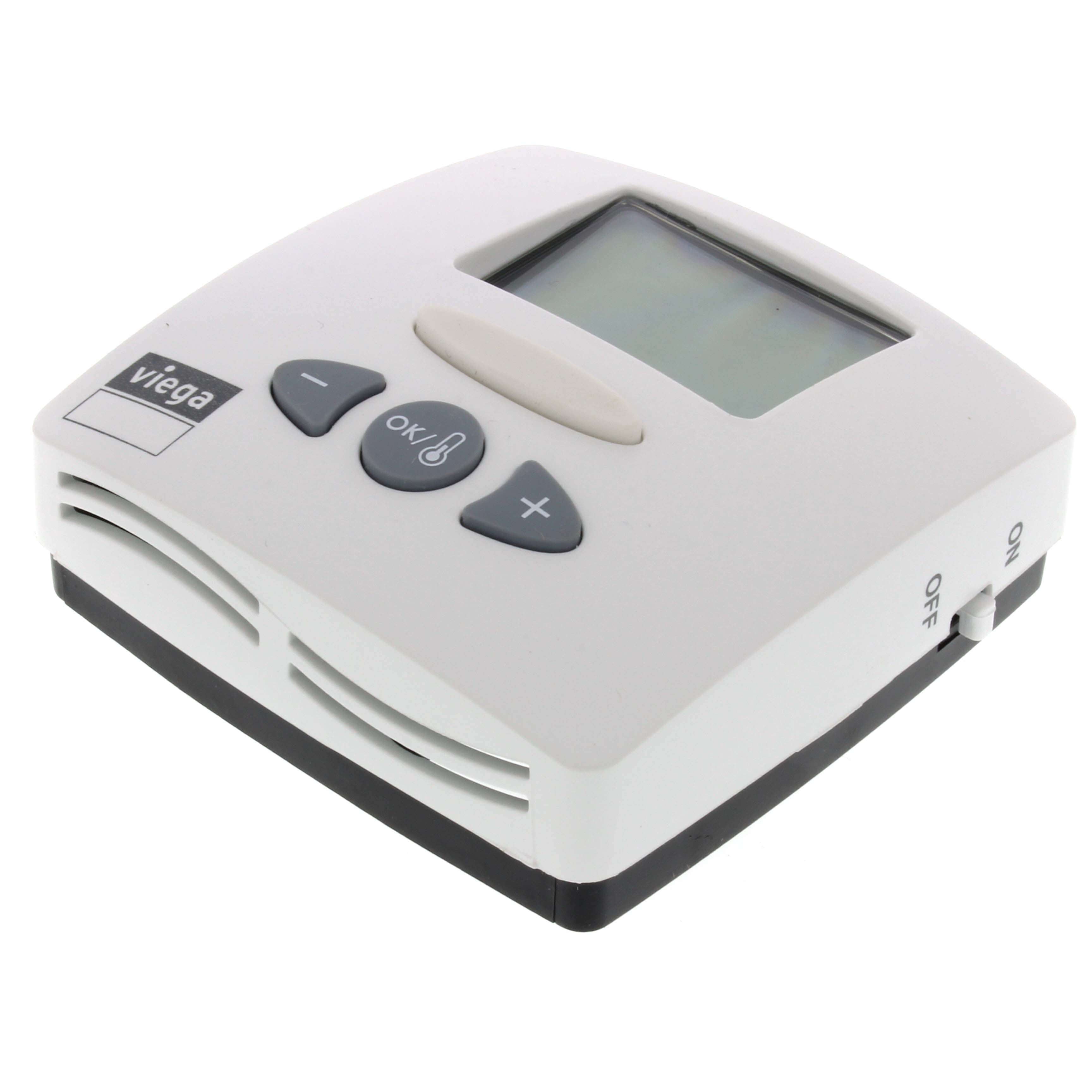

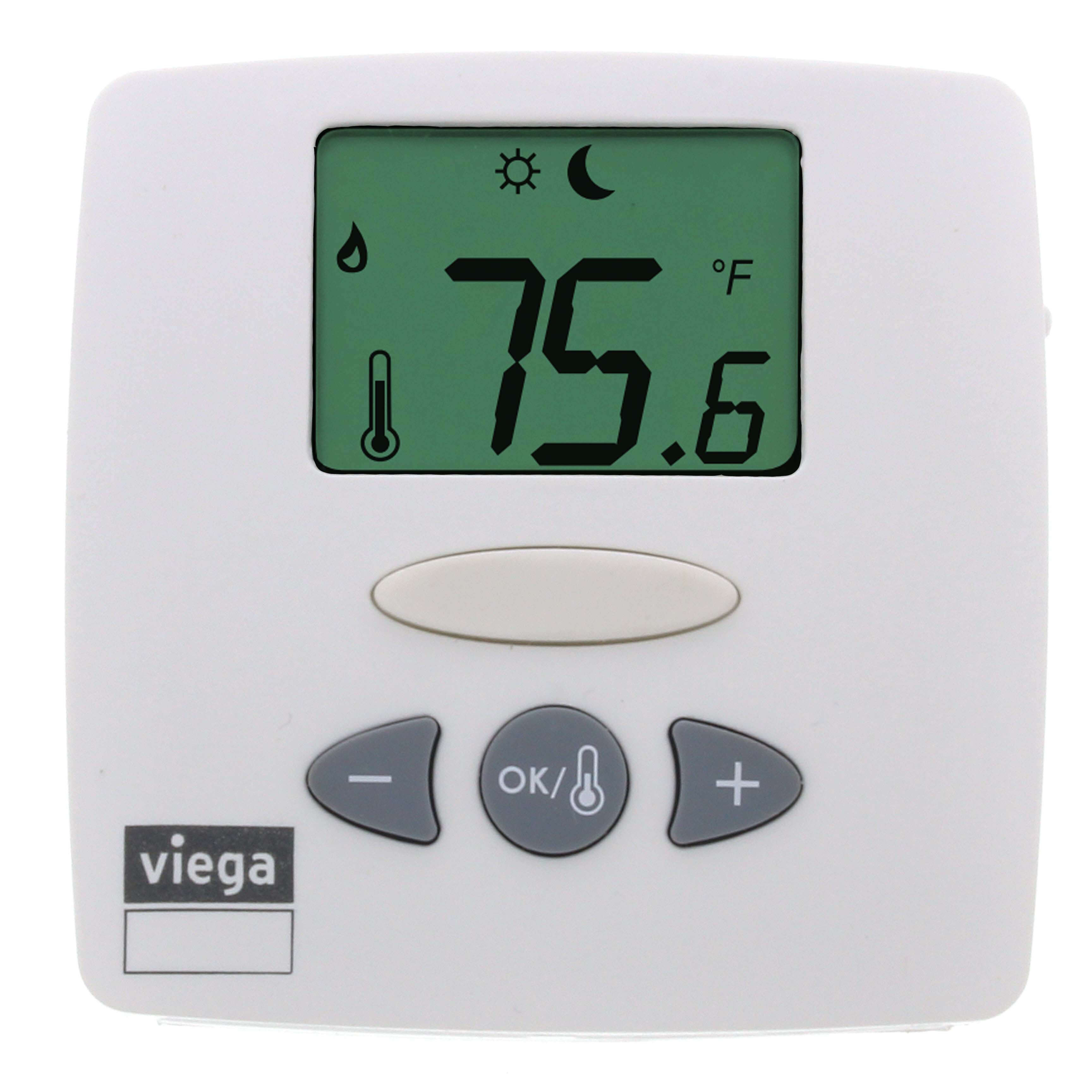

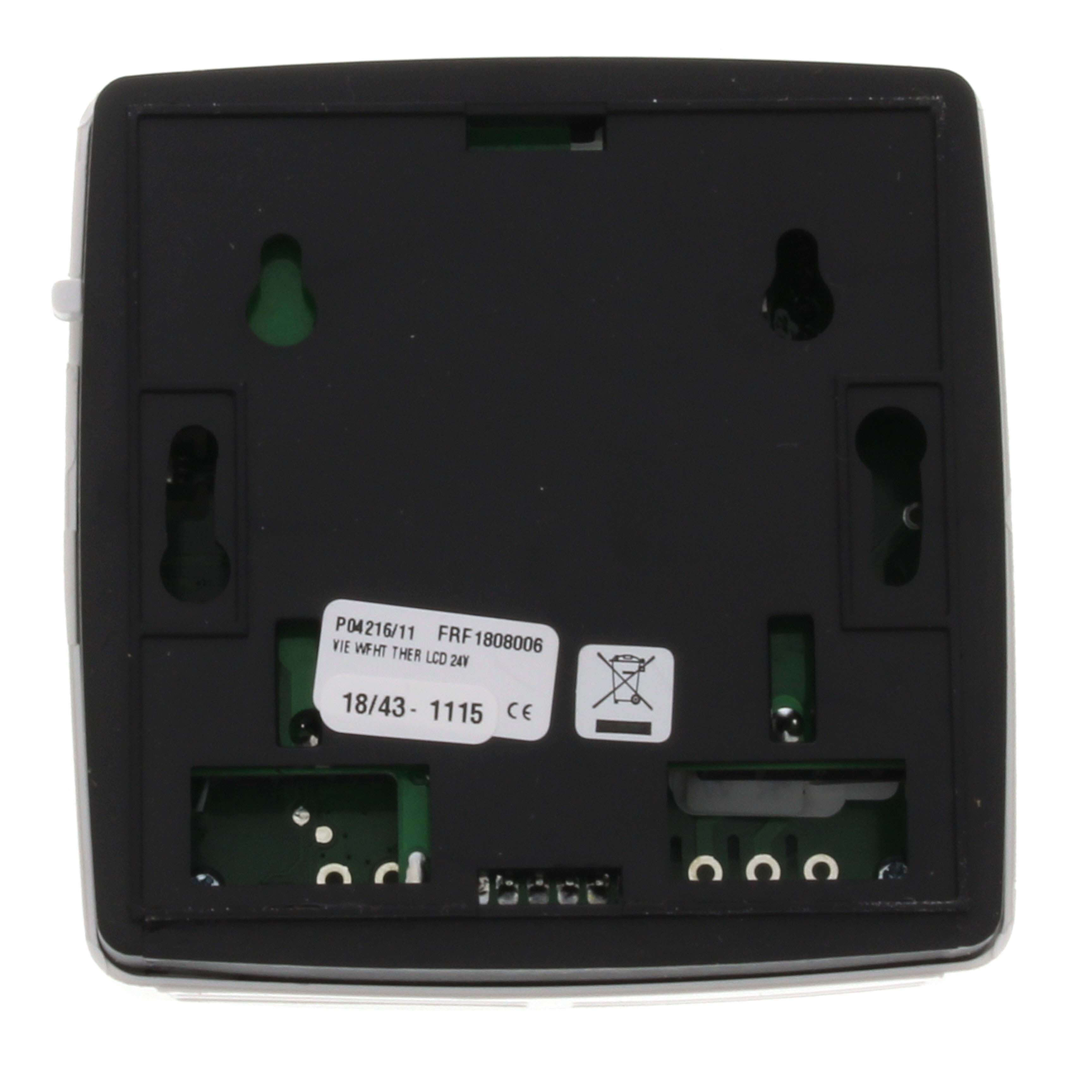

Viega 18050 Digital Thermostat 24V

Product Description

The Viega 18050 digital thermostat features microprocessor control and is designed for sensing floor or room temperature. It operates on 24V and has a power rating of 15W. The thermostat regulates temperature in hydronic heating systems with a digital LCD display and adjustable setback function.

• Compact Design
• Digital LCD Display
• Regulates Floor or Room Temperature

Product Highlights

This digital thermostat is ideal for individual room temperature control with a user-friendly three-button design for easy setting changes.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 18050

Technical Specifications

• Type: Digital, Microprocessor Control
• Voltage Rating: 24 Volt
• Power Rating: 15 Watt
• Temperature Rating: 32 to 122 Deg F
• Size: 3.15 Inch Width x 1.22 Inch Depth x 3.15 Inch Height
• Set Temperature Range: 41 to 99 Deg F
• Floor Limiting Range: 50 to 104 Deg F
• Electrical Protection: IP30, Class II
• Options: Works with Sensor
• Application: Heat Only
• Mounting Type: Horizontal
• Control Panel: Digital
• Control: Microprocessor Control
• User Interface: Push Button
• Programmability: Non-Programmable
• Accuracy: +/-0.2 deg F
• Operating Temp Range: 41 to 99 deg F
• Environment Range: 32 to 122 deg F
• Power Supply: 24V +/- 10% 60 Hz 15 W Max
• Output: TRIAC output 24 VAC, 15 W Max
• Display Type: LCD
• Frequency Rating: 60 Hz
• Number Of Stages: 1 Heat
• Dimensions: 2.36 in W x 3.15 in H x 1.22 in D
