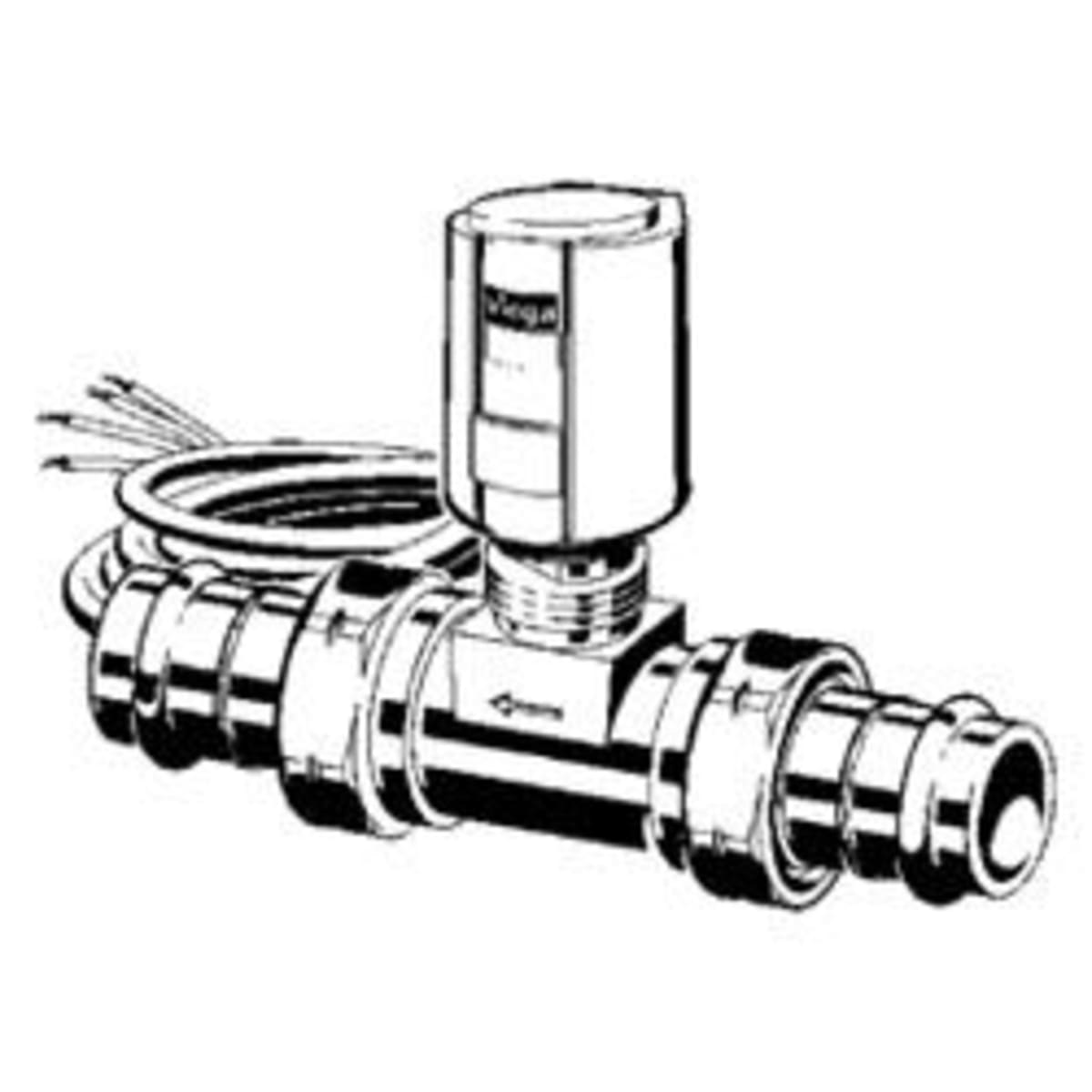

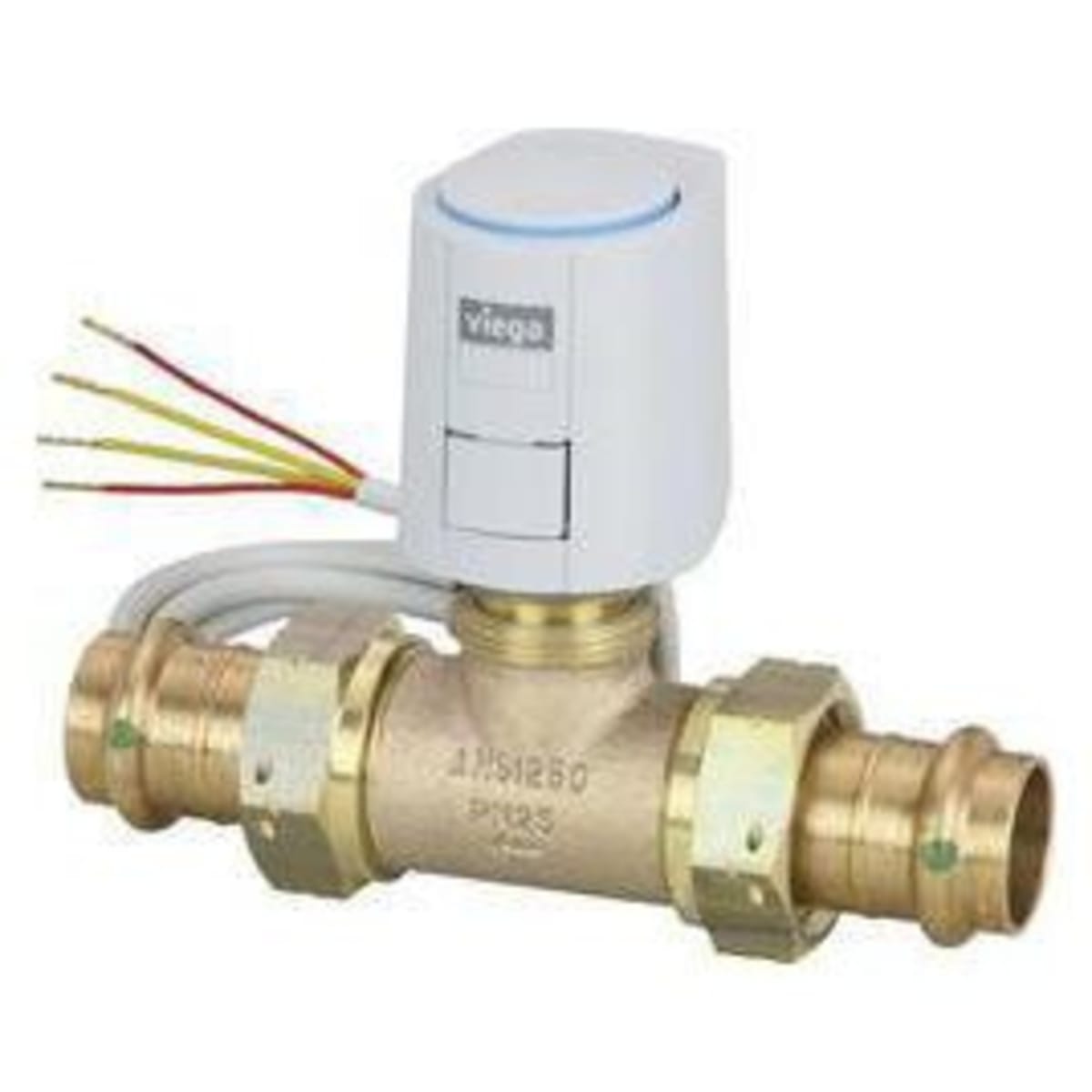

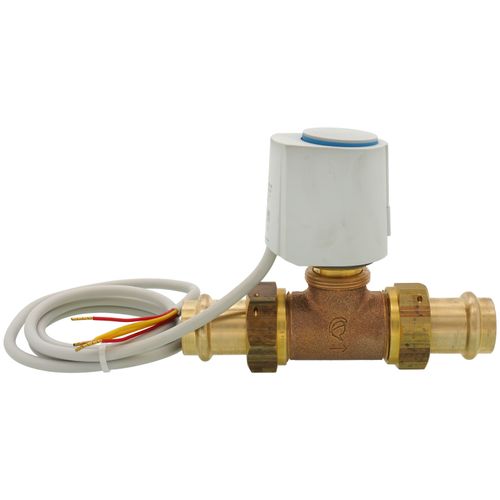

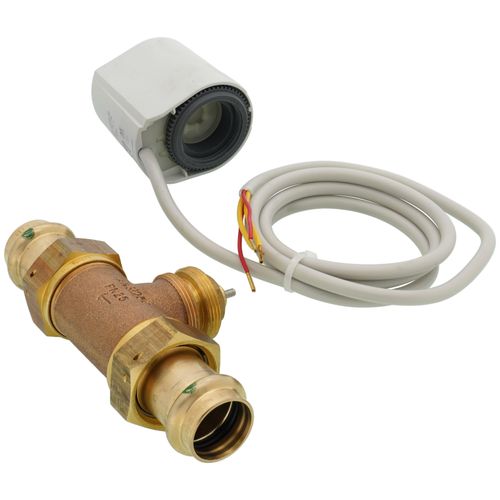

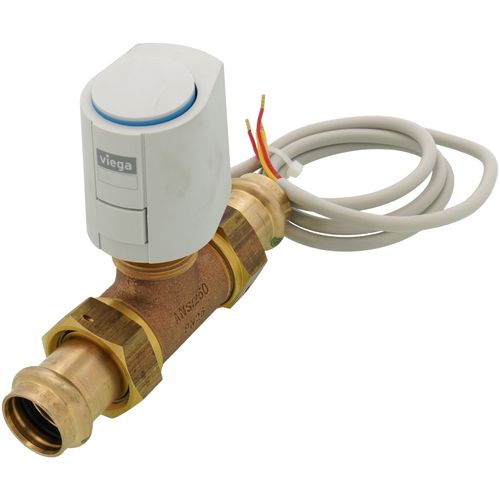

Viega 17232 zone valve bronze 24 volt 3/4 inch

Product Description

The VIEGA 17232 Zone Valve Bronze is designed for hydronic heating and cooling systems. This 3/4 inch ProPress x ProPress valve controls fluid flow, opening with thermostat demand and closing when met. It operates on 24 Volt, 300 Milliamp input, with a 1 Watt operating power. The valve handles fluid from 32 to 212 degrees F and up to 50 PSI pressure, featuring a C84400 Low Zinc Bronze body.

• Proven Press Technology ensures secure connections for installation.
• Designed for hydronic heating and cooling system applications.
• Operates on 24 Volt with low 1 Watt power consumption.

Product Highlights

Efficient 24 Volt zone valve with ProPress connection for hydronic systems.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 17232
• Country of Origin: Import

Technical Specifications

• Nominal Size: 3/4 Inch
• End Connection: ProPress x ProPress
• Body Material: C84400 Low Zinc Bronze
• Valve Timing: 3 Minute
• Input Voltage: 24 Volt
• Input Current: 300 Milliamp
• Fluid Temperature Range: 32 to 212 Deg F
• Pressure Rating: 50 PSI
• Media Handled: Fluid
• Application: Hydronic Heating and Cooling System
• Applicable Standard: CSA, CAN/ULC S101/S102.2, B137.5, ASTM E84/F876/F877
• Body Length: 5.6 Inch
• Operating Power: 1 Watt
• Flow Capacity (Cv): 4
• Stem Travel: 4 Millimeter
• Actuating Force: 21 Pound
• Series/Model: 2837.2US
• Additional MPN: 781013
• Manufacturer Part Number: 17232
• Reference ID: VIEGA17232
• Inventory SKU: V-2837.2US243Q
• Valve Type: Zone Valve
• End Switch: No
• Body Pattern: 2-Way
• Position: Normally Open
• Origin: Import
