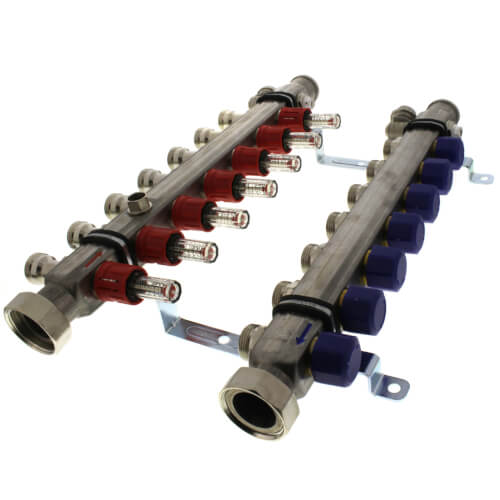

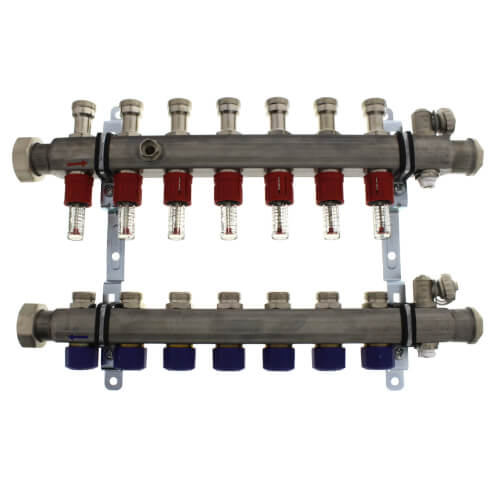

Viega 16035 1-1/4 x 1, Union x FPT, Stainless Steel, 7-Port, Heating and Cooling Manifold with Air Bleeder/Shut-Off Balancing Valve and Supply Flow Meter Valve

Product Description

The Viega 16035 is a stainless steel manifold designed for closed loop hydronic heating, cooling, and snow melting systems. This preassembled manifold features a diameter of 1-1/4 inches and comes with two brackets for compact remote mounting. It provides shut-off and balancing valves equipped with flow meters for each circuit.

• Includes graduated flow settings up to 2 gallons per minute, with a maximum flow capacity of 18 gallons per minute per manifold.
• Features air bleeder and purge valves connected and factory tested for reliability.
• 1-1/4 union connections and removable NPT end caps for easy installation.

Product Highlights

This manifold is essential for controlling hydronic heating systems and optimizing energy use.

Product Information

Standard Information

• Brand: Viega
• Part Number: 16035
• UPC: 691514160351

Technical Specifications

• Type: Manifold
• Material: Stainless Steel
• Number of Outlets: 7
• Max Temperature: 180°F
• Max Pressure: 100 PSI
• Weight: 11.34 pounds
• Shipping Dimensions: 23 inches (Length) x 14.63 inches (Width) x 4.38 inches (Height)
