VIEGA 15901 Viega 15901 Steel Manifold with Shutoff, Balancing, and Flow Meters

Product Description

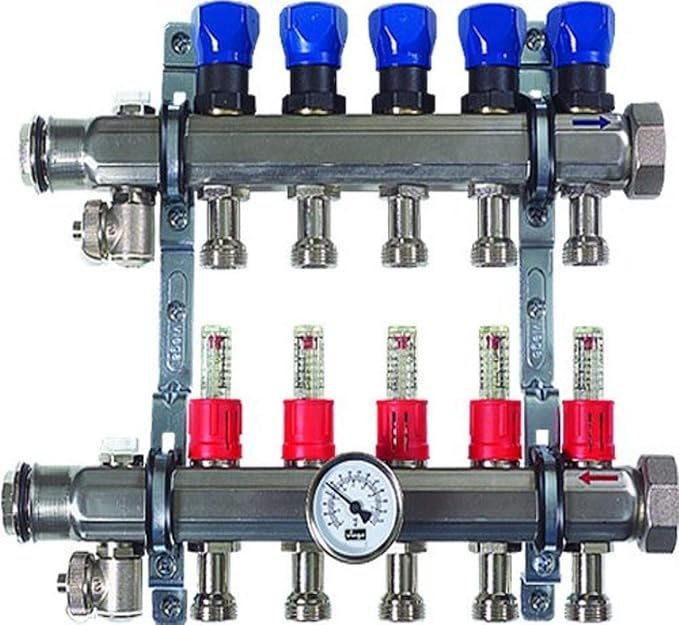

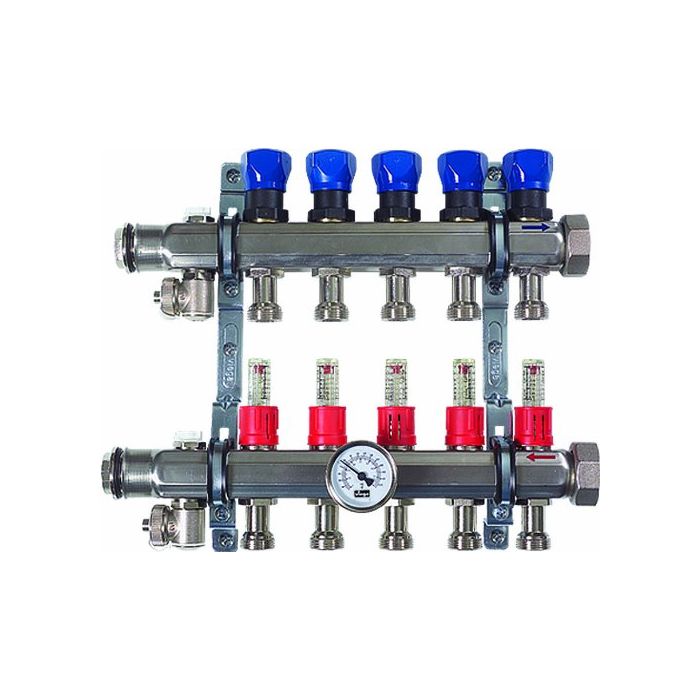

The VIEGA 15901 steel manifold with shutoff, balancing, and flow meters is designed for hydronic heating systems. It includes an air bleeder, bracket, purge valve, supply flow meter valve, and supply shutoff balancing valve. The unit is made of stainless steel and features a union connection with female pipe threads. This manifold is preassembled for quick and straightforward installation.

• Includes air bleeder, bracket, and purge valve
• Features supply flow meter and shutoff balancing valve
• Constructed of stainless steel with union connection

Product Highlights

This manifold is ideal for use in closed-loop hydronic systems, enabling efficient water flow management and ease of maintenance.

Product Information

Standard Information

• Manufacturer: Viega
• Product Type: Manifold

Technical Specifications

• Shutoff/Balancing/Flow Meters: Equipped with air bleeder, purge valve, supply flow meter valve, and shutoff balancing valve
• Material: Stainless steel
• Connection Type: SVC, union connection, female pipe thread
• Assembly: Preassembled
• Use: Hydronic Heating
• Connection Size: 1-1/4 inches
• Flow Rate: 2.0 GPM
• Pressure Rating: 100 PSI
• Number of Circuits: 3
• Maximum Operating Temperature: 180 F
• CSA Listed: Yes
• NSF Certified: Yes
• Warranty: 5 Years
