Product Description

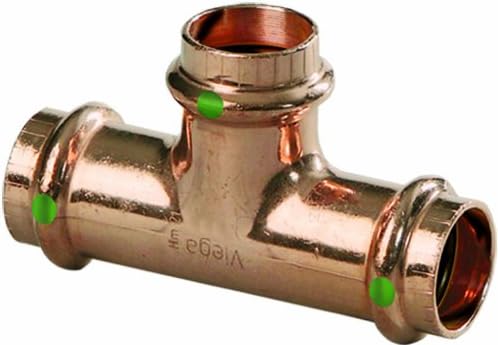

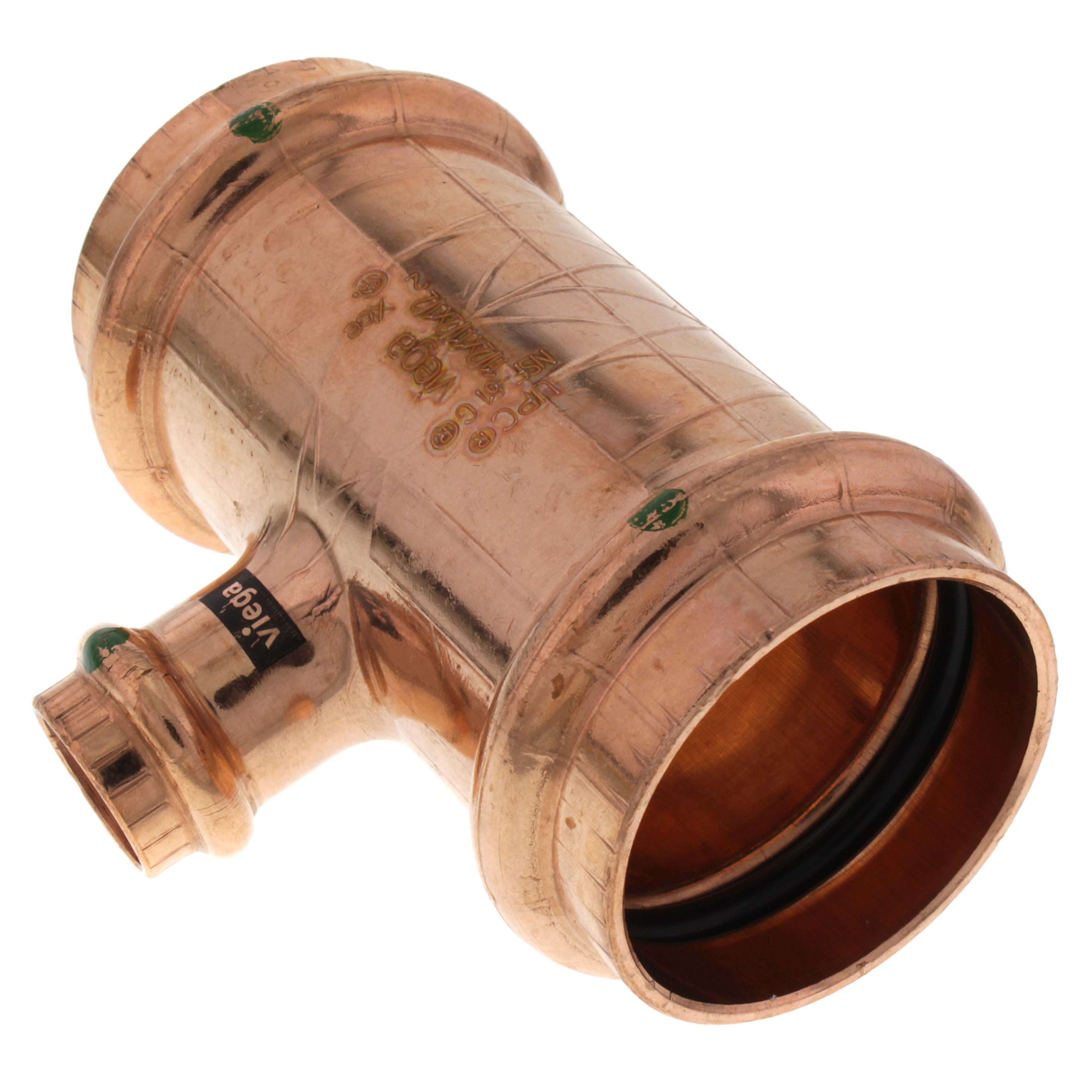

The Viega 15448 ProPress Zero Lead Copper Tee is designed for joining copper tubing. This tee fitting is used in plumbing applications, providing reliable connections for water and low-pressure steam systems. Suitable for use with ASTM B88 tubing, it features a patented connection system that speeds up installation and minimizes downtime.
- Material: Copper
- Connection Type: Press x Press x Press
- Maximum Pressure Rating: 200 PSI
Product Highlights
This fitting allows for secure connections without the need for flame, solder, or heavy equipment.
Product Information
Standard Information
-
Brand Name: Viega
-
MPN: 15448
Technical Specifications
-
Nominal Size: 1-1/2 inch x 1-1/2 inch x 1/2 inch
-
Material: Copper
-
Temperature Rating: 0 to 250 degrees Fahrenheit
-
Application: Chilled water, compressed air, hydronic heating, fire sprinkler system, potable water
-
Applicable Standards: ABS, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC LC 1002, UL 213, PHCC, NFPA 13/13D/13R, ASME B16.51
-
Includes: EPDM sealing element
-
Weight: 0.7 pounds
-
Dimensions: 3.78 inches long
