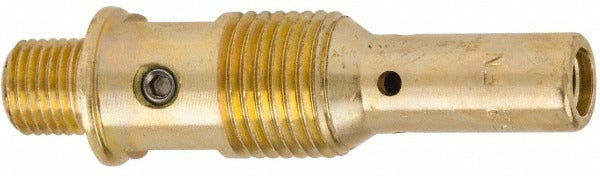

Victor 15201102 Mig Welder Gas Diffuser 200 Amp

Product Description

The VICTOR 15201102 is a MIG welder gas diffuser rated for a maximum of 200 amps. It is part of the EL52 series and is designed to direct shielding gas evenly around the weld puddle, maintaining arc stability and consistent bead quality. The diffuser threads into the gun neck between the contact tip and the nozzle, making it a routine consumable replacement on any job site running MIG equipment. Installation and replacement are handled by welding technicians and fabricators as part of standard gun maintenance.

This diffuser is designed for use with 250 amp and 450 amp Eliminator MIG guns. It also functions as a No. 2 diffuser for traditional style MIG guns paired with No. 3 and No. 4 nozzles. The EL52 series designation helps match this part to the correct gun body and nozzle combination. It is suited for both light fabrication and higher-output welding applications within its 200 amp rating.

Key Features

• 200 amp maximum rating supports a wide range of MIG welding applications
• Compatible with 250 amp and 450 amp Eliminator MIG gun platforms
• Functions as No. 2 diffuser for traditional style guns with No. 3 and No. 4 nozzles
• Part of the EL52 series for straightforward parts matching
• Sold individually for single-unit replacement or stocking

Compatibility

Designed for use with 250 amp and 450 amp Eliminator MIG guns, and as a No. 2 diffuser for traditional style MIG guns using No. 3 and No. 4 nozzles.

Installation Notes

This diffuser is a consumable replaced by welding technicians during routine MIG gun maintenance. Always power down and disconnect the welder from its power source before servicing the gun neck or replacing consumables. Thread the diffuser in by hand first to avoid cross-threading, then snug with the appropriate wrench. Inspect the contact tip and nozzle seating when replacing the diffuser to catch worn components before returning the gun to service.
