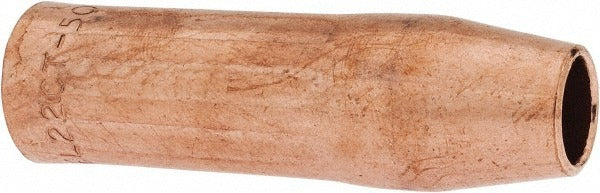

Victor 12601636 Mig Welder Gas Nozzle 0.5 in Bore

Product Description

The VICTOR 12601636 is a replacement MIG welder gas nozzle designed for use with 250 and 450 Amp Eliminator MIG guns. It features a 0.5 inch bore diameter and a tapered, three-piece design that threads directly onto the gas diffuser. Rated for a maximum of 180 amps, this nozzle manages shielding gas flow at the weld zone to protect the molten pool from atmospheric contamination. It is part of the Series 22 nozzle family. Welding technicians and fabricators install this component during routine gun maintenance or when replacing a worn or spatter-damaged nozzle.

This nozzle is suited for MIG welding applications in both light industrial and professional fabrication environments. It is intended for use with VICTOR Eliminator MIG guns rated at 250 and 450 amps. The threaded attachment method and tapered profile make it straightforward to swap in the field or at a workbench. Maximum wire outside diameter compatibility is 0.5 inches (12.70 mm), covering the most common wire sizes used in structural and general-purpose MIG work.

Key Features

• 0.5 inch bore diameter for controlled shielding gas coverage
• Threads onto the gas diffuser for secure, tool-free installation
• Tapered three-piece nozzle design for consistent gas flow geometry
• Series 22 identification for fast, accurate replacement selection
• Rated up to 180 amps maximum amperage
• Compatible with wire outside diameters up to 0.5 inches (12.70 mm)

Compatibility

Designed for use with VICTOR 250 and 450 Amp Eliminator MIG guns. Part of the Series 22 nozzle family.

Installation Notes

Installation is performed by welding technicians or fabricators during gun maintenance. Before replacing the nozzle, power down the welding machine and allow the gun to cool completely. Thread the nozzle onto the gas diffuser by hand until snug, being careful not to cross-thread the connection. Inspect the gas diffuser for spatter buildup or damage before installing the replacement nozzle.
