Victor 1000-0268 Flowmeter Regulator Air Nitrogen

Product Description

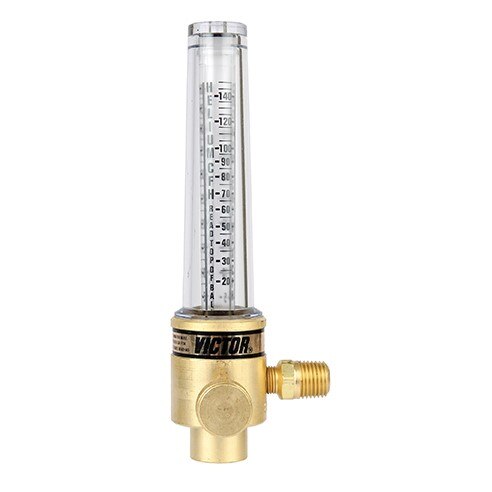

The VICTOR 1000-0268 is a medium-duty flowmeter regulator designed for measuring and controlling gas flow of air and nitrogen in welding and fabrication applications. It delivers a flow range of 10 to 60 SCFH for both gases and operates at a 25 psig inlet pressure. The inlet fitting is 1/4 inch NPT male and the outlet fitting is 5/8 inch-18 RH female. The flow tube and outer tube are constructed from impact-resistant Lexan, making this unit suitable for demanding shop environments. Licensed HVAC and welding professionals working with MIG and TIG processes will find this unit a reliable inline measurement tool.

This flowmeter is suited for a range of industrial applications including general fabrication, light fabrication, structural steel fabrication, and repair and maintenance work. It is pressure compensated for low-surge requirements, which keeps readings stable during typical shielding gas delivery scenarios. The cover tube incorporates overpressure protection, adding a layer of durability in high-demand shop settings where gas supply pressures can fluctuate.

Key Features

• Flow range of 10 to 60 SCFH for both air and nitrogen
• Impact-resistant Lexan construction on flow tube and outer tube for severe applications
• Pressure compensated design for low-surge gas delivery
• Cover tube includes overpressure protection
• Compatible with MIG and TIG welding processes
• 1/4 inch NPT male inlet and 5/8 inch-18 RH female outlet fittings

Compatibility

Designed for use with air and nitrogen gas supplies in MIG and TIG welding applications across industrial fabrication, light fabrication, structural steel fabrication, and repair and maintenance environments.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed gas systems and applicable safety codes. Shut off the gas supply at the cylinder valve before making or breaking any connections. Verify that all fittings are leak-free using an approved leak-detection solution before returning the system to service. Do not exceed the rated inlet pressure of 25 psig.

Technical Specifications

• Flow Range: 10-60 SCFH (Air and Nitrogen)
• Inlet Pressure: 25 psig
• Inlet Fitting: 1/4 inch NPT male
• Outlet Fitting: 5/8 inch-18 RH female
• Duty Rating: Medium Duty
• Tube Material: Impact-Resistant Lexan
• Length: 9.2 inches
• Width: 3.8 inches
• Height: 2.2 inches
• Weight: 0.85 pounds

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 1000-0268
