Victor 1000-0264 CO2 Flowmeter Regulator 30-100 Scfh

Product Description

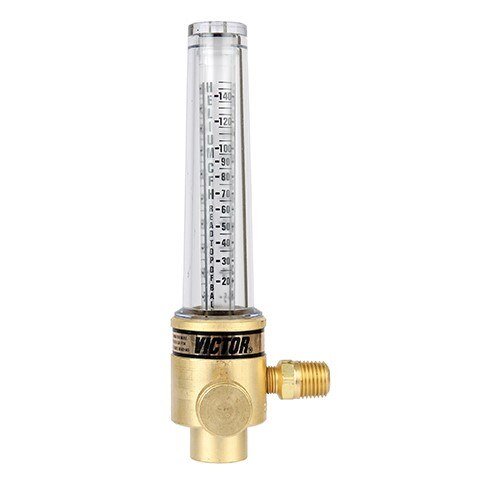

The VICTOR 1000-0264 is a medium-duty, single-gas flowmeter regulator calibrated for carbon dioxide service. It delivers a 30 to 100 SCFH flow range at an 80 psig inlet pressure, making it well suited for shielding gas delivery in MIG and TIG welding operations. The inlet connection is 1/4 inch NPT male and the outlet is 5/8 inch-18 RH female. The flow tube and outer tube are constructed from impact-resistant Lexan polycarbonate, and the cover tube incorporates built-in overpressure protection. This unit is pressure compensated to minimize flow surge during low-demand cycles.

This flowmeter regulator is used in industrial fabrication, light fabrication, structural steel fabrication, and repair and maintenance environments where precise CO2 shielding gas flow control is required. It is a single-gas device calibrated specifically for carbon dioxide and is not interchangeable for use with other gases. Typical installations include bench welding stations and portable MIG or TIG setups in shops and field service environments where consistent shielding gas coverage is critical to weld quality.

Key Features

• 30 to 100 SCFH flow range calibrated for carbon dioxide
• 80 psig maximum inlet pressure rating
• Impact-resistant Lexan flow tube and outer tube for durability in demanding shop environments
• Cover tube includes integrated overpressure protection
• Pressure compensated design reduces flow surge at low demand
• 1/4 inch NPT male inlet and 5/8 inch-18 RH female outlet fittings

Compatibility

Designed for use with carbon dioxide shielding gas in MIG and TIG welding applications across industrial fabrication, light fabrication, structural steel, and repair and maintenance operations.

Installation Notes

Installation should be performed by a qualified welder, welding technician, or gas system technician familiar with compressed gas equipment. Shut off the CO2 cylinder valve and relieve all line pressure before connecting or disconnecting the regulator. Inspect all fittings and threads for damage prior to installation, and verify the outlet connection matches the downstream torch or gas line fitting. Do not use thread sealant tape on regulator connections unless the fitting type specifically requires it.

Technical Specifications

• Gas Type: Carbon Dioxide (CO2)
• Flow Range: 30-100 SCFH
• Inlet Pressure: 80 psig
• Inlet Fitting: 1/4 inch NPT male
• Outlet Fitting: 5/8 inch-18 RH female
• Duty Rating: Medium Duty
• Flow Tube Material: Impact-Resistant Lexan
• Length: 2.2 inches
• Width: 3.8 inches
• Height: 9.2 inches
• Weight: 0.87 pounds

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 1000-0264
