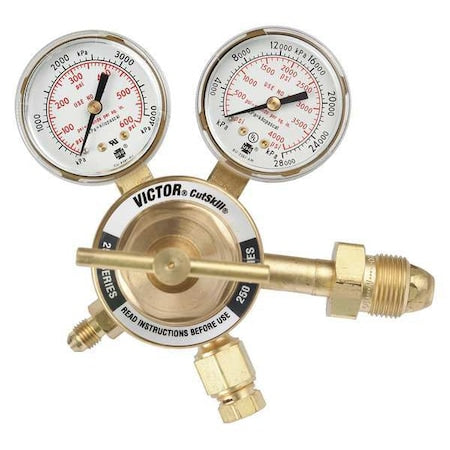

Victor 0781-9134 Gas Regulator Single Stage CGA-580 10 to 200 psi

Product Description

The Victor Gas Regulator, model 0781-9134, is a single-stage regulator designed to handle various gases like argon, helium, and nitrogen. It manages outlet pressures between ten to two hundred psi, making it suitable for purging applications.

• Single-stage design for efficient gas flow
• Compatible with CGA 580 connections
• Constructed from durable brass with a neoprene diaphragm

Product Highlights

This gas regulator is ideal for light-duty tasks and offers robust performance under diverse conditions.

Product Information

Standard Information

• Brand: Victor
• MPN: 0781-9134

Technical Specifications

• Series: TPR250-580
• Number of Stages: Single Stage
• CGA Number: CGA 580
• Maximum Inlet Pressure: 3000 psi
• Maximum Gauge Outlet Pressure: 4000 psig
• Delivery Pressure Range: 10 to 250 psi
• Body Material: Brass
• Diaphragm Material: Neoprene
• Overall Length: 6.25 inches
• Overall Width: 6.38 inches
• Overall Height: 5.1 inches
• Outlet Connection Size: 1/4 inches - 37 Degrees Flared Tube
• Inlet Connection Size: 0.965 inches - 14 NGO (Male)
• Outlet Pressure (Maximum): 400 psi
• Outlet Pressure (Minimum): 10 psi
• Delivery: 9000 scfh
• Application: Purging
• Duty Rating: Light Duty
• Country of Origin: Mexico
