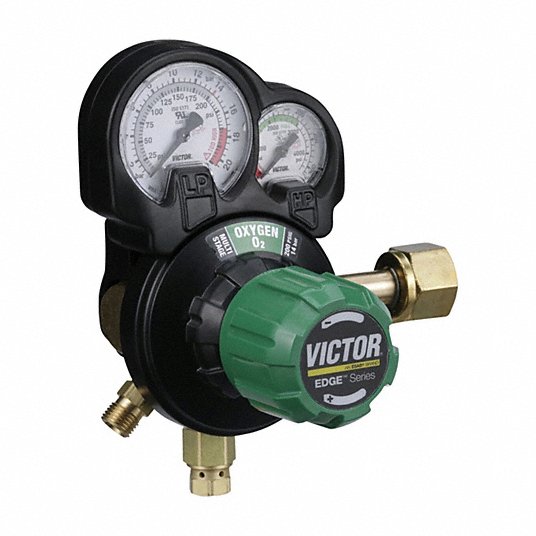

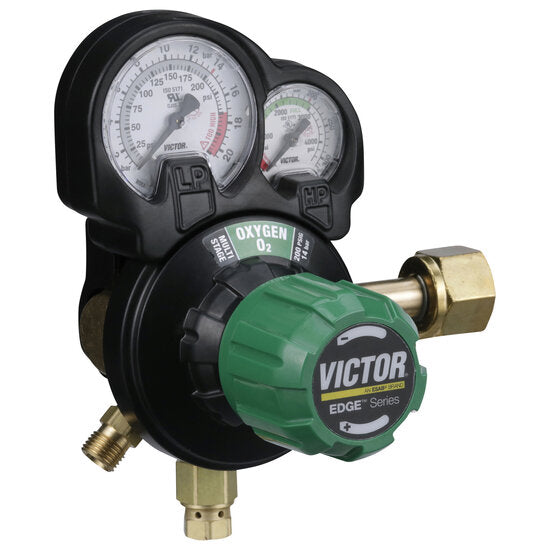

Victor 0781-5260 EDGE Series 2.0 ETS42 Regulator 200 psig replacement mpn

Product Description

The Victor 0781-5260 EDGE Series 2.0 ETS42 patented regulators are second generation, heavy-duty, high capacity two stage cylinder regulators that reset the standard for industrial regulators. New and improved gauge designs incorporate larger faced delivery gauge with high contrasted colored face for easy setting. The ETS42 includes built- in rear mounting for enhanced flexibility when mounting in panels.

• Consistent Pressure and Flow Delivery
• Fully Enclosed Visible Modular Gauges with Robust Metal Gauge Guard
• Robust Seat Gives Optimum Performance

Product Highlights

This regulator is for use with oxygen and inert gases like argon, helium, and nitrogen. Patented regulators are heavy-duty, high capacity two stage cylinder regulators.

Product Information

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0781-5260
• Country of Origin: Mexico

Technical Specifications

• Cylinder Gas: Oxygen
• Part Number: 0781-5260
• Model: ETS42-200-540
• Delivery Range: 0-200 psig
• CGA Inlet: CGA 540
• CGA Outlet: 9/16-18 RH ",B,"
• Series: EST42
• Division: High Capacity, Two Stage
• Gas: Oxygen
• Max Inlet Pressure: 200 psi
• For Gas Type: Oxygen
• Mounting Type: Cylinder
• Mounting Location: Rear
• Number of Stages: Two
• Stage: CGA
• CGA Number: 540
• Inlet Connection: CGA 540
• Inlet Connection Type: NGO
• Inlet Connection Gender: Male
• Inlet Connection Size: CGA 540
• Inlet Thread Direction: Right Hand
• Outlet Connection: 9/16"-18 M RH
• Outlet Connection Type: UNF
• Outlet Connection Gender: Male
• Outlet Connection Size: 9/16"-18
• Hose Fitting Size: B
• Outlet Thread Direction: Right Hand
• Outlet Pressure (Maximum): 200 psig
• Outlet Pressure (Minimum): 0 psig
• Body Material: Brass
• Diaphragm Material: Stainless Steel
• Control Type: Knob
• Maximum Gauge Outlet Pressure: 200 psig
• Gauge Diameter: 2-1/2 in
• Overall Depth: 4 in
• Application: Industrial and General Fabrication; Light Fabrication; Repair and Maintenance; Structural Steel Fabrication
• Brand: VICTOR
• Regulator Series: EDGE
• Gauge: 1 1/2 in
• MPN: 0781-5260
• Package: 1
• CGA Fitting: 540
• Outlet Gauge Range: 200
