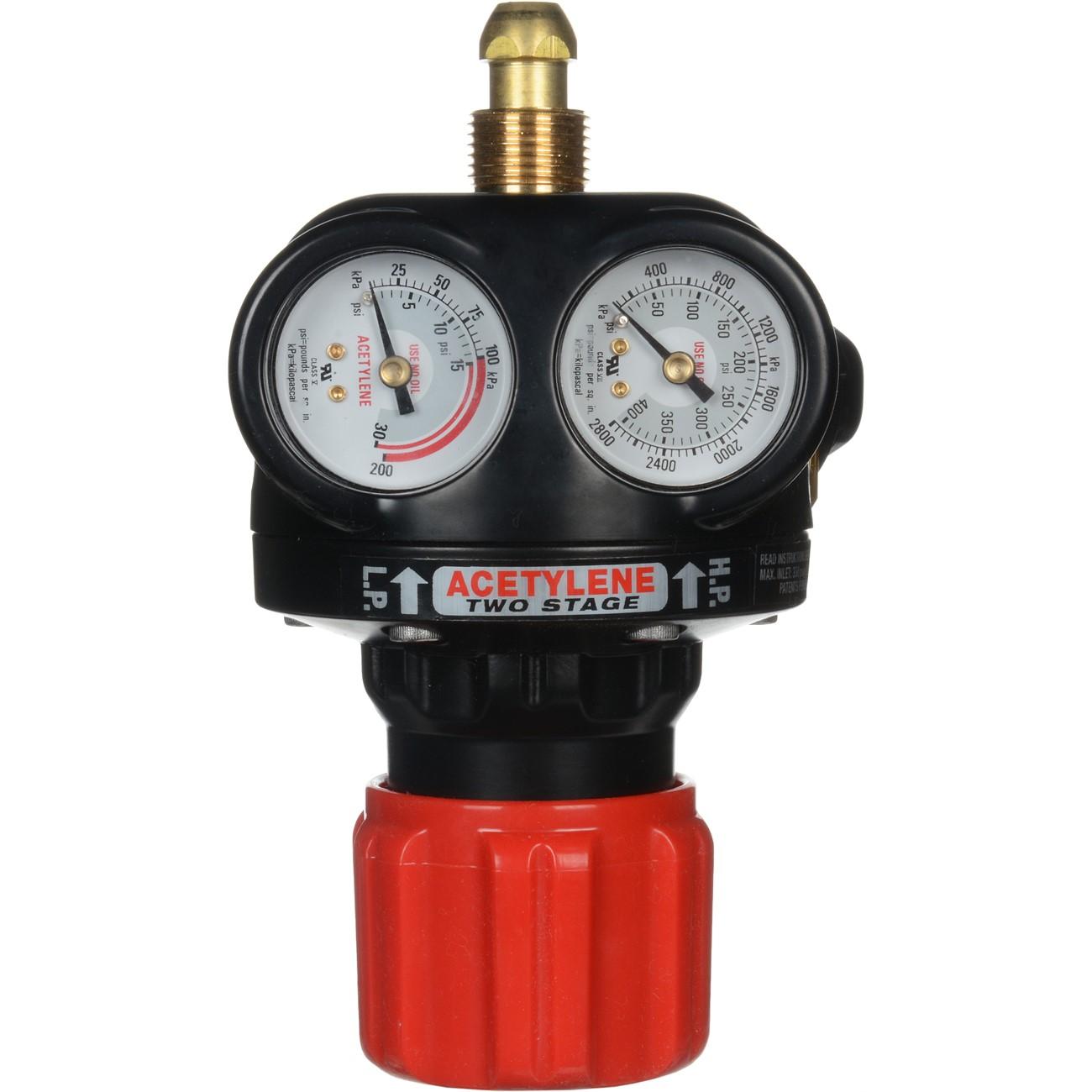

Victor 0781-5230 Two Stage Acetylene Regulator 510 Cga

Product Description

The VICTOR 0781-5230 is a two-stage, high-capacity acetylene regulator designed for applications where precise and constant outlet pressure is critical. Part of the ETS4 EDGEa Series, it delivers a 2 to 15 psig outlet range with a maximum inlet pressure of 3000 psig. The forged brass body and zinc-aluminum housing caps provide durable construction suited for industrial service. Built-in gauges are recessed into the body for impact protection, and color-coded knobs allow quick gas identification. A side-mounted adjustment knob supports natural hand and body positioning during pressure adjustment. This regulator is installed by certified welding and gas systems technicians in industrial and fabrication settings.

The 0781-5230 is suited for industrial general fabrication, light fabrication, repair and maintenance, and structural steel fabrication. It features a 510 CGA inlet connection and a 9/16 inches-18 LH(M) outlet connection. The regulator provides uniform flow performance across varying cylinder pressures, with high sensitivity and accuracy in delivery pressure. Its compact layout and single impact point design help protect elements critical to system integrity. The external self-reseating relief valve and nickel-plated bronze sintered inlet filter support reliable, consistent operation across demanding job-site conditions.

Key Features

• Two-stage regulation with 2 to 15 psig delivery range for precise pressure control
• Forged brass body with zinc-aluminum housing caps for durability under industrial use
• 510 CGA inlet connection with 9/16 inches-18 LH(M) outlet connection
• Built-in gauges recessed into body with high-impact ABS gauge guards for protection
• Color-coded SLAM impact-absorbing safety knob for quick gas ID and regulator protection
• External self-reseating relief valve and sintered nickel-plated bronze inlet filter
• Meets CGA E-4, UL 252 Listed, and ASTM G-175 promoted ignition test requirements

Compatibility

Designed as a two-stage high-capacity acetylene regulator with a 510 CGA inlet, suitable for use with acetylene cylinder systems in industrial and general fabrication applications.

Installation Notes

Installation should be performed by a qualified welding equipment technician or certified gas systems professional. Shut off the cylinder valve and relieve all pressure from the regulator before connecting or disconnecting. Inspect the CGA inlet connection and outlet fitting for damage or debris before assembly. Follow applicable compressed gas safety standards and the manufacturers documentation during installation and commissioning.
