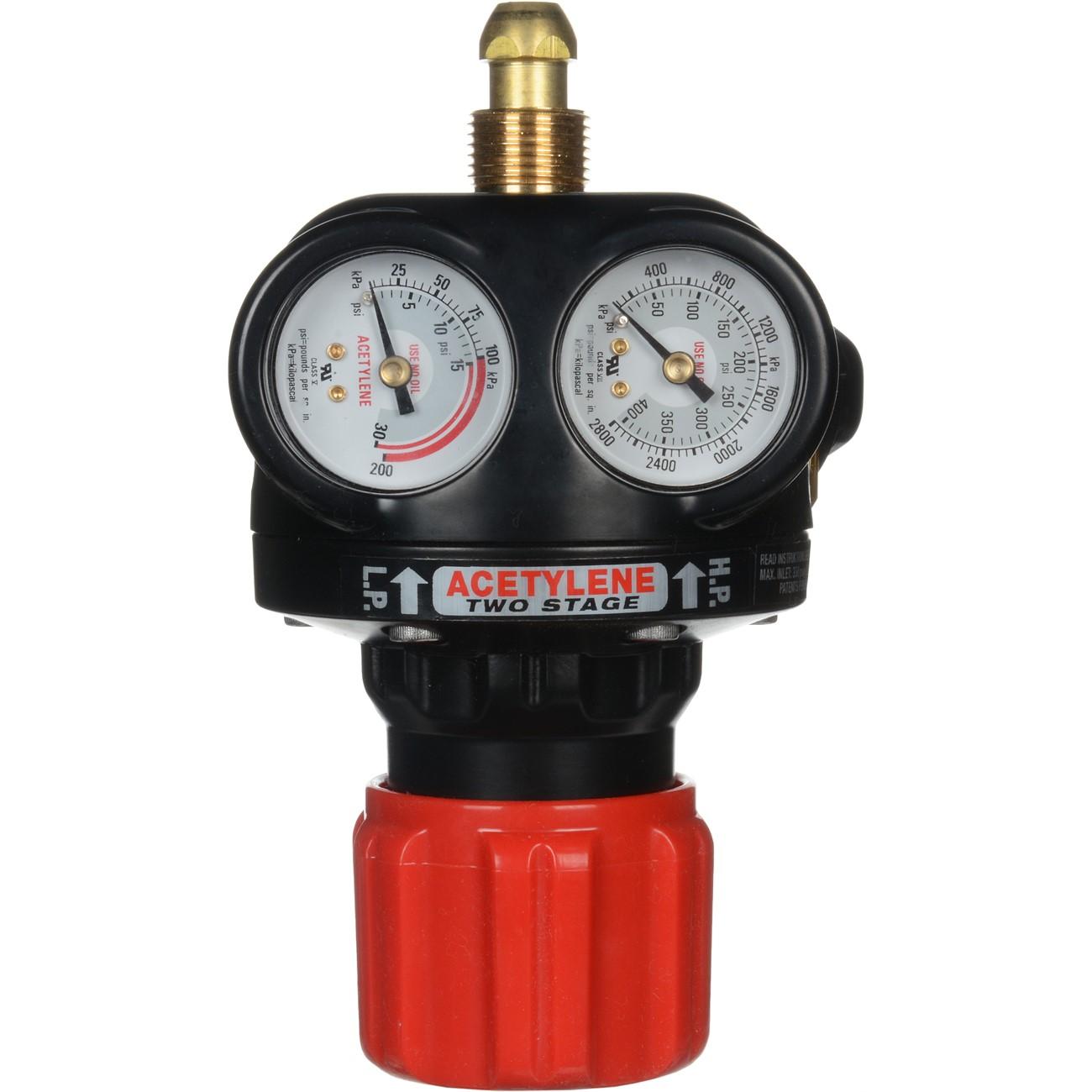

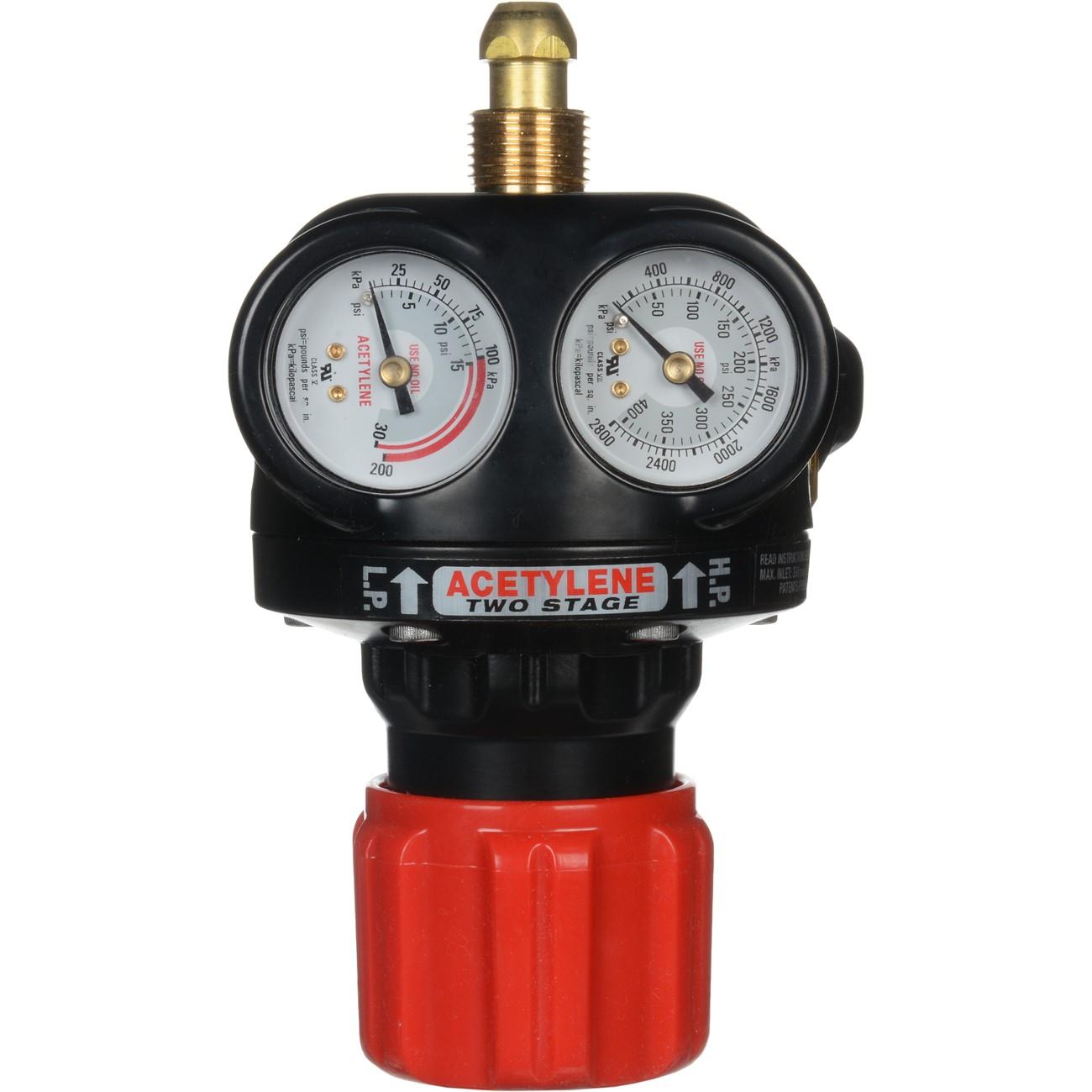

Victor 0781-5229 Two Stage Acetylene Regulator 2-15 Psig

Product Description

The VICTOR 0781-5229 is a two-stage, high-capacity acetylene regulator from the ETS4 EDGEa Series, designed for applications requiring precise and constant outlet pressure. It delivers a 2 to 15 psig outlet range and accepts a maximum inlet pressure of 3000 psig. The forged brass body, zinc-aluminum housing caps, and 0.488 Cv flow coefficient combine to provide uniform flow performance across varying cylinder pressures. A 346 CGA inlet connection and 5/8-18 LH(F) outlet connection make it ready for standard acetylene cylinder setups. Licensed HVAC and industrial gas technicians, welders, and fabricators install this regulator in professional gas distribution and cutting or welding systems.

The VICTOR 0781-5229 is suited for industrial and general fabrication, light fabrication, structural steel fabrication, and repair and maintenance operations. The side-mounted color-coded SLAMa impact-absorbing safety knob allows natural hand positioning during delivery pressure adjustment. Built-in UL-listed gauges are recessed into the body for protection, with a 4000 psig inlet gauge range and a 400 psig outlet gauge range. The compact, single impact-point layout is configured to protect elements critical to system integrity.

Key Features

• Two-stage design maintains consistent outlet pressure from 2 to 15 psig
• Forged brass body with zinc-aluminum housing caps for strength and durability
• 0.488 Cv flow coefficient for uniform flow across varying cylinder pressures
• 1.5-inch UL listed gauges with recessed, body-integrated guard and enhanced graphics
• External self-reseating relief valve and nickel-plated bronze sintered inlet filter
• Color-coded SLAMa impact-absorbing safety knob with side-mount positioning
• Meets CGA E-4, UL 252, and ASTM G-175 promoted ignition test standards

Compatibility

Designed for use with acetylene gas cylinders equipped with a 346 CGA inlet connection; suitable for industrial welding, cutting, and general fabrication systems requiring a high-capacity two-stage regulator.

Installation Notes

Installation should be performed by a qualified welding or industrial gas technician familiar with compressed gas safety practices. Shut off the cylinder valve and bleed all pressure from the system before connecting or disconnecting the regulator. Inspect the inlet connection and filter for contamination before attaching to the cylinder, and never use oil or grease on acetylene regulator fittings. Verify all connections for leaks with an approved leak-detection solution before returning the system to service.

Technical Specifications

• Gas Type: Acetylene
• Regulator Stages: Two Stage
• Outlet Pressure Range: 2 to 15 psig
• Maximum Inlet Pressure: 3000 psig
• Inlet Gauge Range: 4000 psig
• Outlet Gauge Range: 400 psig
• Cv Flow Coefficient: 0.488
• Inlet Connection: 346 CGA
• Outlet Connection: 5/8-18 LH(F)
• Diaphragm: 2.7 inches fabric reinforced neoprene
• Gauge Size: 1.5 inches
• Body Material: Forged Brass
• Housing Caps: Zinc-Aluminum
• Dimensions: 10.1 inches x 7.8 inches x 5.3 inches
• Weight: 5.25 pounds
• Certifications: CGA E-4, UL 252, ASTM G-175
• Warranty: Five Years

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0781-5229
