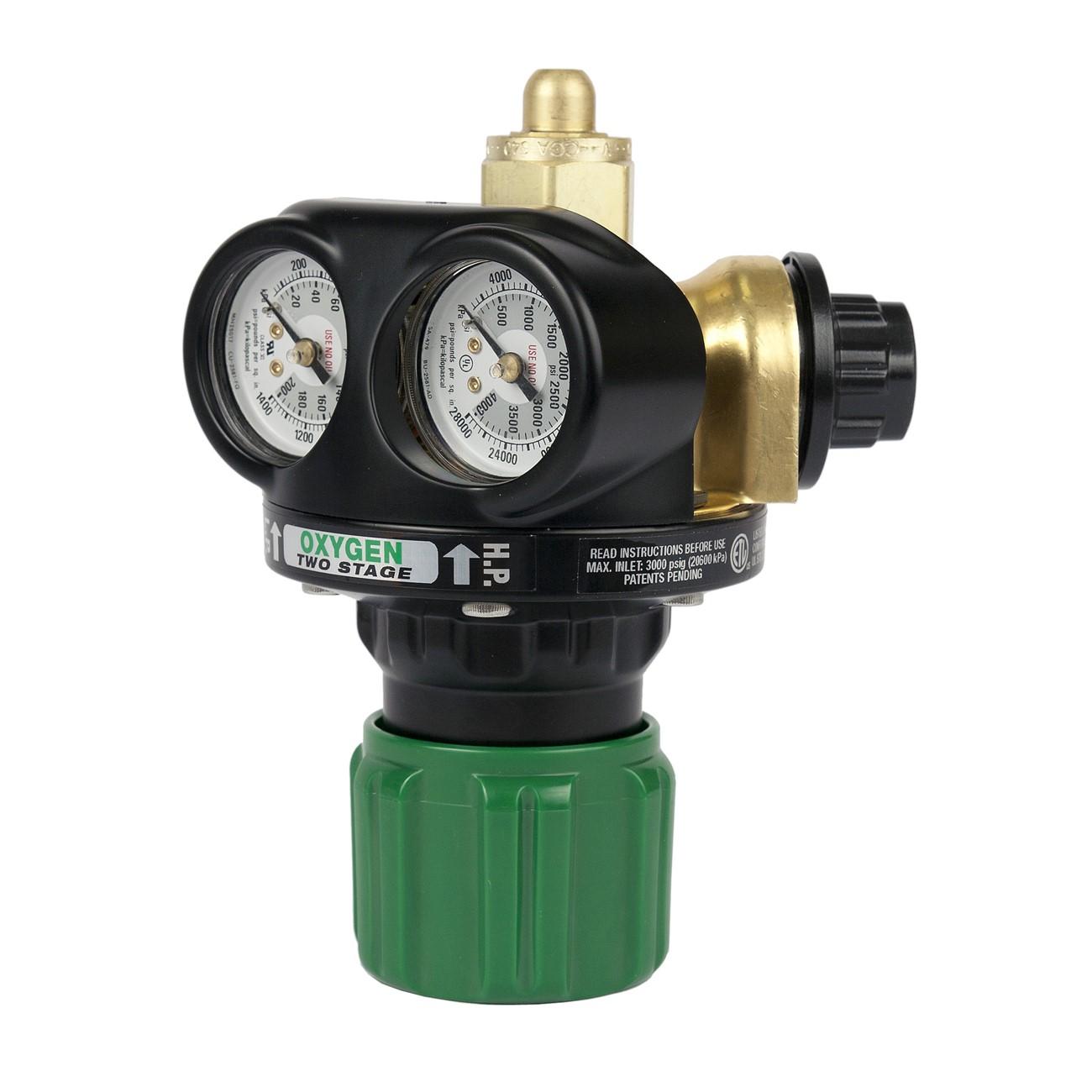

Victor 0781-5219 Two Stage High Capacity Oxygen Regulator

Product Description

The VICTOR 0781-5219 is a two-stage, high-capacity oxygen regulator designed for applications that demand precise and constant outlet pressure. Part of the ETS4 EDGE Series, it features a forged brass body with zinc-aluminum housing caps and a 2.7-inch fabric-reinforced neoprene diaphragm. The inlet accepts up to 3000 psig via a CGA 540 connection, and the delivery range spans 10 to 200 psig through a 9/16-inch-18 RH(M) outlet. A 0.488 Cv flow coefficient ensures uniform flow performance across varying cylinder pressures. Installed by qualified welding and gas supply technicians, this regulator suits industrial cutting, welding, and fabrication setups where reliable oxygen delivery is critical.

The 0781-5219 is suited for industrial and general fabrication, light fabrication, structural steel fabrication, and repair and maintenance applications. Its side-mounted SLAM impact-absorbing safety knob allows natural hand positioning during pressure adjustment, and the recessed, color-coded gauges with enhanced graphics support quick identification and safe operation in busy shop or field environments. The 1.5-inch UL-listed gauges provide a 4000 psig inlet range and a 400 psig outlet range for clear, at-a-glance monitoring.

Key Features

• Two-stage design maintains stable delivery pressure from 10 to 200 psig across varying inlet pressures
• Forged brass body with zinc-aluminum housing caps for strength and corrosion resistance
• CGA 540 inlet connection with 9/16-inch-18 RH(M) outlet connection
• 0.488 Cv flow coefficient for uniform, high-capacity flow performance
• External self-reseating relief valve and nickel-plated bronze sintered inlet filter
• Color-coded SLAM impact-absorbing safety knob protects regulator internals
• Meets CGA E-4, UL 252, and ASTM G-175 promoted ignition test requirements

Compatibility

Designed as an OEM-style replacement or direct-install two-stage oxygen regulator compatible with CGA 540 cylinder valves, typical of high-pressure oxygen cylinders used in industrial welding and cutting systems.

Installation Notes

Installation should be performed by a qualified gas equipment technician or welder familiar with compressed oxygen systems. Close the cylinder valve and fully release system pressure before connecting or removing the regulator. Inspect the CGA 540 inlet fitting and seat for damage or contamination prior to installation. Never use oil, grease, or thread sealant on oxygen regulator fittings, as these materials present a serious fire and explosion hazard.

Technical Specifications

• Series: ETS4 EDGE
• Regulator Type: Two Stage High Capacity
• Gas Service: Oxygen
• Inlet Pressure (Max): 3000 psig
• Outlet Delivery Range: 10 to 200 psig
• Flow Coefficient (Cv): 0.488
• Inlet Connection: CGA 540
• Outlet Connection: 9/16 inches-18 RH(M)
• Diaphragm: 2.7 inches fabric-reinforced neoprene
• Inlet Gauge Range: 4000 psig
• Outlet Gauge Range: 400 psig
• Gauge Size: 1.5 inches UL listed/recognized
• Body Material: Forged brass
• Housing Cap Material: Zinc-aluminum
• Dimensions: 6.85 inches x 4.72 inches x 4.4 inches
• Package Dimensions: 8.8 inches x 8 inches x 8.5 inches
• Weight: 5.45 pounds
• Certifications: CGA E-4, UL 252, ASTM G-175
• Warranty: Five years

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0781-5219
