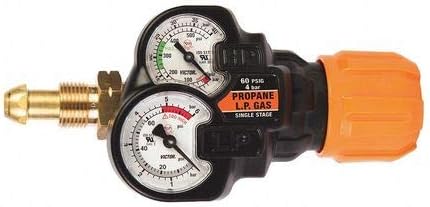

Victor 0781-3631 ESS32-60-510LP EDGE 2.0 Regulator

Product Description

The Victor 0781-3631 ESS32-60-510LP EDGE 2.0 Regulator is designed for reliable performance in gas regulation. This single-stage regulator can handle a delivery pressure range from two to forty psi for use with natural gas and propane applications.

• Large and easy-to-read delivery gauge for simplified pressure monitoring.
• Robust design includes a strong metal guard to protect the gauge.
• Color-coded knobs enhance ease of operation.

Product Highlights

This regulator offers consistent pressure and flow delivery, designed for heavy-duty use.

Product Information

Standard Information

• Manufacturer: Victor
• Item Model Number: 0781-3631

Technical Specifications

• Body Material: Brass
• Control Type: Knob
• Diaphragm Material: Neoprene
• Inlet Connection: CGA-510LP
• Outlet Connection: 9/16-18 Male UNF
• Maximum Inlet Pressure: 350 psi
• Maximum Gauge Outlet Pressure: 400 psig
• Application: General Purpose
• Overall Dimensions: 4 in height, 6 in width
