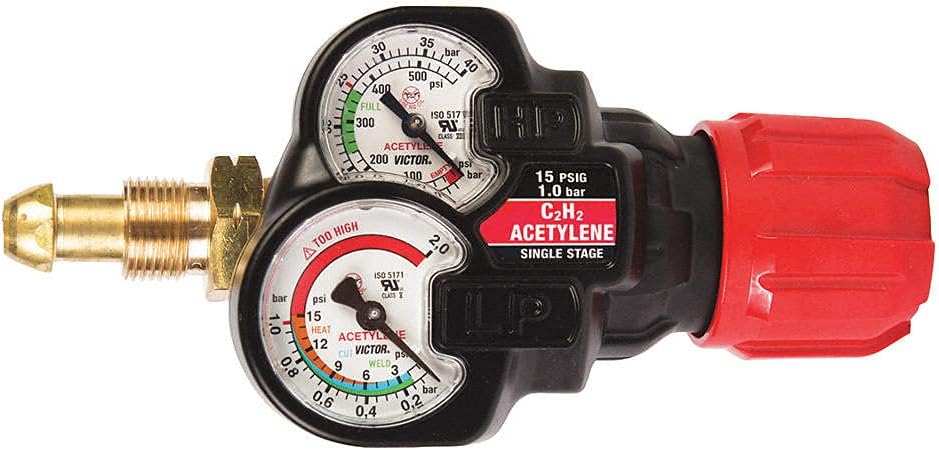

Victor 0781-3628 ESS32-15-510 EDGE 2.0 Regulator

Product Description

The Victor 0781-3628 ESS32-15-510 EDGE 2.0 Regulator is designed for reliable gas regulation. This single-stage regulator is compatible with acetylene and features an adjustable delivery pressure range from two to fifteen psi.

• Fully enclosed and visible modular gauges for clarity.
• Durable construction with a robust metal gauge guard.
• Large delivery gauge of two inches for easy reading.

Product Highlights

This regulator ensures consistent pressure and flow for better efficiency.

Product Information

Standard Information

• Manufacturer: Victor
• Model Number: 0781-3628

Technical Specifications

• Gas Type: Acetylene
• Maximum Inlet Pressure: 3,000 psig
• Maximum Gauge Outlet Pressure: 3,000 psig
• Control Type: Knob
• Inlet Connection Type: NGO
• Inlet Connection Size: 0.965 In.-14
• Outlet Pressure (Maximum): 15 psig
• Outlet Connection Size: 9/16 In.-18
• Body Material: Brass
• Diaphragm Material: Neoprene
• Overall Height: 4 inches
• Overall Width: 6 inches
• Overall Depth: 4 inches
• Delivery Pressure Range: 2 to 15 psi
• Country of Origin: Mexico
