Victor 0781-3627 Gas Regulator Single Stage CGA-540 5 to 125 psi

Product Description

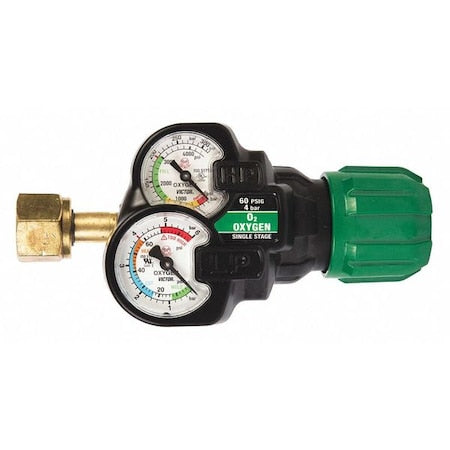

The Victor 0781-3627 is a single stage gas regulator designed for use with oxygen. This regulator features an inlet connection of CGA 540 and provides a delivery pressure range of five to one hundred twenty-five psi. It is suitable for general purpose applications and constructed from durable brass and neoprene materials.

• Maximum inlet pressure of four thousand psi.
• Includes a two-inch gauge size for precise readings.
• Control type utilizes a knob for ease of adjustment.

Product Highlights

Victor regulators are built for reliability in industrial settings where oxygen delivery is essential.

Product Information

Standard Information

• Body Material: Brass
• Diaphragm Material: Neoprene

Technical Specifications

• Regulator Series: Edge 2.0 ESS32
• Inlet Connection Type: NGO
• Inlet Connection Size: 0.965-14
• Outlet Connection Type: UNF
• Outlet Connection Size: 9/16-18
• Maximum Gauge Outlet Pressure: 4,000 psig
• Outlet Pressure (Maximum): 60 psig
• Application: General Purpose
• Country of Origin: Mexico
