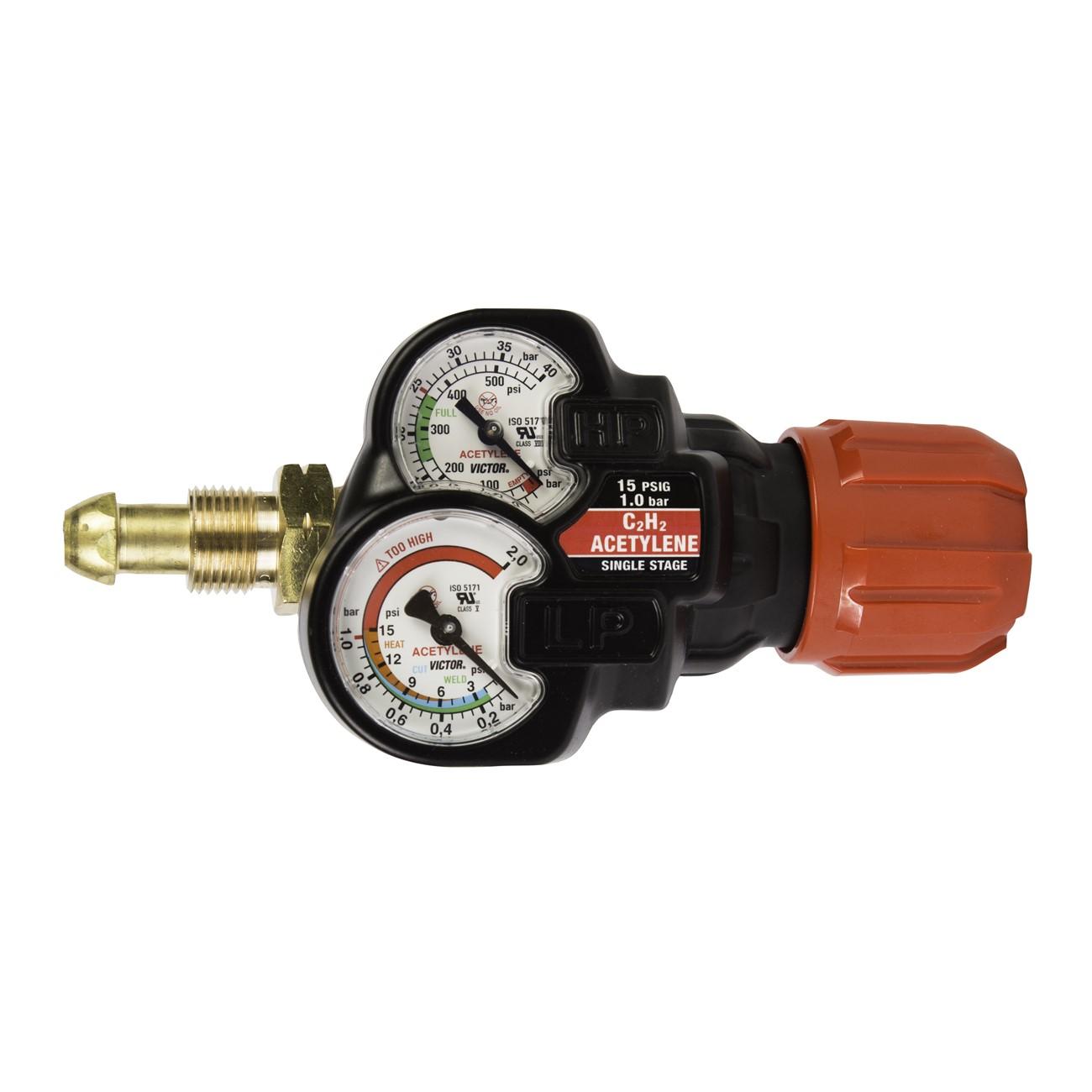

Victor 0781-3605 Single Stage Acetylene Regulator 2-60 Psig

Product Description

The VICTOR 0781-3605 is a heavy-duty, high-capacity single-stage cylinder regulator designed for acetylene service. Part of the VICTOR EDGE Series 2.0 line, it delivers consistent pressure and flow across an output range of 2-60 psig. The regulator features a stainless steel diaphragm, a robust seat for stable performance, and a SLAM knob that absorbs impact in the event of a cylinder fall. It is intended for industrial and trade environments and is installed by qualified welding and gas system technicians.

The 0781-3605 suits demanding acetylene applications across a wide range of industries and job types. Common install scenarios include light and heavy fabrication shops, automotive repair bays, civil construction sites, offshore oil operations, railcar service, ship and barge building, and general repair and maintenance work. The single-stage design provides straightforward operation and setup, making it well suited for high-throughput production environments as well as field service situations.

Key Features

• Single-stage design with 2-60 psig delivery range for consistent output pressure
• Extra-large 2.5-inch (63.5 mm) delivery gauge with high-contrast color face for easy reading and pressure setting
• Stainless steel diaphragm for durability and corrosion resistance in acetylene service
• Fully enclosed modular gauges with robust metal gauge guards for protection in industrial environments
• Color-coded, ergonomic knob design for comfortable and intuitive adjustment
• SLAM knob absorbs impact in the event of a cylinder fall, protecting internal components

Compatibility

Designed as an OEM-style single-stage acetylene cylinder regulator for industrial and heavy-duty welding and cutting gas systems requiring a 2-60 psig delivery range.

Installation Notes

Installation and service of acetylene cylinder regulators must be performed by a qualified gas system technician or certified welder familiar with compressed gas safety practices. Shut off the cylinder valve and bleed all pressure from the system before removing or installing the regulator. Inspect the cylinder valve outlet and regulator inlet for damage or debris before making connections. Follow applicable OSHA compressed gas regulations and manufacturer guidelines throughout installation and commissioning.

Technical Specifications

• Regulator Type: Single Stage
• Gas Type: Acetylene
• Delivery Pressure Range: 2-60 psig
• Delivery Gauge Diameter: 2.5 inches (63.5 mm)
• Diaphragm Material: Stainless Steel
• Length: 5.4 inches
• Width: 5.7 inches
• Height: 5.3 inches
• Weight: 4 pounds
• UPC: 716352599610

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0781-3605
