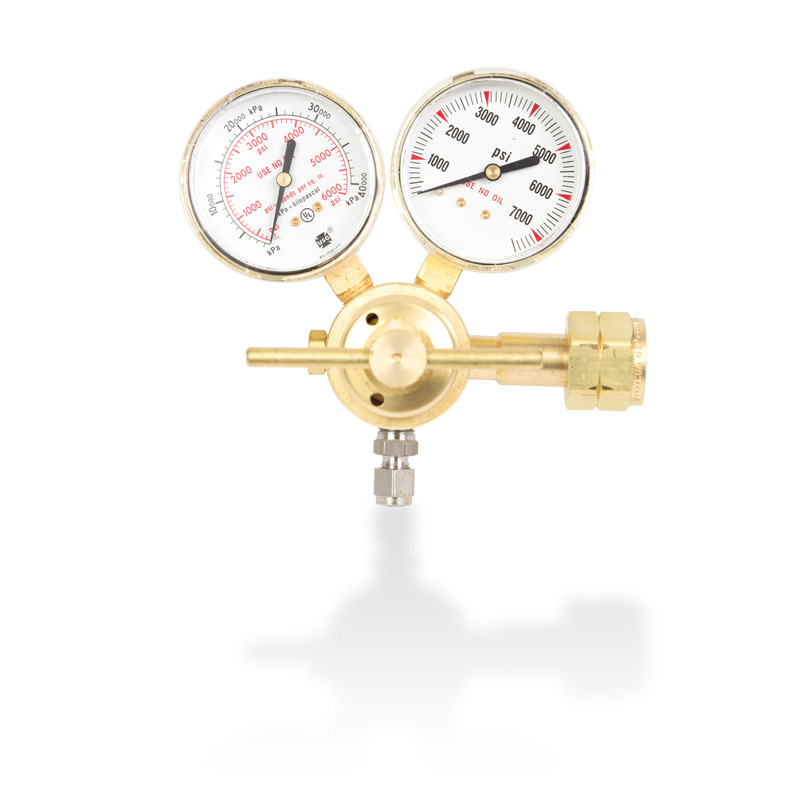

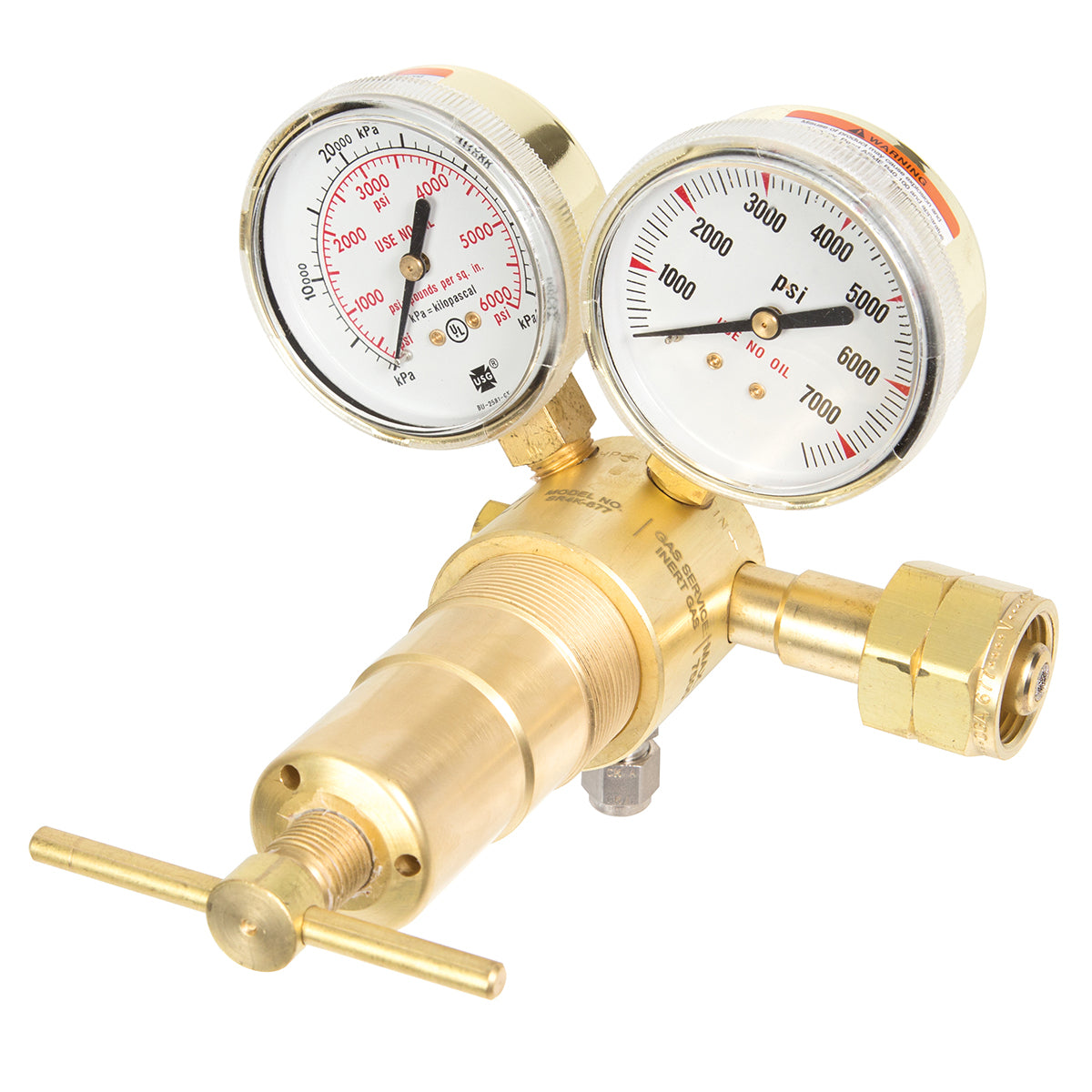

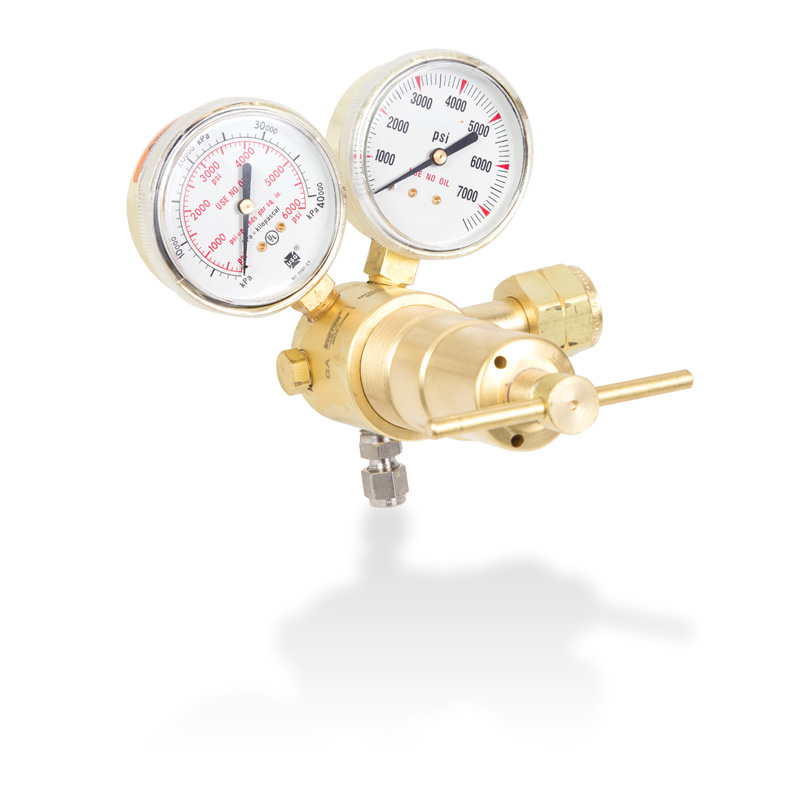

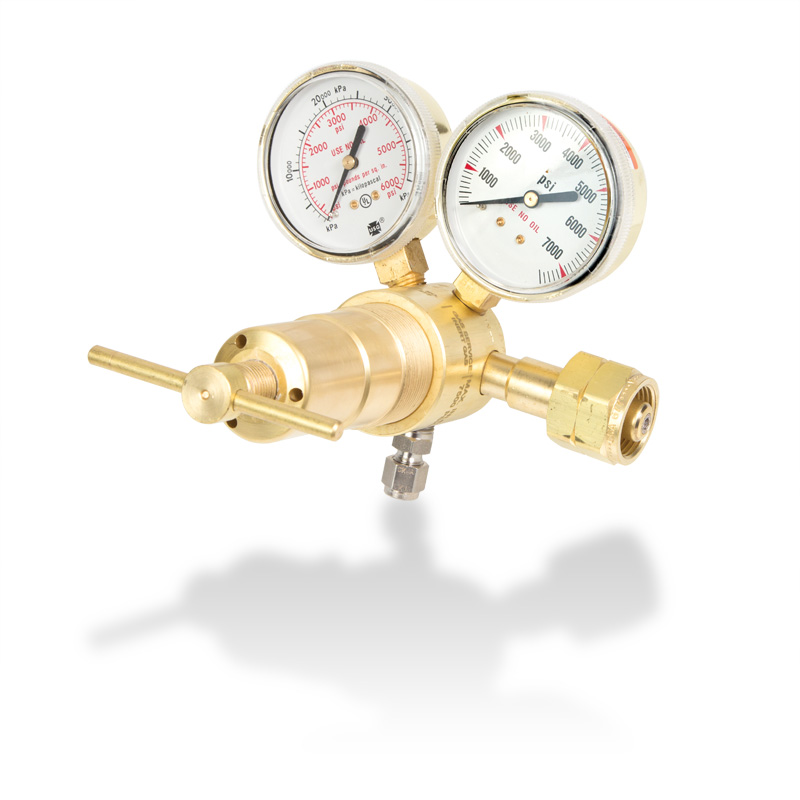

VICTOR 0781-1473 SR4K-677 Heavy Duty/High Capacity Inert Gas Single Stage Regulator, CGA - 677

Product Description

The VICTOR 0781-1473 SR4K-677 is a single-stage, heavy-duty, high-capacity regulator designed specifically for inert gas applications. It operates within a pressure range of three hundred to four thousand five hundred psig, making it suitable for pressure vessel and dead-end testing. This unit is built with a machined brass body and housing cap, ensuring durability under high-pressure conditions.

• Single-stage design for efficient pressure regulation
• Includes two 2 1/2 inch brass gauges
• Features a bronze sintered filter for enhanced gas purity

Product Highlights

This regulator is designed for heavy-duty applications, ensuring reliability and long service life in demanding conditions.

Product Information

Standard Information

• Brand: VICTOR
• Gas Type: Inert Gas

Technical Specifications

• Regulator Type: Single Stage Regulator
• Delivery Rate: 300 - 4500 psig
• Inlet Connection: CGA - 677
• Outlet Connection: 1/4 inch Swaglok® (Female)
• Gauge Diameter: 2 1/2 inches
• Maximum Inlet Pressure: 7500 psig
• Model: SR4K-677
• Country of Origin: Mexico
