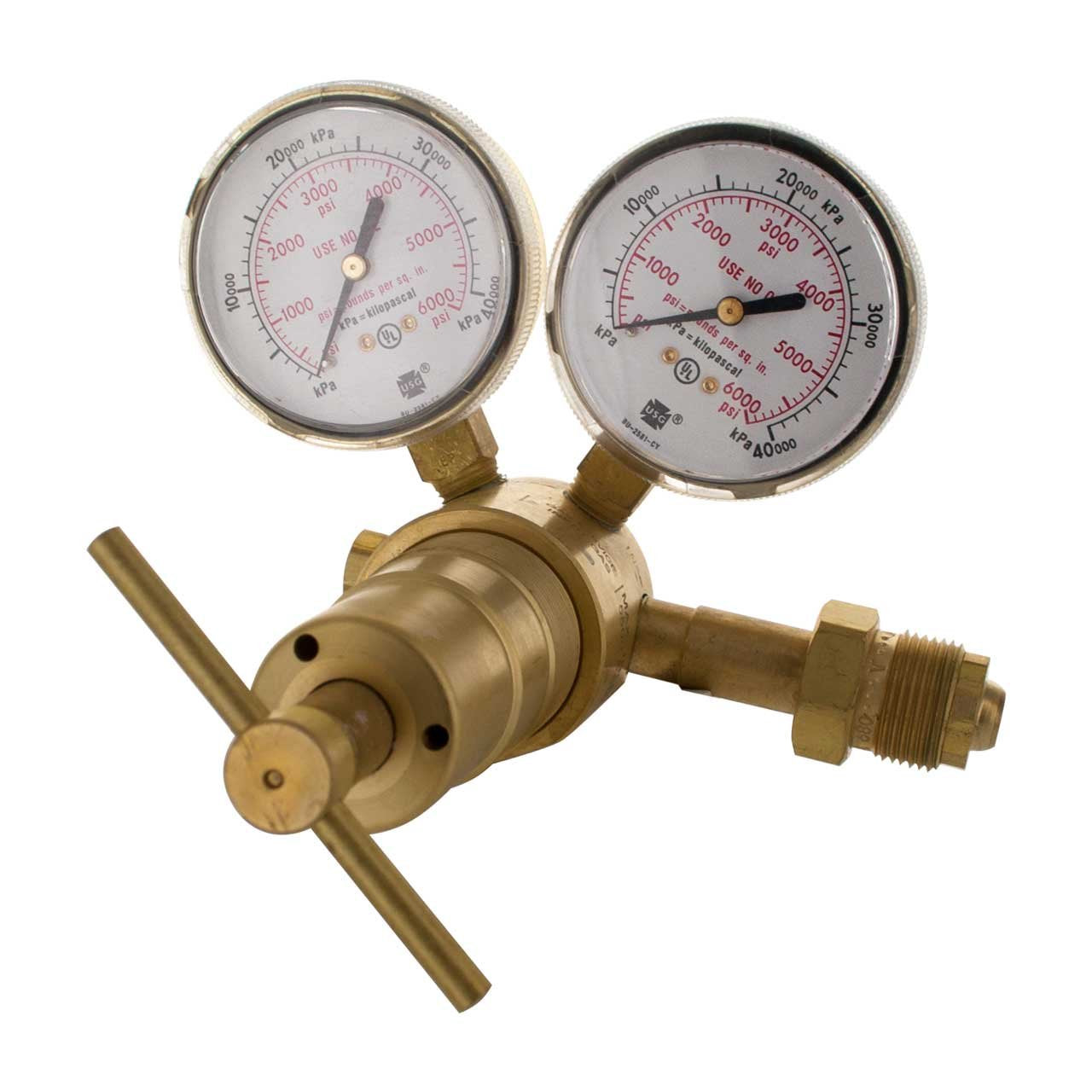

Victor 0781-1470 SR4K-680 Professional High Pressure SR 4 Regulator

Product Description

The Victor 0781-1470 SR4K-680 Professional High Pressure SR 4 Regulator is designed for heavy-duty applications involving larger cylinders. This regulator is suitable for pressure vessel testing and dead-end testing to ensure safety and reliability in operations. Constructed with a machined brass body, it features a robust housing cap and two and a half inch brass gauges for accurate monitoring.

• Designed for heavy-duty applications and for larger cylinders
• Utilizes a durable brass design with advanced construction features
• Delivery range in PSIG from 300 to 4500

Product Highlights

This regulator ensures consistent pressure control and optimal performance during demanding tasks.

Product Information

Standard Information

• Brand: Victor
• MPN: 0781-1470

Technical Specifications

• Model: SR4K-680
• Gauge Range Inlet: 6000 PSIG
• Gauge Range Outlet: 6000 PSIG
• CGA Inlet Connection: 680
• Outlet Connection: 1/4 inch swaglok
• Maximum Inlet Pressure: 5500 PSIG
• Flow Coefficient (Cv): 0.1147
