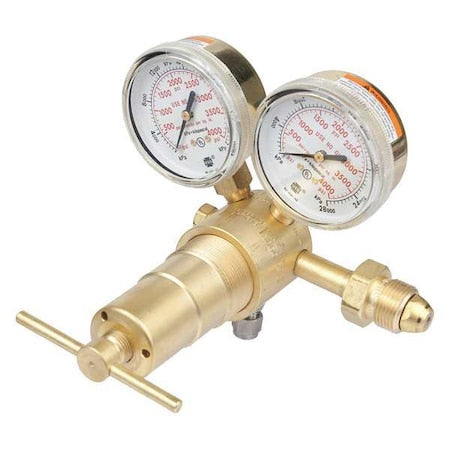

Victor 0781-1450 Gas Regulator Single Stage CGA-680 200 to 3000 psi

Product Description

The Victor 0781-1450 is a single stage gas regulator designed for use with argon and nitrogen. It operates at a delivery pressure range of two hundred to three thousand psi and is built for high pressure applications. This regulator features a T-handle control type for ease of use. The inlet connection is a CGA 680 with a female gender and a size of one point zero four five inches. The outlet connection is a one quarter inch female Swagelok.

• Single stage design for reliable performance
• Compatible with argon, helium, and nitrogen gases
• Maximum gauge outlet pressure of six thousand psig

Product Highlights

Designed for heavy-duty use, the Victor 0781-1450 gas regulator provides excellent control under high pressure conditions.

Product Information

Standard Information

• Brand: Victor
• Model Number: 0781-1450

Technical Specifications

• Application: High Pressure
• Max Inlet Pressure: 3000 psi
• Outlet Pressure (Maximum): 3000 psig
• Body Material: Brass
• Diaphragm Material: Brass
• Gauge Size: 2 1/2 in
• Inlet Connection Type: NGO
• Outlet Connection Type: Swagelok
