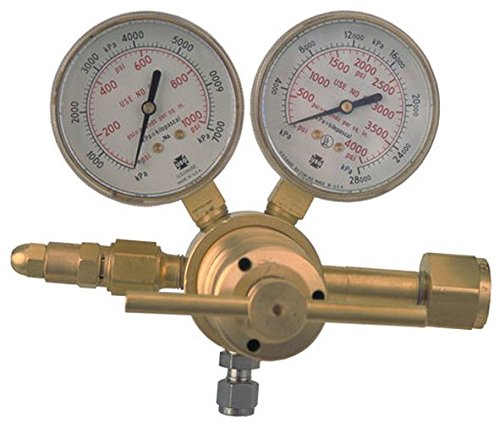

Victor 0781-1445 SR4J-540 Professional High Pressure Regulator

Product Description

The Victor 0781-1445 SR4J-540 Professional High Pressure Regulator is designed for heavy-duty applications, ideal for larger cylinders. This regulator is suitable for pressure vessel and dead-end testing, delivering pressures up to 4500 PSIG on select models. It features a machined brass body and housing cap, a two and a half inch brass gauge, and a cartridge type seat with PCTFE seat. The piston type brass actuation and Delrin cap bushing ensure smooth adjustments, while a sintered inlet bronze filter provides reliable operation.

• Heavy-duty design for larger cylinders
• Suitable for pressure testing and dead-end applications
• Panel mounting capability with necessary hardware

Product Highlights

This regulator supports high pressure applications and is constructed with durable materials for long-lasting performance.

Product Information

Standard Information

• Brand: Victor
• MPN: 0781-1445

Technical Specifications

• Application: High Pressure
• Maximum Inlet Pressure: 3000 psig
• Compatible Gas Type: Oxygen
• Body Material: Brass
• Gauge Diameter: 2.5 inches
• Overall Dimensions: 6 x 6 x 6.5 inches
• Control Type: T-Handle
• CGA Number: CGA 540
