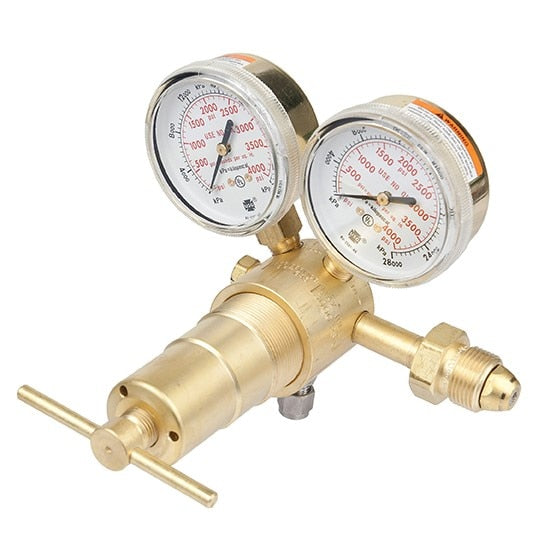

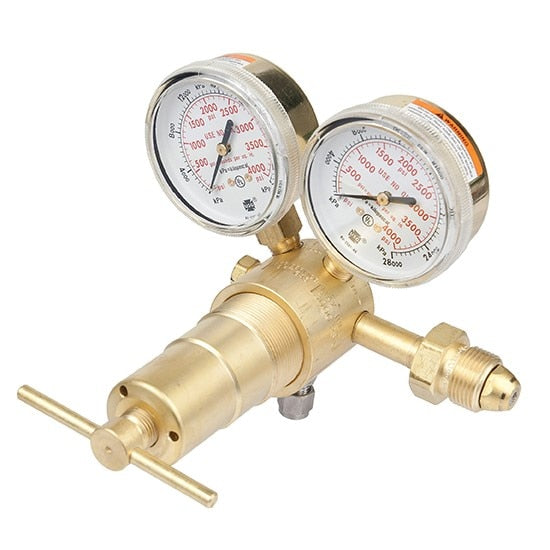

Victor 0781-1442 High Pressure Gas Regulator

Product Description

The VICTOR 0781-1442 is a heavy-duty, high-pressure piston-type gas regulator designed for demanding industrial and trade applications. Built with a machined brass body and housing cap, this regulator delivers controlled outlet pressure for methane and hydrogen gas service. A cartridge-type seat assembly with PCTFE seat provides reliable shutoff and seating performance. The piston-type actuation mechanism is brass construction, and a Delrin cap bushing allows smooth, precise pressure adjustments. Delivery pressures reach up to 4500 PSIG on applicable models. Licensed gas technicians and industrial service professionals are the primary installers of this regulator.

The VICTOR 0781-1442 is ideally suited for pressure vessel testing and dead-end testing applications where high-pressure gas delivery accuracy is critical. It is designed for use with methane and hydrogen gas. F and G range models include external adjustable relief valves. Hydrogen models feature ventable relief valves, while J Series models do not include venting. The sintered bronze inlet filter protects internal components from particulate contamination common in high-pressure cylinder supply lines.

Key Features

• Machined brass body and housing cap for durability in high-pressure service
• Cartridge-type seat assembly with PCTFE seat for reliable gas shutoff
• Piston-type actuation in brass construction
• Delrin cap bushing for smooth, consistent outlet pressure adjustment
• Sintered bronze inlet filter protects internals from contamination
• External adjustable relief valves on F and G range models; ventable relief valves on hydrogen models

Compatibility

Designed for methane and hydrogen gas service; compatible with high-pressure cylinder supply systems used in pressure vessel and dead-end testing applications.

Installation Notes

Installation should be performed by a qualified gas technician or licensed professional familiar with high-pressure gas regulator service. Shut off the cylinder valve and relieve all system pressure before connecting or disconnecting this regulator. Verify that all fittings and connections meet applicable code requirements for the gas type being used. Inspect the inlet filter and seat assembly during installation and do not over-tighten inlet connections to avoid thread or seat damage.

Technical Specifications

• Maximum Delivery Pressure: 4500 PSIG (select models)
• Body Material: Brass
• Seat Material: PCTFE
• Actuation Type: Piston
• Inlet Filter Material: Sintered Bronze
• Gauge Size: 2.5 inches
• Length: 6.1 inches
• Width: 8.8 inches
• Height: 7.4 inches
• Weight: 4.2 pounds
• Gas Compatibility: Methane, Hydrogen
• UPC: 716352082808

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0781-1442
