Victor 0781-1404 Single Stage High Pressure Regulator

Product Description

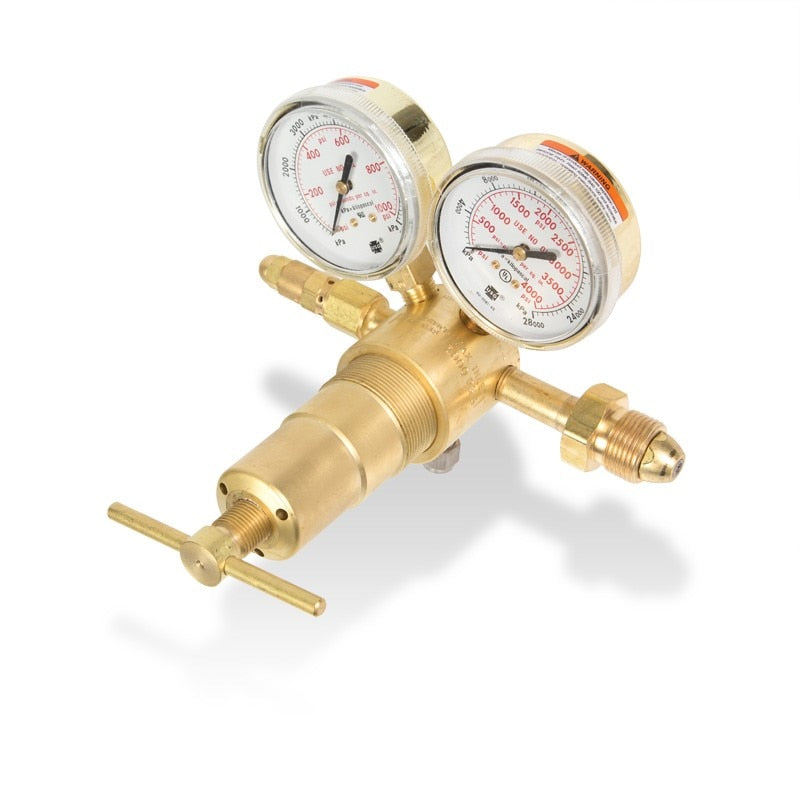

The VICTOR 0781-1404 is a heavy-duty, single-stage, high-capacity piston regulator designed for methane and hydrogen service. It delivers outlet pressure in the 50 to 750 psig range and accepts a maximum inlet pressure of 3000 psig, making it well suited for pressure vessel testing and dead-end testing applications. The body is machined brass with a brass housing cap. Actuation is piston-type brass with a Delrin cap bushing for smooth delivery pressure adjustments. The unit ships as a single piece and weighs 4.59 pounds.

This regulator is intended for industrial and specialty gas applications where high inlet pressures and precise single-stage delivery are required. Typical uses include pressure vessel testing, dead-end system testing, and other high-pressure methane or hydrogen distribution setups. The 350 CGA inlet connection with a bronze sintered filter pairs with a 1/4 inch Swagelok outlet connection fitted with a 1/4 inch stainless tube fitting. Licensed gas technicians and industrial piping professionals are the primary installers for this type of equipment.

Key Features

• Machined brass body and housing cap for durability in high-pressure service
• Piston-type actuation with Delrin cap bushing for smooth, consistent pressure adjustment
• Cartridge-type seat assembly with PCTFE seat for reliable shut-off and long service life
• 350 CGA inlet connection with bronze sintered inlet filter
• 1/4 inch Swagelok outlet with 1/4 inch stainless tube fitting
• External adjustable relief valve included on F and G range models
• Hydrogen models feature ventable relief valves

Compatibility

Designed for methane and hydrogen gas service. Inlet connection is 350 CGA. Outlet connection is 1/4 inch Swagelok with a 1/4 inch stainless tube fitting. Suitable for pressure vessel testing and dead-end testing systems operating within the stated pressure range.

Installation Notes

Installation should be performed by a qualified gas technician or industrial piping professional familiar with high-pressure gas systems. Shut off and fully depressurize the supply cylinder or source before connecting or disconnecting the regulator. Verify that all fittings and tubing are rated for the maximum inlet pressure of 3000 psig before placing the system into service. Follow applicable codes including CGA guidelines and any local regulations governing hydrogen or methane handling.

Technical Specifications

• Regulator Type: Single Stage, Piston
• Gas Service: Methane, Hydrogen
• Maximum Inlet Pressure: 3000 psig
• Delivery Pressure Range: 50 to 750 psig
• Inlet Connection: 350 CGA with bronze sintered filter
• Outlet Connection: 1/4 inch Swagelok with 1/4 inch stainless tube fitting
• Body Material: Machined Brass
• Seat Material: PCTFE
• Gauge Size: 2.5 inches brass
• Dimensions: 6.1 inches L x 7.5 inches W x 8.6 inches H
• Weight: 4.59 pounds
• UPC: 716352080637

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0781-1404
