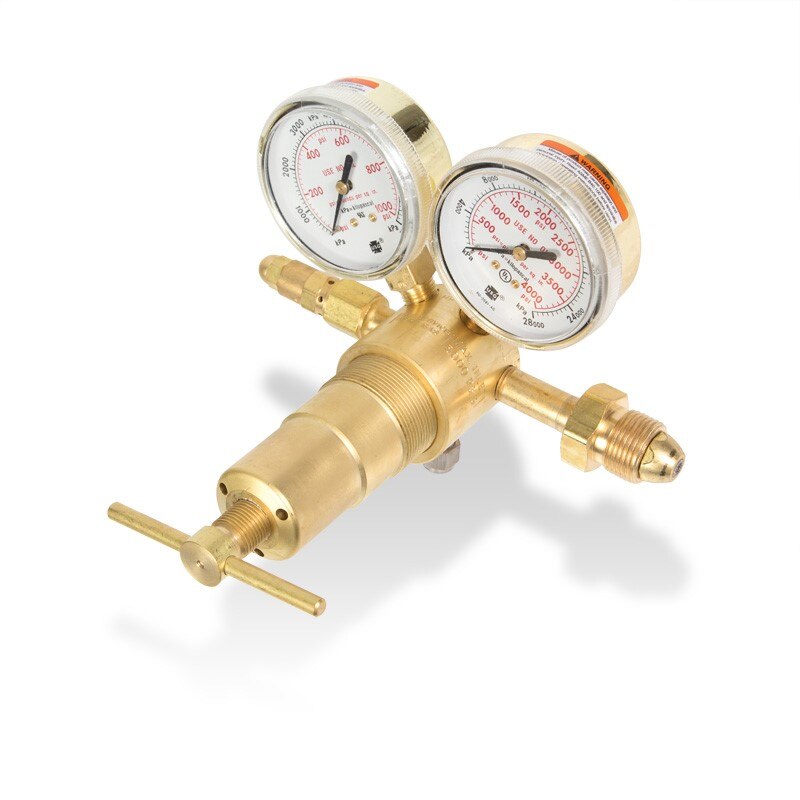

Victor 0781-1403 Single Stage High Pressure Air Regulator

Product Description

The VICTOR 0781-1403 is a heavy-duty, single-stage, high-pressure piston regulator designed for air and inert gas service in demanding pressure testing applications. Built around a machined brass body with a brass housing cap, this regulator accepts inlet pressures up to 5500 psig and delivers regulated output in the 50 to 750 psig range. A PCTFE cartridge seat assembly and brass piston with Delrin cap bushing ensure consistent, smooth pressure adjustment under load. The 347 CGA inlet connection includes a bronze sintered inlet filter, and the 1/4 inch Swagelok outlet accommodates a 1/4 inch stainless tube fitting. Two 2.5 inch brass gauges display inlet and delivery pressures at a glance. This unit is intended for installation by licensed or journeyman-level gas equipment technicians.

The 0781-1403 is built for high-pressure dead-end and pressure vessel testing environments where stable, accurate delivery pressure is critical. An external adjustable relief valve provides overpressure protection suited to the F and G range models. The sintered bronze inlet filter protects the seat assembly from particulate contamination common in compressed air supply lines. This regulator is appropriate for use in industrial test benches, pressure qualification rigs, and similar stationary high-pressure setups where a 347 CGA supply connection is present.

Key Features

• Machined brass body and housing cap for durability in high-pressure service
• Cartridge-type seat assembly with PCTFE seat for leak-tight shutoff
• Brass piston actuation with Delrin cap bushing for smooth, repeatable adjustments
• Bronze sintered inlet filter protects internal components from particulate
• External adjustable relief valve for overpressure protection
• 347 CGA inlet with bronze sintered filter and 1/4 inch Swagelok stainless tube outlet
• Dual 2.5 inch brass gauges display inlet and delivery pressure

Compatibility

Designed for use with compressed air and compatible gas supply systems equipped with a 347 CGA inlet connection and requiring a 1/4 inch Swagelok-style outlet. Suited for pressure vessel and dead-end testing applications operating within the stated inlet and delivery pressure ranges.

Installation Notes

Installation should be performed by a qualified technician familiar with high-pressure gas handling equipment and applicable codes. Depressurize and isolate the supply line completely before connecting or disconnecting the regulator. Inspect the 347 CGA inlet connection and outlet fitting for thread condition before installation, and verify that all connections are leak-free before applying full system pressure. Do not exceed the stated maximum inlet pressure of 5500 psig.

Technical Specifications

• Maximum Inlet Pressure: 5500 psig
• Delivery Pressure Range: 50 to 750 psig
• Inlet Connection: 347 CGA with bronze sintered filter
• Outlet Connection: 1/4 inch Swagelok with 1/4 inch stainless tube fitting
• Actuation Type: Single stage piston
• Body Material: Machined brass
• Seat Material: PCTFE cartridge type
• Gauge Size: 2.5 inches brass
• Length: 6.1 inches
• Width: 7.5 inches
• Height: 8.6 inches
• Weight: 4.8 pounds
• Sold As: Each
• UPC: 716352080354

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0781-1403
