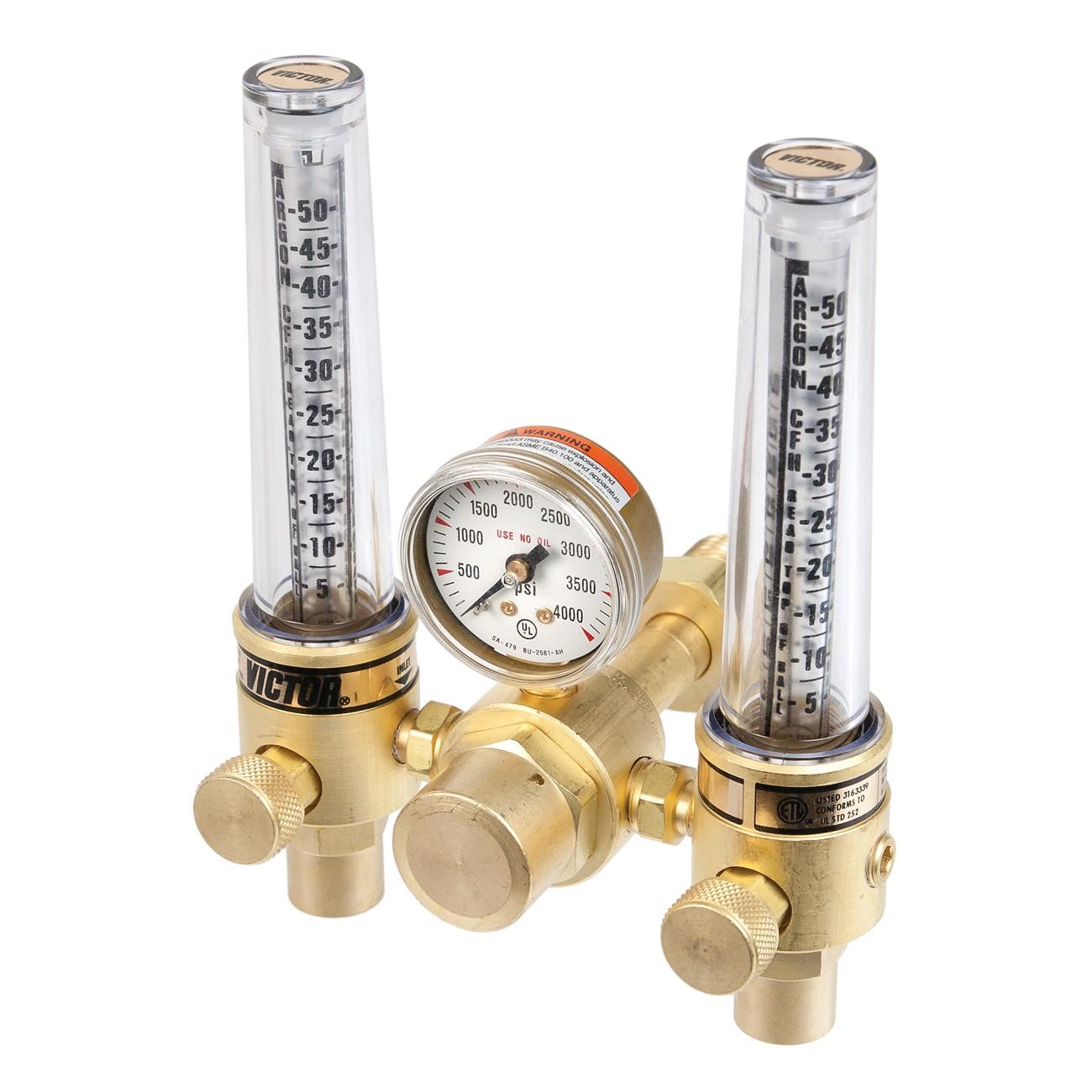

Victor 0781-1153 Regulator Flowmeter Medium-Duty Argon Helium Gas

Product Description

The Victor Regulator Flowmeter 0781-1153 is designed for use with Argon and Helium gases. This medium-duty regulator is part of the DFM 150 Series and is suitable for controlling two separate gas flows. The flowmeter delivers between five to fifty standard cubic feet per hour for Argon and twenty to one hundred fifty standard cubic feet per hour for Helium, making it ideal for welding applications.

• Maximum inlet pressure of three thousand psig
• Inlet connection is CGA 580 with a fifty-eight inlet
• Includes a brass body with a spring music wire and a brass piston

Product Highlights

This regulator is designed for the maintenance and fabrication industries, providing precision and control for gas flow. Its robust design offers long-lasting performance for dual flow processes.

Product Information

Standard Information

• Type: Flowmeter, Medium-Duty
• Gas Type: Argon, Helium

Technical Specifications

• Maximum Inlet Pressure: 3000 psig
• Flow Range Argon: 5 - 50 SCFH
• Flow Range Helium: 20 - 150 SCFH
• Dimensions: 6.1 inches x 7.5 inches x 8.6 inches
• Outlet Connection: 5/8-18 RH(F)
• Minimum Preset Pressure: 25 psig
• Body Material: Brass
• Weight: 3.25 lbs
