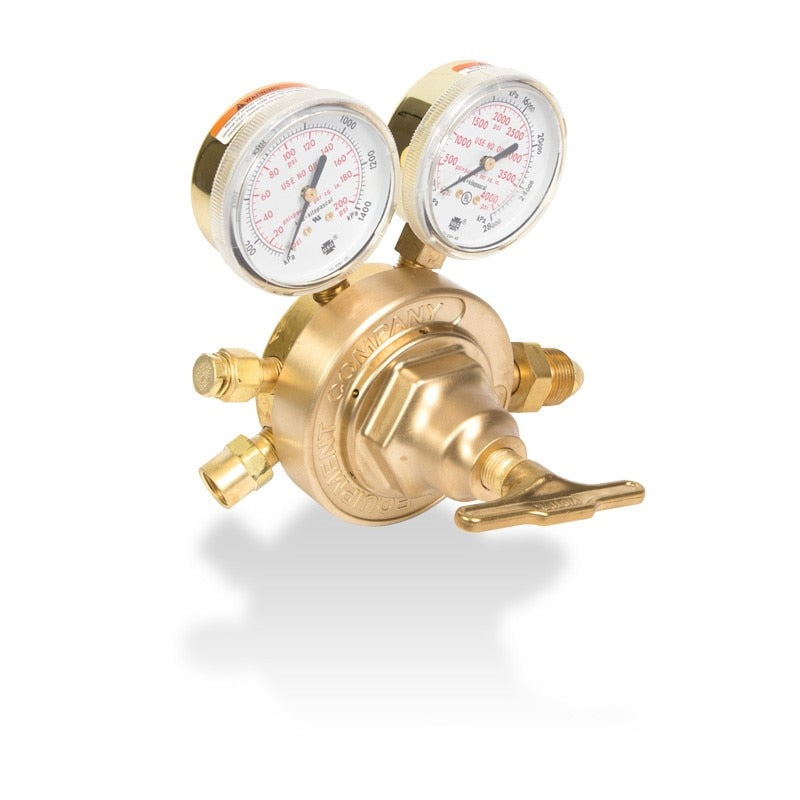

Victor 0781-0595 Regulator Heavy-Duty High Capacity Single Stage

Product Description

Victor offers the 0781-0595, a heavy-duty single stage regulator designed for high capacity applications. This regulator is ideal for settings where a stable delivery pressure is essential regardless of decreasing cylinder pressures. It delivers a delivery range of five to one hundred twenty-five psig and has a maximum inlet pressure of three hundred fifty psig.

• Die-forged brass body for enhanced strength and durability.
• Includes two and a half inch brass gauges with a four hundred psig inlet range and a two hundred psig outlet range.
• Comes with a stainless steel diaphragm for long-lasting performance.

Product Highlights

This single stage regulator ensures precision in the flow of liquefied petroleum gas. Its design includes a forged T-handle for easy adjustment and a long-lasting Delrin insert bushing.

Product Information

Standard Information

• Type: Heavy-Duty
• Gas Type: Liquefied Petroleum Gas
• Number of Stages: Single Stage
• Inlet Connection: CGA-510
• Outlet Type: 9/16-18 LH Male
• Material: Brass

Technical Specifications

• Weight: 5.7 lbs
• Length: 6.1 inches
• Width: 8.6 inches
• Height: 7.5 inches
• Flow Coefficient: 0.27 Cv
