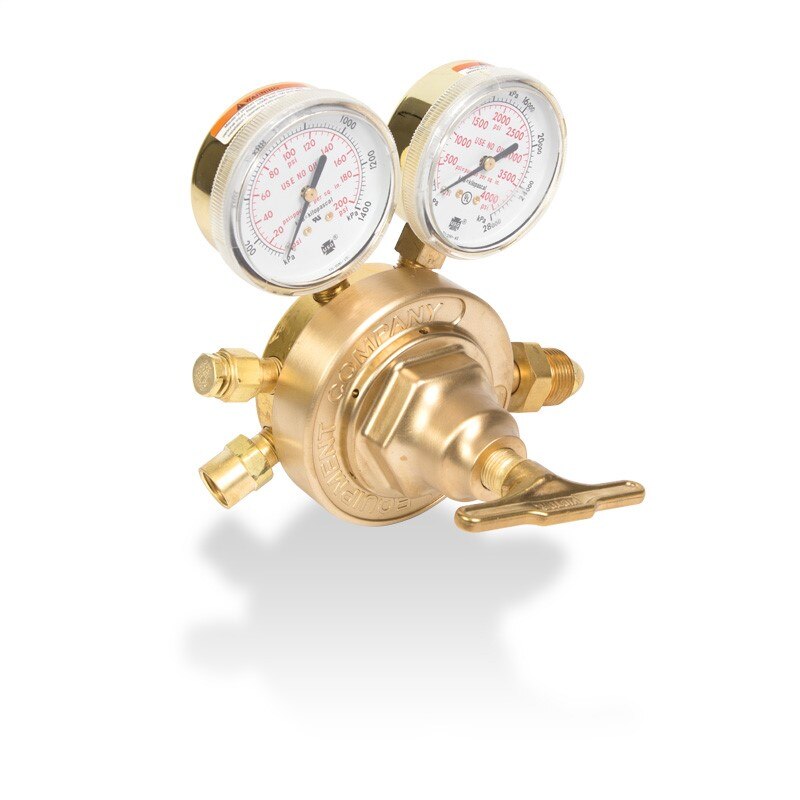

Victor 0781-0543 Regulator Heavy-Duty High Capacity Single Stage

Product Description

The Victor 0781-0543 is a heavy-duty, high-capacity single-stage regulator ideal for inert gas applications. It offers a delivery range of ten to two hundred psig, suitable for various industrial tasks. The regulator features a maximum inlet pressure of three thousand psig and is built with a die-forged brass body for enhanced strength and durability.

• Two brass gauges with ranges of four thousand inlet and four hundred outlet.
• CGA-580 inlet connection with a five-eighths inch RH(F) outlet connection.
• Durable stainless steel diaphragm for precise operation.

Product Highlights

This regulator is designed for medium to high capacity usage, providing effective flow control and reliability. With a flow coefficient of 0.27 Cv, it comes equipped with an electro-less nickel-plated bronze filter and an adjustable T-handle for ease of use.

Product Information

Standard Information

• Type: Heavy-Duty
• Number of Stages: Single Stage
• Gas Type: Inert Gas
• Inlet Connection: CGA-580
• Outlet Type: 5/8-18 RH Female
• Material: Brass

Technical Specifications

• Maximum Inlet Pressure: 3000 psig
• Delivery Range: 10 - 200 psig
• Dimensions: 7.25 x 5.13 x 7 inches
• Weight: 5.94 pounds
• Flow Coefficient: 0.27 Cv
• Gauge Range Inlet: 4000 psig
• Gauge Range Outlet: 400 psig
