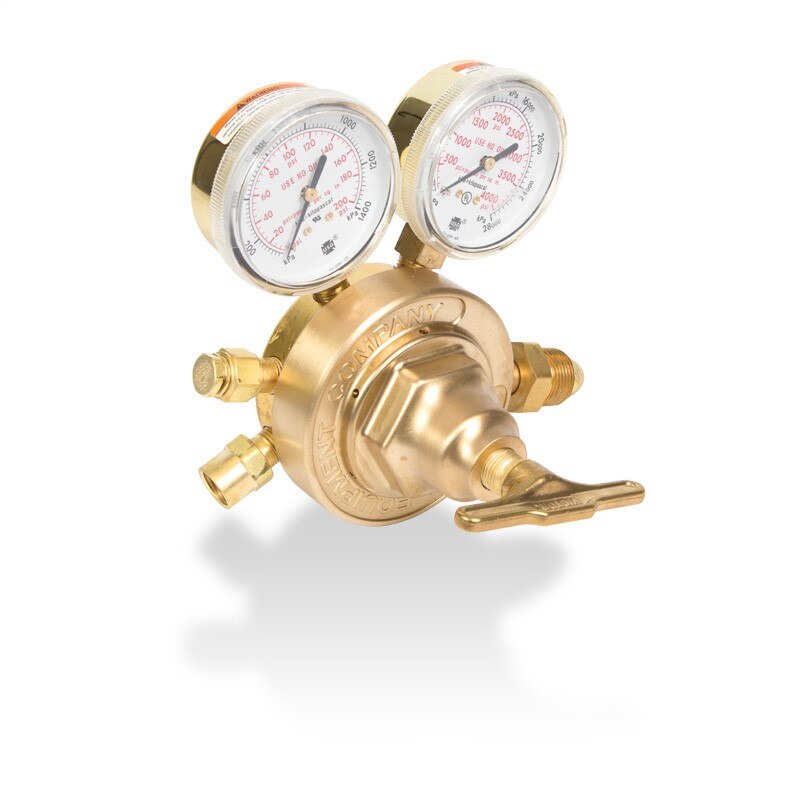

Victor 0781-0532 Regulator Heavy-Duty High Capacity Single Stage Air Gas

Product Description

The Victor 0781-0532 is a heavy-duty single stage air regulator designed for high capacity. It is ideal for applications that require consistent delivery pressure even with decreasing cylinder pressures. This regulator provides a delivery range of five to one hundred twenty-five psig and can handle an inlet pressure of up to three thousand psig.

• Constructed with a die-forged brass body for strength and durability.
• Features include two and a half inch brass gauges with a four thousand inlet gauge range and two hundred outlet gauge range.
• Comes with a stainless steel diaphragm for precise and long-lasting service.

Product Highlights

The regulator includes adjustable features and a pretested design for quality assurance, making it suitable for various industrial and commercial applications.

Product Information

Standard Information

• Type: Heavy-Duty
• Gas Type: Air
• Inlet Connection: CGA-346
• Outlet Type: 5/8-18 LH Female
• Material: Brass
• Number of Stages: Single Stage

Technical Specifications

• Maximum Inlet Pressure: 3000 psig
• Delivery Pressure Range: 5 - 125 psig
• Flow Coefficient: 0.27 Cv
• Dimensions: 7 1/4 x 5 1/13 x 7 inches
• Weight: 5.85 lbs
• Gauge Size: 2 1/2 inches
