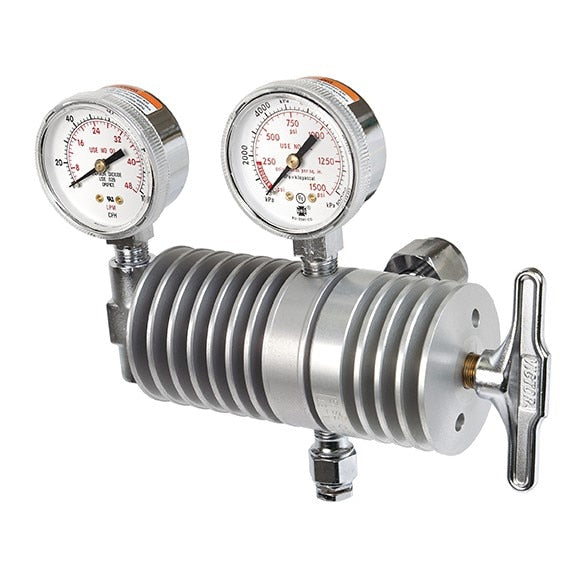

Victor 0781-0355 Regulator Flowmeter High Capacity Carbon Dioxide Gas

Product Description

The Victor Regulator with MPN 0781-0355 is designed for high-capacity carbon dioxide gas applications. This well-built regulator has a delivery range of ten to two hundred psig, ideal for core wire tasks requiring dependable performance. It can handle a maximum inlet pressure of one thousand five hundred psig.

• Includes two brass gauges with a reinforced neoprene diaphragm.
• Features a self-reseating relief valve and a stem-type seat mechanism.
• Comes with a CGA inlet connection and 5/8-18 RH outlet for extended service life.

Product Highlights

The adjustable pressure gauge with aluminum heat sink fins allows for high flow rates without freezing or fluctuating pressure.

Product Information

Standard Information

• Manufacturer: ESAB
• Brand: Victor
• Type: Flowmeter
• Gas Type: Carbon Dioxide
• Inlet Connection: CGA-032
• Outlet Type: 5/8-18 UNF (RH Female)

Technical Specifications

• Weight: 3.55
• Length: 6.2
• Width: 8.7
• Height: 7.6
• Min Qty: 1
• Delivery Range: 10 - 200 psig
• Maximum Inlet Pressure: 1500 psig
• Connection Features: Sintered filter, long-lasting service
