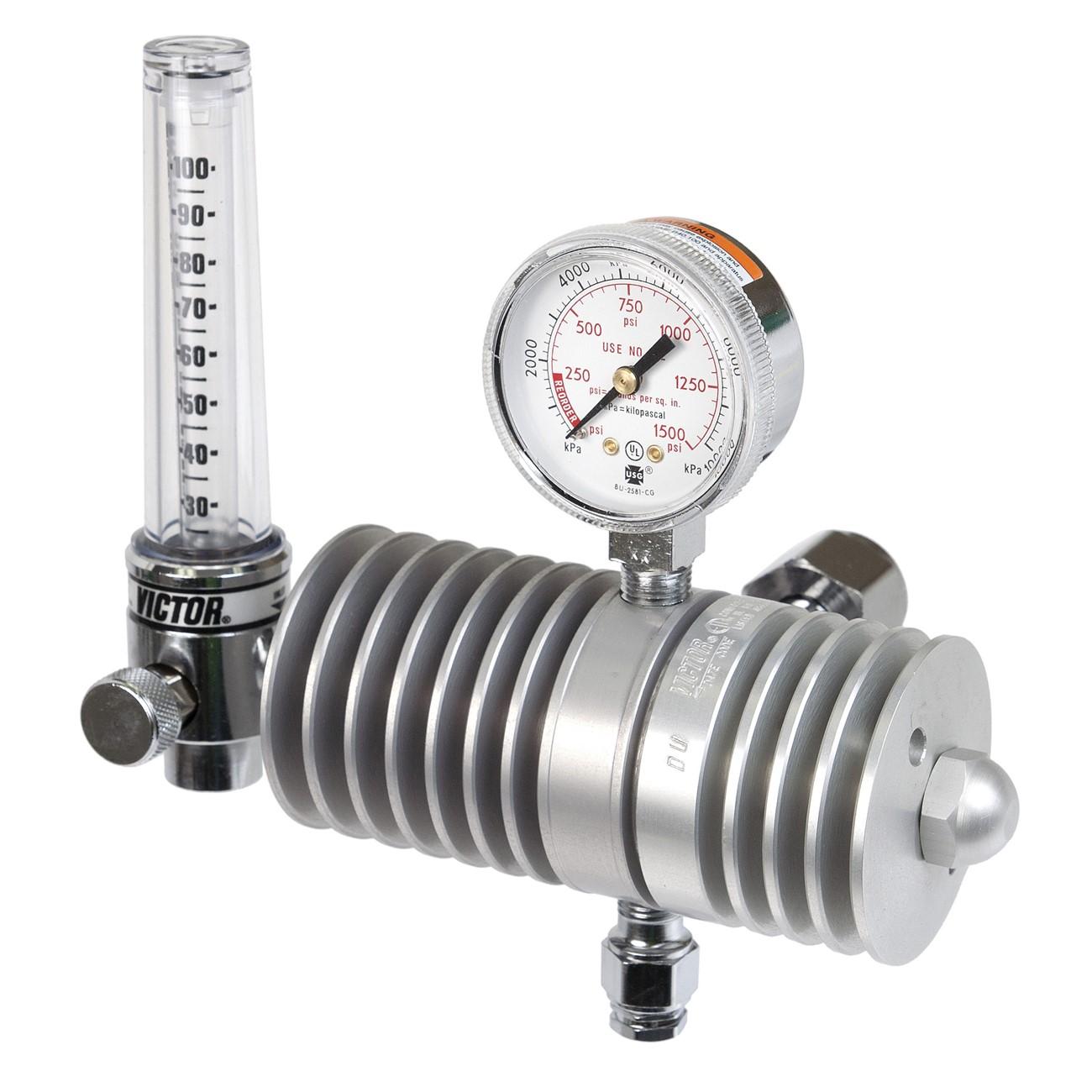

Victor 0781-0353 Regulator Flowmeter High Capacity Preset

Product Description

The Victor 0781-0353 is a high-capacity flowmeter designed for carbon dioxide use. This regulator operates with a delivery range of 25 to 100 and is preset at eighty psig. It features a maximum inlet pressure of 1500 psig and is constructed from machined aluminum. The device includes a housing cap and two brass gauges for accurate pressure readings. Its durable neoprene diaphragm measures one and three-fourth inches, ensuring reliable performance.

• High capacity for carbon dioxide applications
• Preset pressure for simplicity
• Durable construction with brass gauges

Product Highlights

This flowmeter is suitable for core wire applications and offers external self-reseating relief valve for enhanced safety.

Product Information

Standard Information

• Type: Flowmeter
• Gas Type: Carbon Dioxide

Technical Specifications

• Inlet Connection: CGA-032
• Outlet Connection: 5/8-18 UNF (RH Female)
• Dimension: 8.38 x 2.5 x 7.25 inches
• Weight: 3.58 pounds
• Manufacturer: ESAB
• Brand: Victor
• Minimum Quantity: 1
