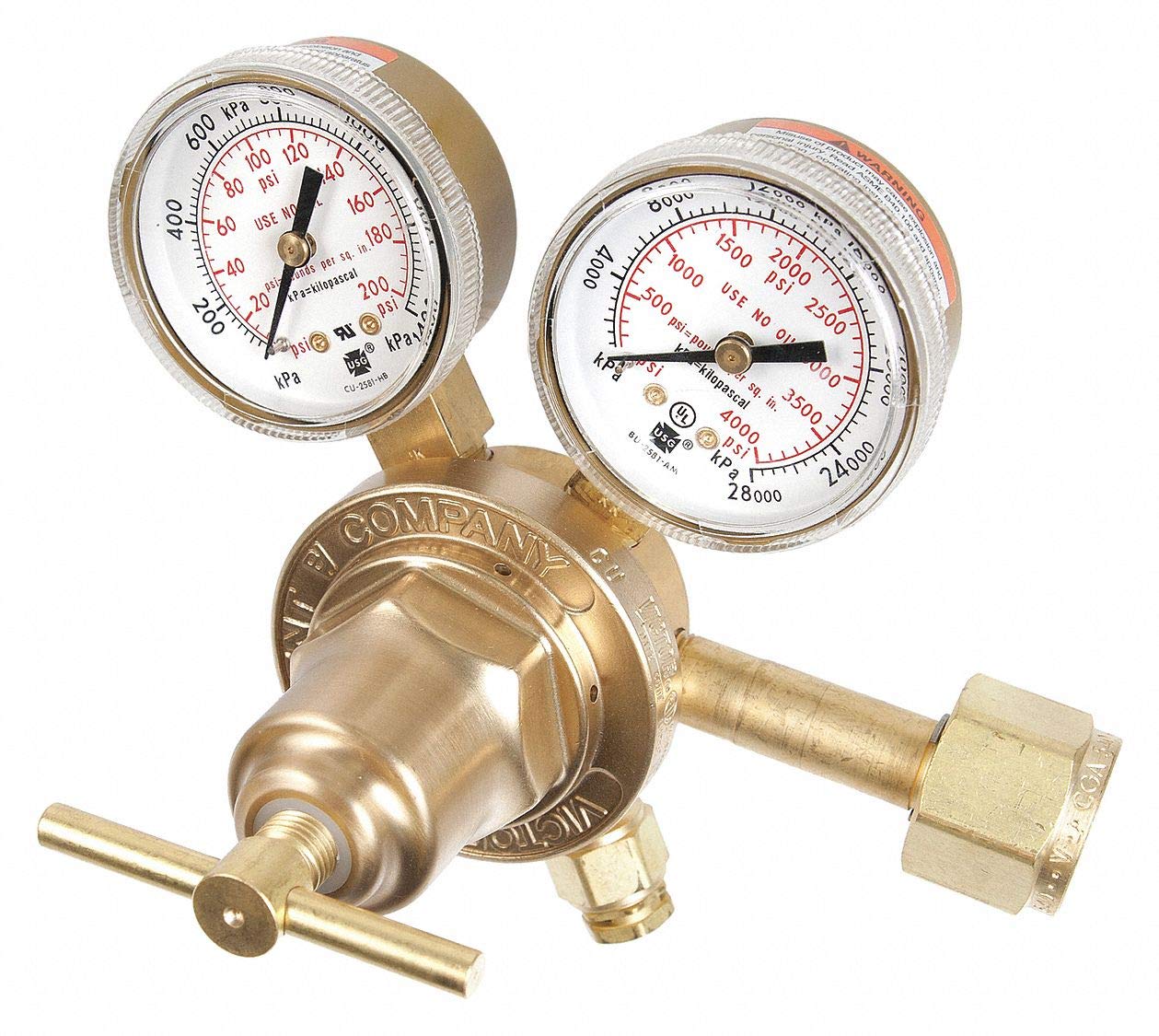

Victor 0781-0098 Professional Single Stage Regulator

Product Description

The Victor 0781-0098 is a professional single-stage gas regulator designed for medium capacity applications. It features an external self-reseating relief valve suited for various gas types, including liquefied propane and propylene. This model can deliver a pressure range of four to eighty PSIG and is built to withstand a maximum inlet pressure of three hundred fifty PSIG. An electro-less nickel-plated bronze sintered inlet filter enhances its reliability.

• Delivery Range: 4-80 PSIG
• Max Inlet Pressure: 350 PSIG
• Outlet Connection Size: 9/16 - 18 M LH

Product Highlights

This gas regulator is ideal for general purpose applications where precise control of gas pressure is required. It is suitable for use with liquefied propane and features a durable brass body with a neoprene diaphragm.

Product Information

Standard Information

• Brand: Victor
• Model/MPN: 0781-0098
• Country of Origin: Mexico

Technical Specifications

• Number of Stages: Single Stage
• CGA Inlet Connection: 510
• Flow Coefficient: 0.109
• Body Material: Brass
• Overall Depth: 4.25 inches
• Overall Width: 6.38 inches
• Overall Height: 5.13 inches
• Max. Inlet Pressure: 3,000 PSIG
• Max Gauge Outlet Pressure: 400 PSIG
• Compatible Gas Types: Propane, Propylene
• Delivery Pressure Range: 4 to 80 PSIG
