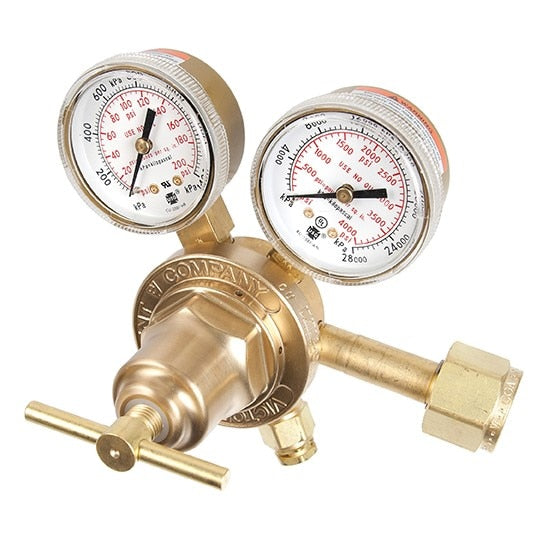

Victor 0781-0061 Medical Oxygen Regulator Single Stage

Product Description

The VICTOR 0781-0061 is a medium-duty, single-stage medical oxygen regulator designed for use in medical gas distribution systems. Built around a manifold connection inlet, this regulator reduces high-pressure cylinder or manifold supply down to a controlled working pressure suitable for medical oxygen service. Weighing 2.2 pounds and measuring 7 inches long by 7.6 inches wide by 6.4 inches tall, it is a compact unit suited for wall-mounted manifold installations. Installation and service is typically performed by licensed medical gas technicians or qualified pipefitters operating under NFPA 99 and applicable state medical gas codes.

This regulator is intended for medical oxygen gas service in healthcare and clinical settings. It is rated for manifold connection configurations and is sold individually. The SR250-300-AM model designation applies to this unit. Typical applications include centralized oxygen supply manifolds in hospitals, clinics, surgical centers, and other medical facilities where a reliable, regulated oxygen supply is required.

Key Features

• Rated for medical oxygen gas service
• Single-stage pressure regulation for consistent outlet pressure
• Medium-duty construction suited for manifold supply systems
• Manifold connection inlet configuration
• Compact form factor at 7 inches x 7.6 inches x 6.4 inches
• Sold individually as a direct replacement or new-install unit

Compatibility

Designed for medical oxygen manifold systems where a single-stage, medium-duty regulator with manifold connection is specified. Verify inlet connection type and outlet pressure range against system requirements before installation.

Installation Notes

Medical oxygen regulators must be installed by personnel certified in medical gas systems in accordance with NFPA 99 and all applicable local codes. Shut off and bleed down the supply manifold before removing or installing any regulator. Use only tools and fittings that are clean and rated for oxygen service — never use thread sealants, lubricants, or pipe dopes that are not explicitly approved for oxygen use, as contamination creates a serious fire and explosion hazard.

Technical Specifications

• Gas Service: Medical Oxygen
• Stage: Single Stage
• Duty Rating: Medium Duty
• Connection Type: Manifold Connection
• Length: 7 inches
• Width: 7.6 inches
• Height: 6.4 inches
• Weight: 2.2 pounds
• Model: SR250-300-AM
• UPC: 716352360418

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0781-0061
