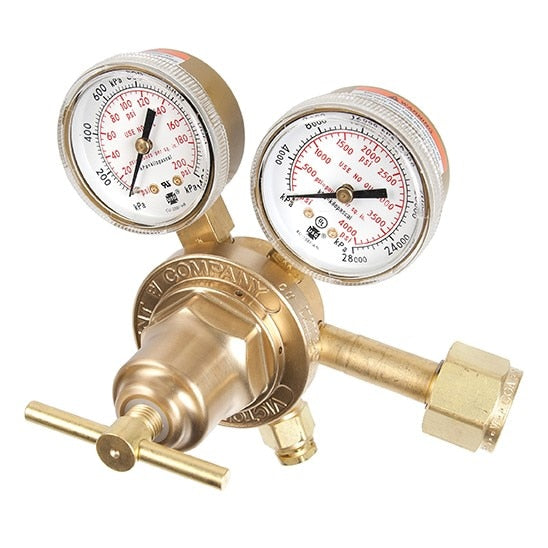

Victor 0781-0043 Regulator Medium-Duty Single Stage Oxygen Gas

Product Description

The Victor 0781-0043 is a medium-duty single stage oxygen gas regulator designed for use in various applications. This regulator offers a delivery range of five to one hundred twenty-five psig, making it suitable for medium to large cylinders. Its robust construction features a die-forged brass body that enhances strength and durability.

• Maximum inlet pressure of three thousand psig.
• Two brass gauges providing a four thousand psig inlet range and two hundred psig outlet range.
• Precision-machined nozzle for optimal flow control.

Product Highlights

The regulator includes a fabric reinforced neoprene diaphragm that ensures long-lasting service while maintaining accurate performance. It features an adjusting screw for user convenience and is pretested for quality assurance.

Product Information

Standard Information

• Type: Medium-Duty
• Number of Stages: Single Stage
• Gas Type: Oxygen
• Inlet Connection: CGA-540
• Outlet Type: 9/16-18 UNF (RH Male)

Technical Specifications

• Weight: 3.2 lbs
• Dimensions: 6.38 x 4.25 x 5.13 inches
• Flow Coefficient: 0.109 Cv
• Inlet Gauge Range: 4000 psig
• Outlet Gauge Range: 200 psig
