Product Description

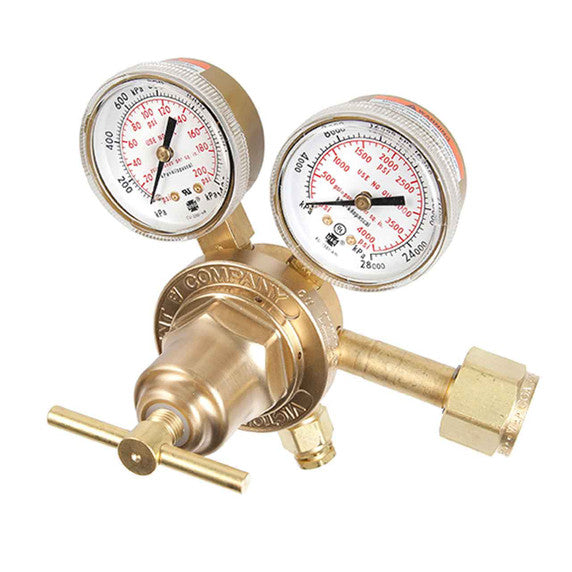

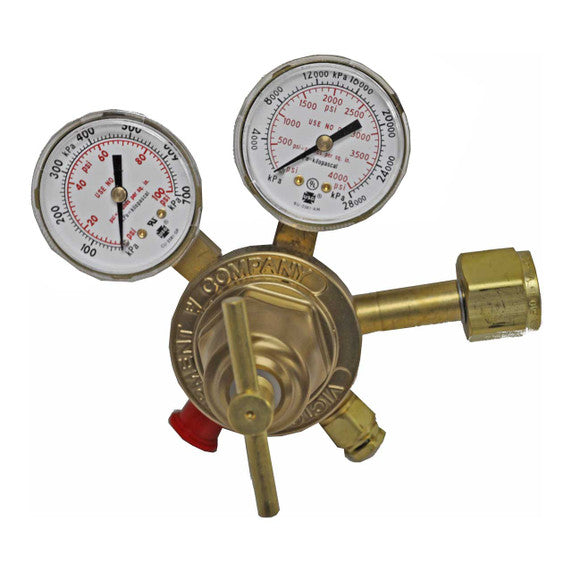

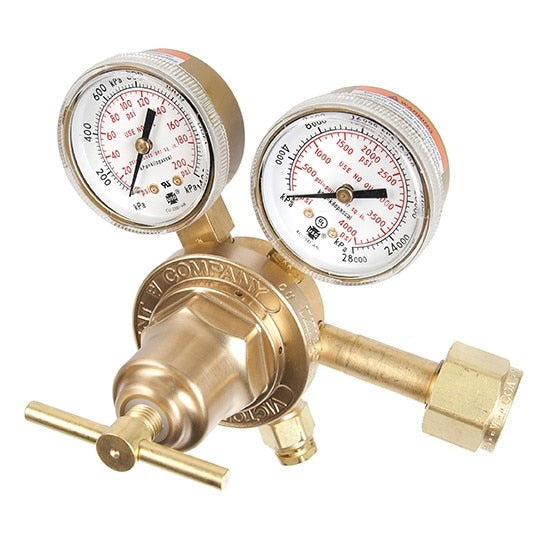

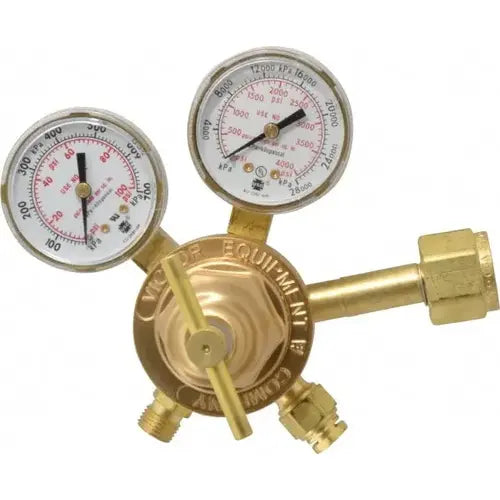

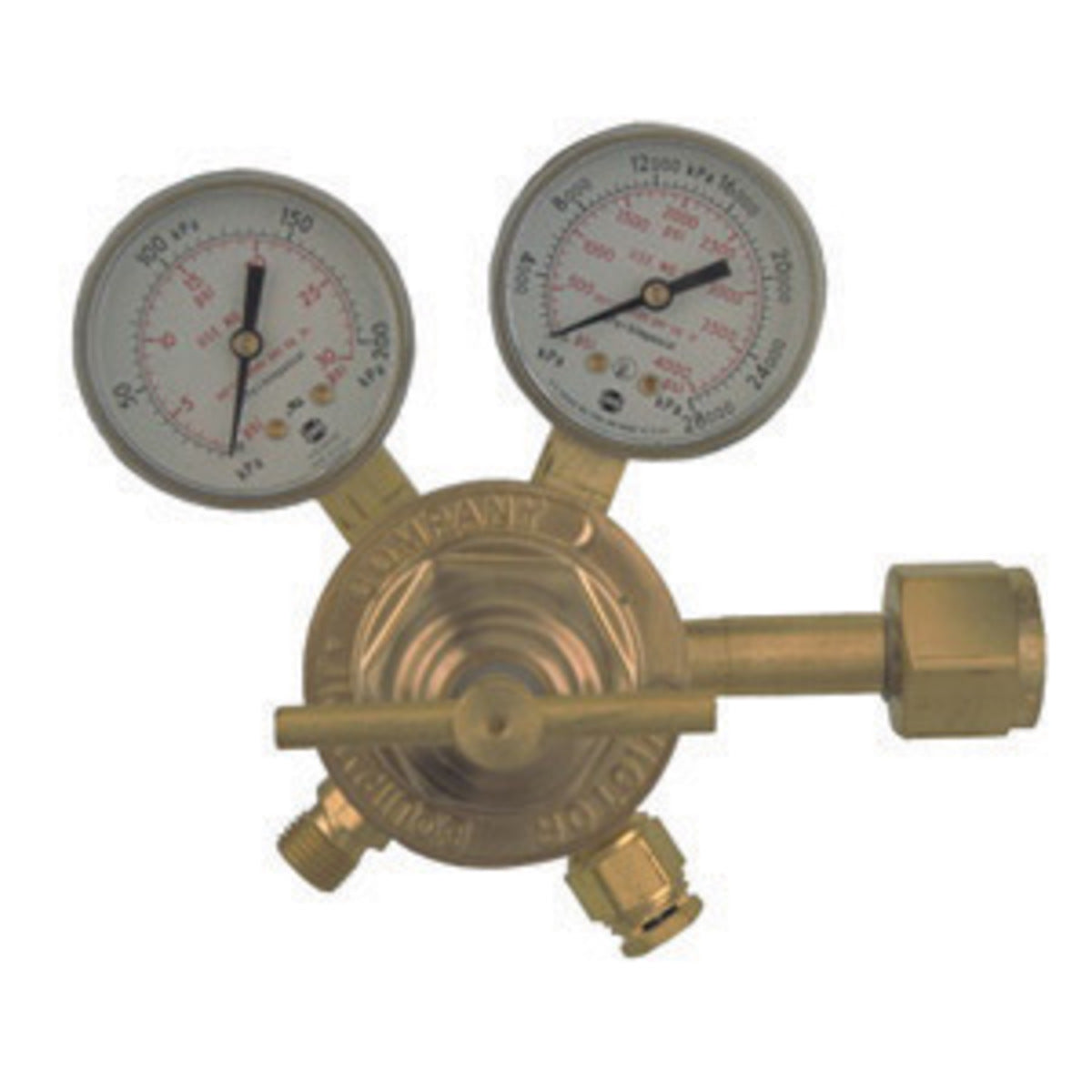

The VICTOR 0781-0027 SR 250 Series single-stage medium-duty oxygen regulator offers a 4 - 80 psig delivery range, ideal for medium applications and medium to large cylinders. It features a die-forged brass body for strength and durability and 2" brass gauges with a 4000 inlet gauge range and 100 outlet gauge range. The regulator has a 540 CGA inlet connection and a 9/16"-18 RH(M) outlet connection.
- Die-forged brass body for strength and durability
- 2" brass gauges
- 1 3/4" fabric reinforced neoprene diaphragm
Product Highlights
This single-stage regulator is designed for medium to high capacity, providing precise and long-lasting service for welding and gas applications.
Product Information
Standard Information
-
Brand: VICTOR
-
Manufacturer Part Number: 0781-0027
-
Country of Origin: MX
Technical Specifications
-
MPN: 0781-0027
-
Manufacturer: ESAB
-
Brand: Victor
-
ProductCategory: Welding & Gas Supplies
-
ProductSegment: Gas Apparatus
-
ProductLine: Regulators
-
Inlet Connection: CGA-540
-
Outlet Type: 9/16-18 UNF (RH Male)
-
Gas Type: Oxygen
-
Number of Stages: Single Stage
-
Type: Medium-Duty
-
Delivery Pressure Range: 4 to 80 psi
-
Max. Inlet Pressure: 3,000 psi
-
Body Material: Brass
-
Diaphragm Material: Neoprene
-
CGA Number: CGA 540
-
Application: General Purpose
-
Body Diameter: 2.5 in
-
Overall Depth: 4.25 in
-
Overall Width: 6.38 in
-
Gauge Diameter: 2 in
-
Overall Height: 5.13 in
-
Outlet Connection: 9/16"-18 M RH
-
Regulator Capacity: Medium Duty
-
Inlet Pressure (Maximum): 3,000 psig
-
Outlet Pressure (Maximum): 80 psig
-
Outlet Pressure (Minimum): 4 psig
-
Inlet Connection Size: 0.825"-14
-
Inlet Connection Type: NGO
-
Inlet Thread Direction: Right Hand
-
Outlet Connection Size: 9/16"-18
-
Outlet Connection Type: UNF
