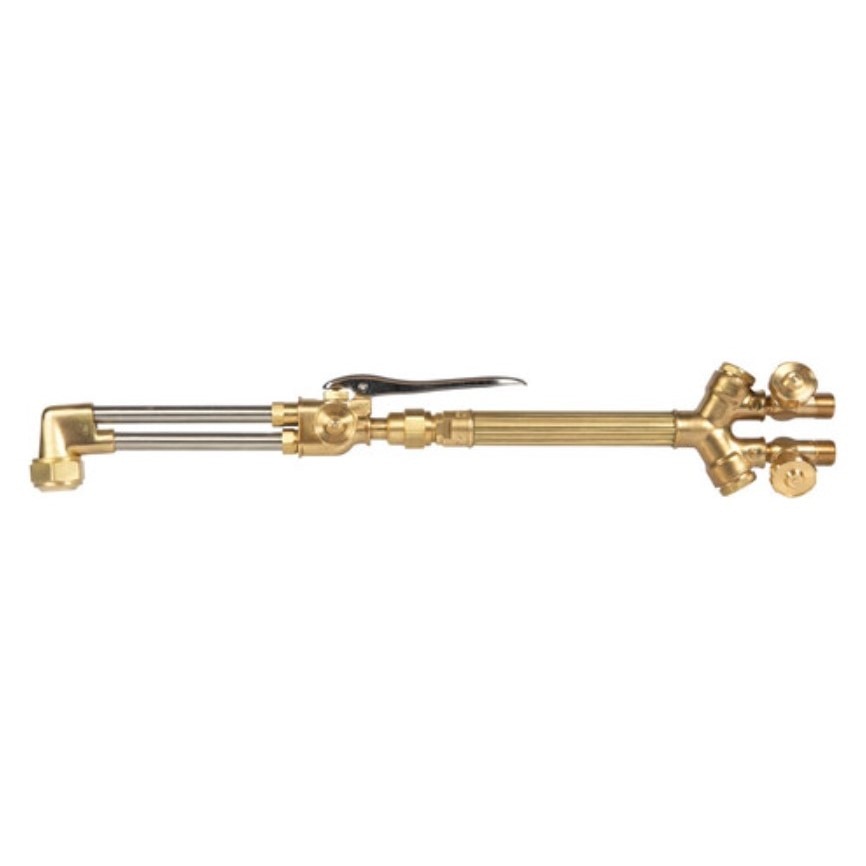

Victor 0387-0200 Medium Duty Torch Handle Combo

Product Description

The VICTOR 0387-0200 is a medium duty torch handle combination kit designed for cutting, heating, brazing, and welding applications. The kit includes a torch handle with built-in check valves and flash arrestors, plus a cutting attachment compatible with all fuel gases when fitted with the appropriate tip. The forged brass head is angled at 90 degrees for ergonomic positioning, and cutting capacity reaches up to 5 inches with optional tips. This combo is used by welders, pipefitters, and HVAC technicians who need a single versatile rig for multi-process gas work on medium duty jobs.

The 0387-0200 is suited for residential and light commercial service work where a single torch setup must handle multiple processes without switching equipment. Typical applications include copper pipe brazing on HVAC and plumbing installations, localized heating for bending or loosening fittings, oxy-fuel cutting of plate and structural material up to 5 inches, and fusion or filler welding on mild steel. The combo format reduces setup time when moving between processes on the same job site.

Key Features

• Forged brass head construction for durability and long service life
• 90 degree head angle for improved access and operator comfort
• Cutting capacity up to 5 inches with optional tips
• Cutting attachment compatible with all fuel gases when used with the correct tip
• Built-in check valves and flash arrestors in the torch handle for added safety
• Medium duty performance rating suitable for a range of field and shop tasks

Compatibility

The 0387-0200 is the CA270 cutting attachment and WH270 torch handle combination, designed for use with all fuel gases when fitted with the appropriate tips for each process.

Installation Notes

Installation and operation of oxy-fuel equipment should be performed by a qualified welder or gas technician familiar with applicable safety codes including CGA and NFPA 51 guidelines. Always shut off both oxygen and fuel gas supplies and bleed the hoses before connecting or disconnecting any torch components. Inspect all fittings, hoses, and seats for damage or contamination before lighting, and verify that the built-in flash arrestors are free of obstruction. Never use oil or grease on any oxygen-side fittings or connections.

Technical Specifications

• Cutting Capacity: up to 5 inches with optional tips
• Head Angle: 90 degrees
• Head Material: Forged brass
• Length: 15.5 inches
• Width: 7.5 inches
• Height: 4.5 inches
• Weight: 1.85 pounds
• Unit of Measure: Each

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0387-0200
