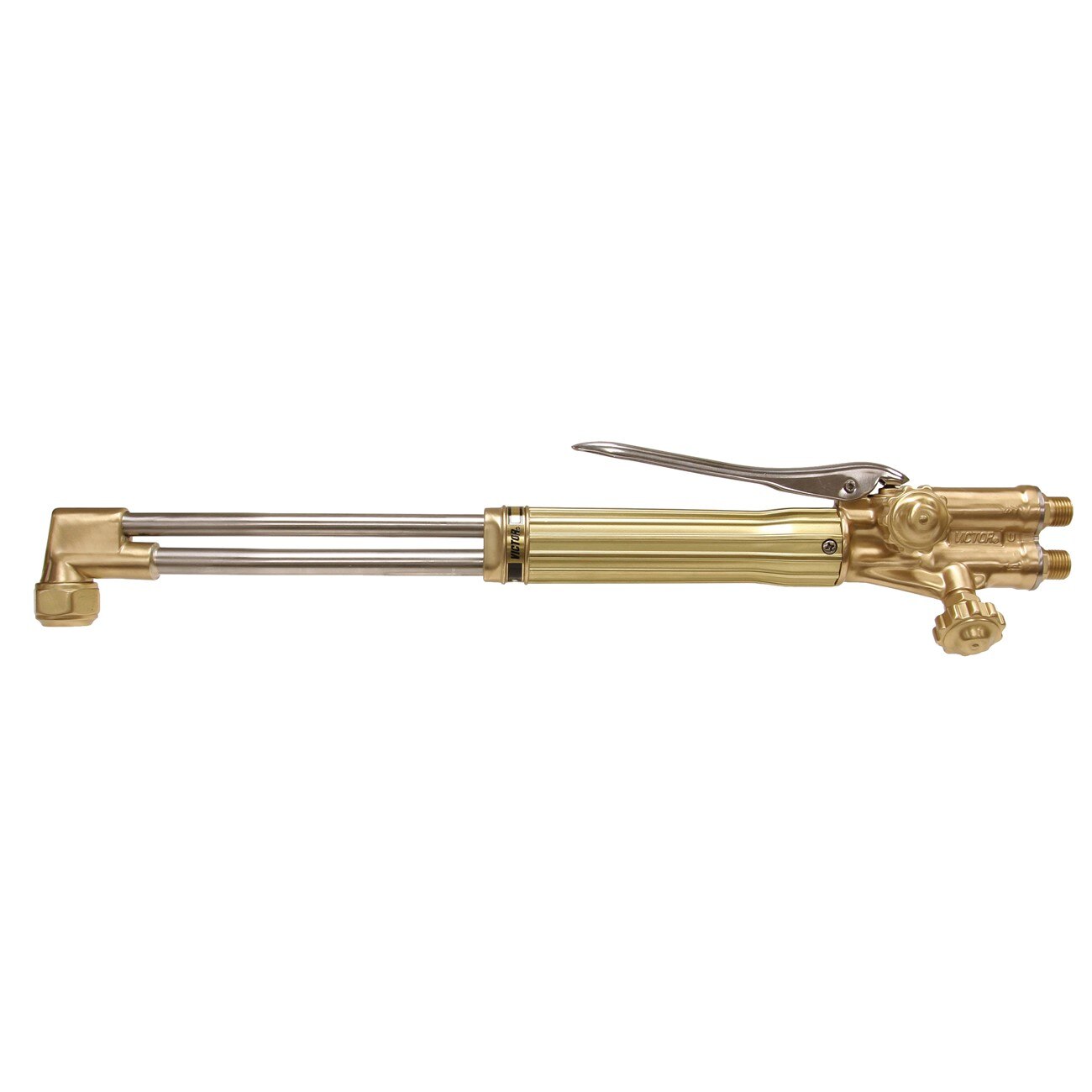

Victor 0381-1722 Bulldoga HC1131C H1 Cutting Torch 48 in

Product Description

The VICTOR 0381-1722 Bulldoga HC1131C is a high-capacity, straight-body cutting torch built for heavy industrial and structural cutting work. At 48 inches overall length, the torch gives operators extended reach on large workpieces without sacrificing control. The low-profile head and lightweight construction reduce fatigue during long cutting runs, while the overall build is engineered to handle the demands of continuous heavy-duty use. Reverse flow check valves are installed at the inlet connection. The HC1131C does not include built-in flashback arrestors, which is standard for torches in this class where external inline arrestors are preferred. Tip seating follows the Harris style, giving shops flexibility in tip selection.

This torch is designed for industrial and general fabrication environments, including structural steel fabrication. It is suited for oxy-fuel cutting setups where a full-length straight torch is required for flat plate, beam, or structural section work. The 48-inch overall length makes it a practical choice for cutting tables, large structural assemblies, and applications where the operator needs to maintain distance from the cut zone. Skilled welders, pipefitters, and ironworkers are the primary users in plant and field settings.

Key Features

• 48-inch overall length provides extended reach for heavy cutting applications
• Low-profile head design reduces operator fatigue during sustained use
• Lightweight but durable construction built for high-capacity cutting demands
• Reverse flow check valves installed at inlet connections
• Harris style tip seat for broad tip compatibility
• Fully conforms to ISO standard EN ISO 5172

Compatibility

Designed as an OEM-style oxy-fuel cutting torch compatible with Harris style cutting tips. No specific model or system compatibility data was provided beyond the tip seat standard noted above.

Installation Notes

Installation and setup should be performed by a qualified welder or gas equipment technician familiar with oxy-fuel systems. Shut off all cylinder valves and bleed both hoses before connecting or disconnecting the torch. Verify hose connections, check valves, and fittings for leaks using an approved leak-detection solution before lighting. Follow applicable shop safety codes and manufacturer guidelines for oxy-fuel equipment handling and storage.

Technical Specifications

• Overall Length: 48 inches
• Weight: 6.3 pounds
• Tip Seat Style: Harris style
• Flashback Arrestors: Not included; reverse flow check valves at inlet
• Standard Compliance: EN ISO 5172
• UPC: 716352541442

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0381-1722
