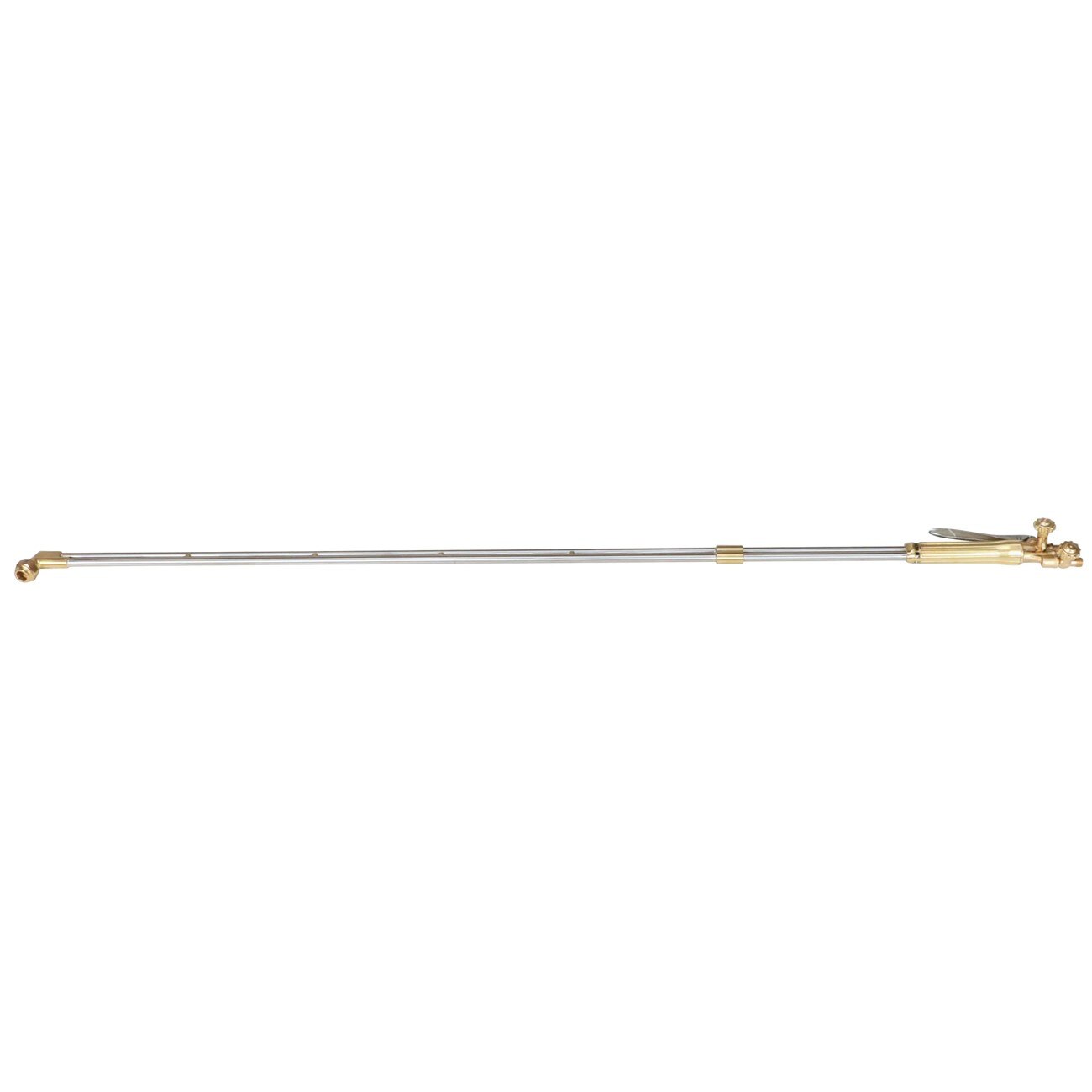

Victor 0381-1415 Straight Cutting Torch 180 Degree Head Angle

Product Description

The VICTOR 0381-1415 is a heavy-duty straight cutting torch from the HC 1200C Series, built for high-demand industrial cutting applications. It features a 180-degree head angle and an overall length of 48 inches, providing the reach and clearance needed for demanding work. The torch delivers a cutting capacity of up to 18 inches of steel and accepts any fuel gas operating at 2 PSIG or above, making it compatible with acetylene, propane, natural gas, and similar fuel gases. A universal mixer and reverse flow check valves are built in as standard. This torch is intended for use by experienced welding and cutting professionals in mill, foundry, scrapping, and demolition environments.

The 0381-1415 is suited for heavy industrial applications where thick material removal, structural demolition, or foundry scrapping requires extended reach and reliable performance under continuous use. The 48-inch body keeps the operator at a safe working distance from the workpiece. The torch accepts Series 1 cutting tips, which are widely used in heavy industrial settings. The 9/16-inch 18 hose connections provide a secure, standard-size fit to compatible fuel and oxygen hoses. Extra length models are available from the manufacturer on request for applications requiring additional reach.

Key Features

• 180-degree head angle for straight cutting geometry on heavy stock
• Cutting capacity up to 18 inches of steel
• Universal mixer accommodates any fuel gas at 2 PSIG and above
• Reverse flow check valves provide a standard layer of backflow protection
• Uses Series 1 cutting tips for heavy industrial work
• 9/16-inch 18 hose connections for secure hose attachment

Compatibility

Compatible with any fuel gas operating at 2 PSIG and above, including acetylene and alternate fuel gases. Accepts Series 1 cutting tips. Connects to standard 9/16-inch 18 oxygen and fuel hoses.

Installation Notes

This torch should be installed and operated by a qualified welding or cutting professional familiar with oxyfuel equipment and applicable safety codes. Verify that all hose connections are leak-free before igniting the torch. Always shut off both oxygen and fuel gas supplies at the source before attaching or removing tips or hoses. Do not use oil or grease on any fitting, valve, or connection on this torch.

Technical Specifications

• Head Angle: 180 degrees
• Body Length: 48 inches
• Maximum Cutting Capacity: 18 inches
• Minimum Fuel Gas Pressure: 2 PSIG
• Hose Connection: 9/16 inches - 18
• Tip Series: Series 1
• Weight: 7.05 pounds
• Overall Length (Packaged): 54.75 inches
• UOM: Each
• UPC: 716352486705

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0381-1415
