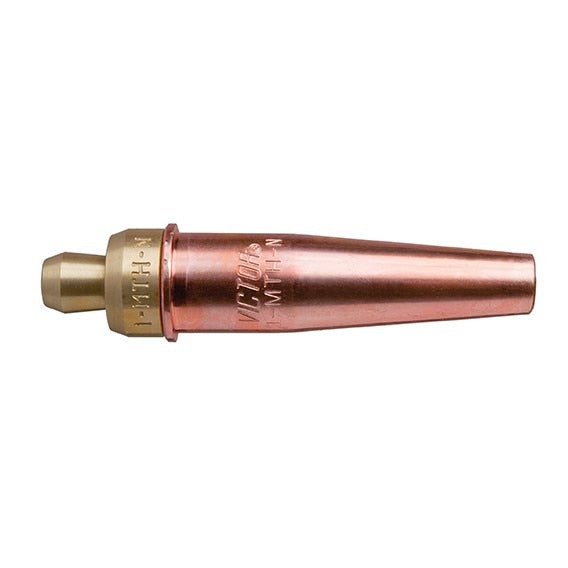

Victor 0333-0363 Machine Cutting Tip Size 00 Propane

Product Description

The VICTOR 0333-0363 is a Size 00 high-speed machine cutting tip designed for use with propane and natural gas fuel systems. Constructed from brass, this Type MTHN tip is built for automated and machine-guided cutting operations where consistent kerf quality and cutting speed are critical. It handles metal up to 3/8 inches thick and delivers cutting speeds of 22 to 29 inches per minute (ipm). Cutting oxygen pressure runs 85 to 95 psig, with preheat oxygen pressure at 30 to 35 psig and fuel gas pressure at 8 oz or greater. The tip is sold individually and weighs 0.19 pounds.

This cutting tip is suited for industrial and general fabrication, structural steel fabrication, light fabrication, and repair and maintenance work. It is intended for machine cutting torch setups running propane or natural gas as the fuel source, where high-speed, repeatable cuts are required across production or job-site environments. The Type MTHN designation identifies it as a high-speed machine cutting tip configuration matched to those fuel types.

Key Features

• Designed for high-speed machine cutting at 22 to 29 ipm
• Rated for metal thickness up to 3/8 inches
• Compatible with propane and natural gas fuel systems
• Cutting oxygen pressure range: 85 to 95 psig
• Preheat oxygen pressure range: 30 to 35 psig
• Brass construction for durability and consistent gas flow

Compatibility

Designed as an OEM-style replacement cutting tip for VICTOR machine cutting torches configured for propane or natural gas fuel, Type MTHN series.

Installation Notes

Installation should be performed by a qualified welder or cutting equipment technician familiar with oxy-fuel system assembly. Shut off all gas supplies and depressurize the torch before removing or installing a cutting tip. Hand-tighten the tip securely and verify all connections for leaks before igniting. Follow applicable OSHA and compressed gas safety guidelines when operating high-pressure oxy-fuel cutting equipment.

Technical Specifications

• Tip Size: 00
• Tip Type: MTHN High Speed Machine Cutting
• Fuel Gas Type: Propane, Natural Gas
• Material: Brass
• Metal Thickness Capacity: 3/8 inches
• Cutting Speed: 22 to 29 ipm
• Cutting Oxygen Pressure: 85 to 95 psig
• Preheat Oxygen Pressure: 30 to 35 psig
• Fuel Gas Pressure: 8 oz or greater psig
• Total Oxygen Consumption: 68 to 75 cfh
• Total Preheat Oxygen Consumption: 23 to 140 cfh
• Total Fuel Gas Consumption: 12 to 65 cfh
• Length: 3.2 inches
• Width: 0.8 inches
• Height: 0.7 inches
• Weight: 0.19 pounds
• Sold As: Each

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0333-0363
