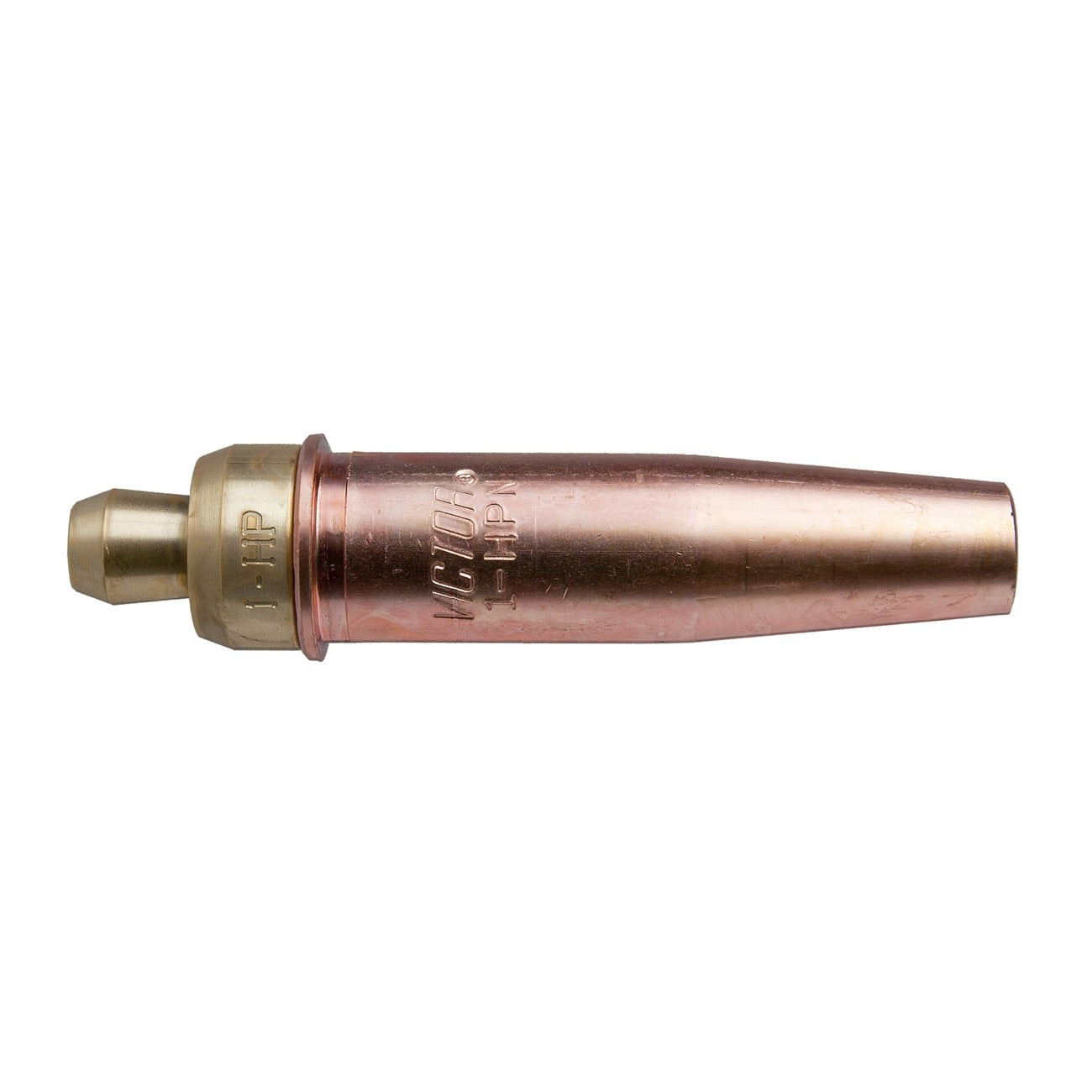

Victor 0333-0323 Cutting Tip Size 1 Propane Natural Gas

Product Description

The VICTOR 0333-0323 is a Type HPN cutting tip designed for propane and natural gas fuel systems requiring heavy preheat output. Size 1, it delivers cutting speeds of 15 to 20 inches per minute with cutting oxygen pressure ranging from 30 to 35 psig and fuel pressure of 3 to 6 psig. Preheat oxygen flow runs 44 to 240 SCFH depending on operating conditions. Constructed from brass, this tip threads into compatible VICTOR cutting attachments and handles the heat output demands of thick-section scrap cutting, bevel cutting, and other heavy preheat applications. Licensed welding and cutting professionals are the primary users.

This tip is suited for industrial and general fabrication environments, repair and maintenance shops, structural steel fabrication, and light fabrication work. Its Type HPN designation indicates it is optimized for higher preheat volumes, making it appropriate when material thickness or surface condition demands more thermal input before the cut oxygen stream is opened. Typical installations include hand-cutting torches operated in fixed shops or in-field structural steel work.

Key Features

• Type HPN design optimized for heavy preheat scrap, bevel, and high-demand cutting operations
• Cutting speed: 15 to 20 inches per minute
• Cutting oxygen pressure: 30 to 35 psig
• Fuel pressure: 3 to 6 psig
• Preheat oxygen flow: 44 to 240 SCFH
• Brass construction for durability and heat resistance

Compatibility

Designed as an OEM-style replacement cutting tip for propane and natural gas cutting torch assemblies requiring a Size 1 HPN-style tip.

Installation Notes

Installation should be performed by a qualified welding or cutting professional familiar with oxyfuel system assembly. Always close all cylinder valves and bleed the lines before removing or installing a cutting tip. Use an appropriate tip wrench to seat the tip snugly — do not overtighten by hand or with pliers, as this can damage the seating surface. Verify all connections for leaks with an approved leak-detection solution before igniting the torch.

Technical Specifications

• Tip Size: 1
• Tip Type: HPN
• Fuel Gas: Propane, Natural Gas
• Cutting Speed: 15 to 20 inches per minute
• Cutting Oxygen Pressure: 30 to 35 psig
• Fuel Pressure: 3 to 6 psig
• Preheat Oxygen Flow: 44 to 240 SCFH
• Material: Brass
• Length: 3.3 inches
• Width: 0.8 inches
• Height: 0.8 inches
• Weight: 0.2 pounds

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0333-0323
