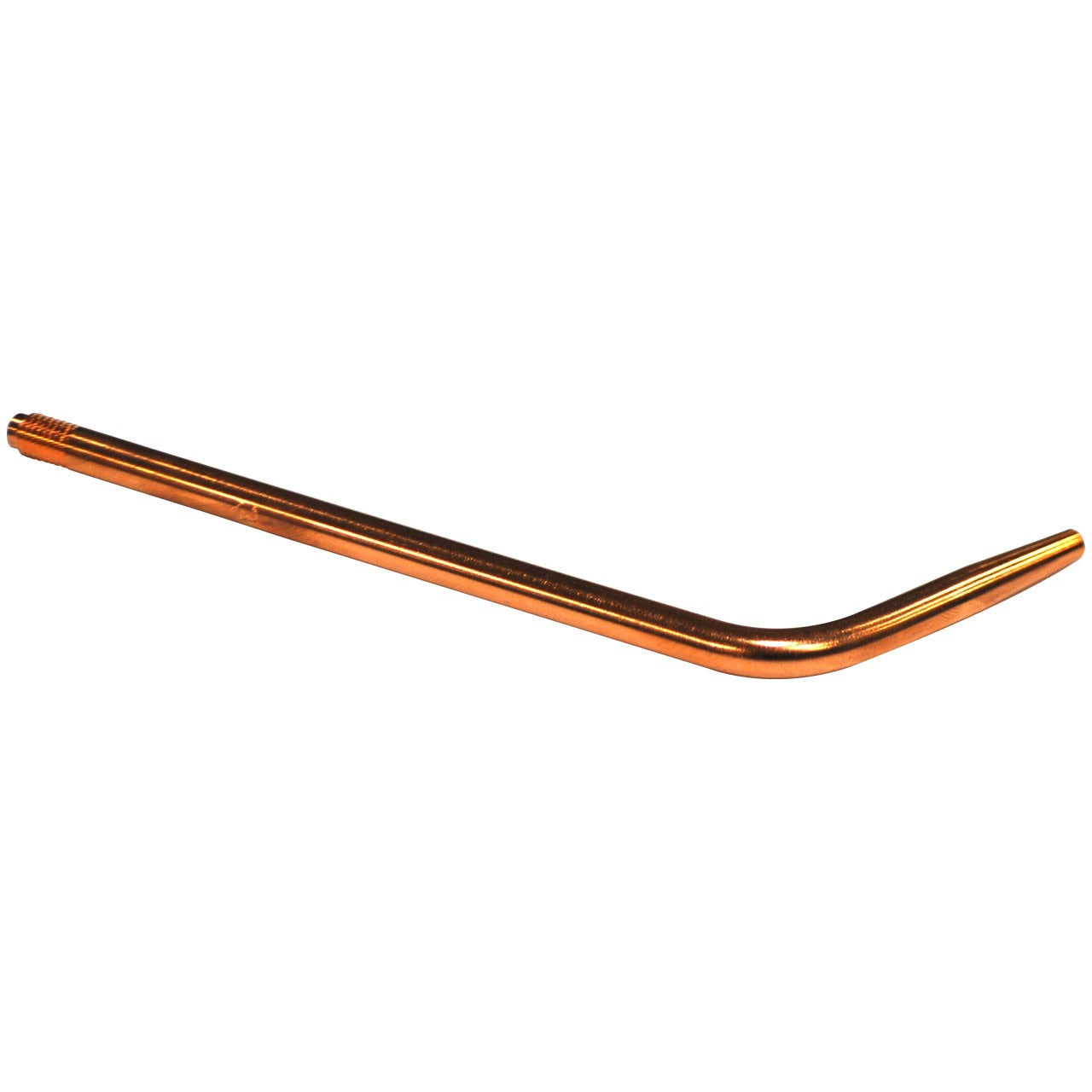

Victor 0311-0128 3-W-J Elbow Tip Acetylene Hydrogen

Product Description

The VICTOR 0311-0128 is a 3-W-J ET Series one-piece copper elbow tip designed for oxy-fuel welding and cutting torches. It features a long cone flame profile suited for precise heat application in welding operations. The tip integrates a spiral mixer that delivers consistent flame characteristics across the full operating range. A brass coupling nut with a built-in snap ring protects the cone end, and a double o-ring seal provides a gas-tight connection without requiring a wrench. Every Victor nozzle assembly undergoes 100% flame testing before leaving the factory. Licensed welders and certified oxy-fuel technicians are the primary installers of this tip.

The 0311-0128 elbow tip is designed for use with Victor 300 Series torch handles. The ET Series elbow design is well suited for welding applications where a straight tip would create clearance issues or awkward torch angles. Compatible fuel gases are acetylene and hydrogen, making this tip appropriate for general welding, brazing, and heat-forming tasks in fabrication shops, maintenance facilities, and field service environments. It is sold as a single tip per package.

Key Features

• One-piece copper construction for durability and consistent heat transfer
• Long cone flame profile for precise heat application
• Individual spiral mixer for optimum flame characteristics
• Brass coupling nut with built-in snap ring protects the cone end
• Double o-ring seal creates a gas-tight connection without a wrench
• 100% flame tested at the factory to verify performance

Compatibility

Designed for use with Victor 300 Series torch handles. Compatible fuel gases are acetylene and hydrogen.

Installation Notes

Installation of oxy-fuel torch tips should be performed by qualified welders or oxy-fuel technicians familiar with compressed gas safety. Always close and purge both the oxygen and fuel gas supply valves before changing tips. Thread the coupling nut hand-tight only; the double o-ring design provides the gas-tight seal without additional wrench torque. Check all connections for leaks with an approved leak-detection solution before igniting the torch.

Technical Specifications

• Series: ET Series Elbow Tip
• Tip Model: 3-W-J
• Construction: One-piece copper
• Flame Profile: Long cone
• Compatible Fuel Gases: Acetylene, Hydrogen
• Sealing: Double o-ring, no wrench required
• Package Quantity: 1

Standard Information

• Brand: VICTOR
• Manufacturer Part Number: 0311-0128
