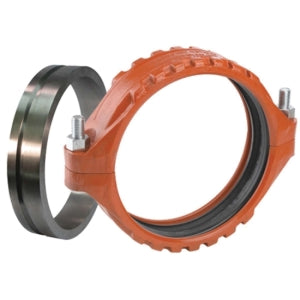

Victaulic W200077PE1 AGS Style W77 Orange Enamel Painted Ductile Iron Flexible Coupling With Grade E Gasket 20 IN

Product Description

The Victaulic W200077PE1 AGS Style W77 is a flexible coupling made from ductile iron. It features a grooved connection type and comes with a Grade E gasket. This coupling is designed for use in plumbing applications where flexibility and durability are required.

• Wedge-shaped key profile allows for easy assembly.
• Constructed from ASTM A536 Grade 65-45-12 ductile iron.
• Maintains maximum pressure of 350 PSI.

Product Highlights

This coupling provides limited linear and angular movement at the pipe joint, accommodating thermal growth and other applications needing flexibility.

Product Information

Standard Information

• Brand: Victaulic
• Material: Ductile Iron

Technical Specifications

• Nominal Size: 20 IN
• Length: 27.13 IN
• Maximum Pressure: 350 PSI
• Width: 4-1/2 IN
• Outside Diameter: 22.63 IN
• End Load: 113880 LB Maximum
• Bolts/Nuts: (2) 1-1/8 X 5-1/2 IN
• Allowable Pipe End Separation: 0.13 - 0.31 IN
